Can't Adjust Pedals

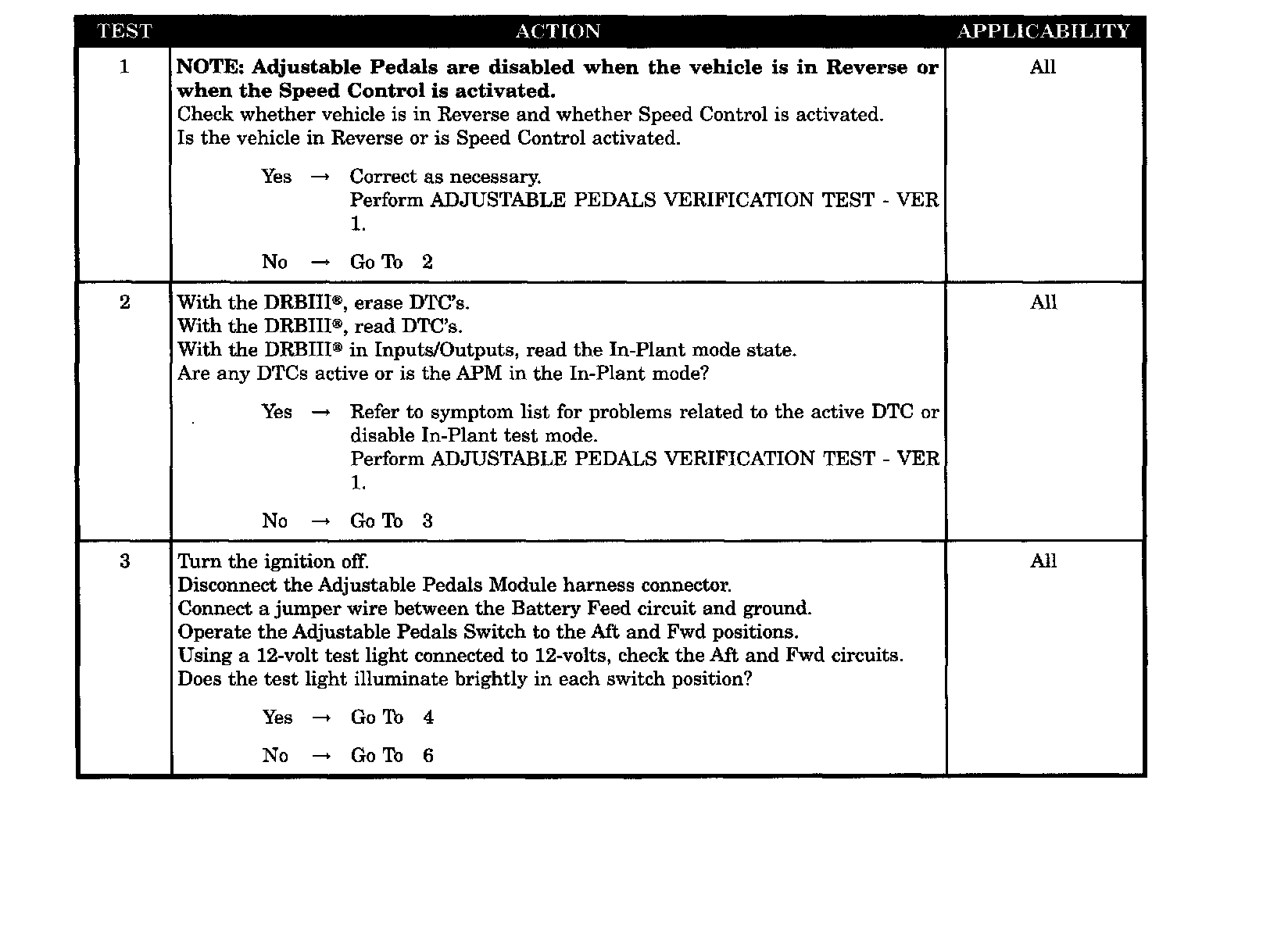

Test 1 - 3

�^�D:

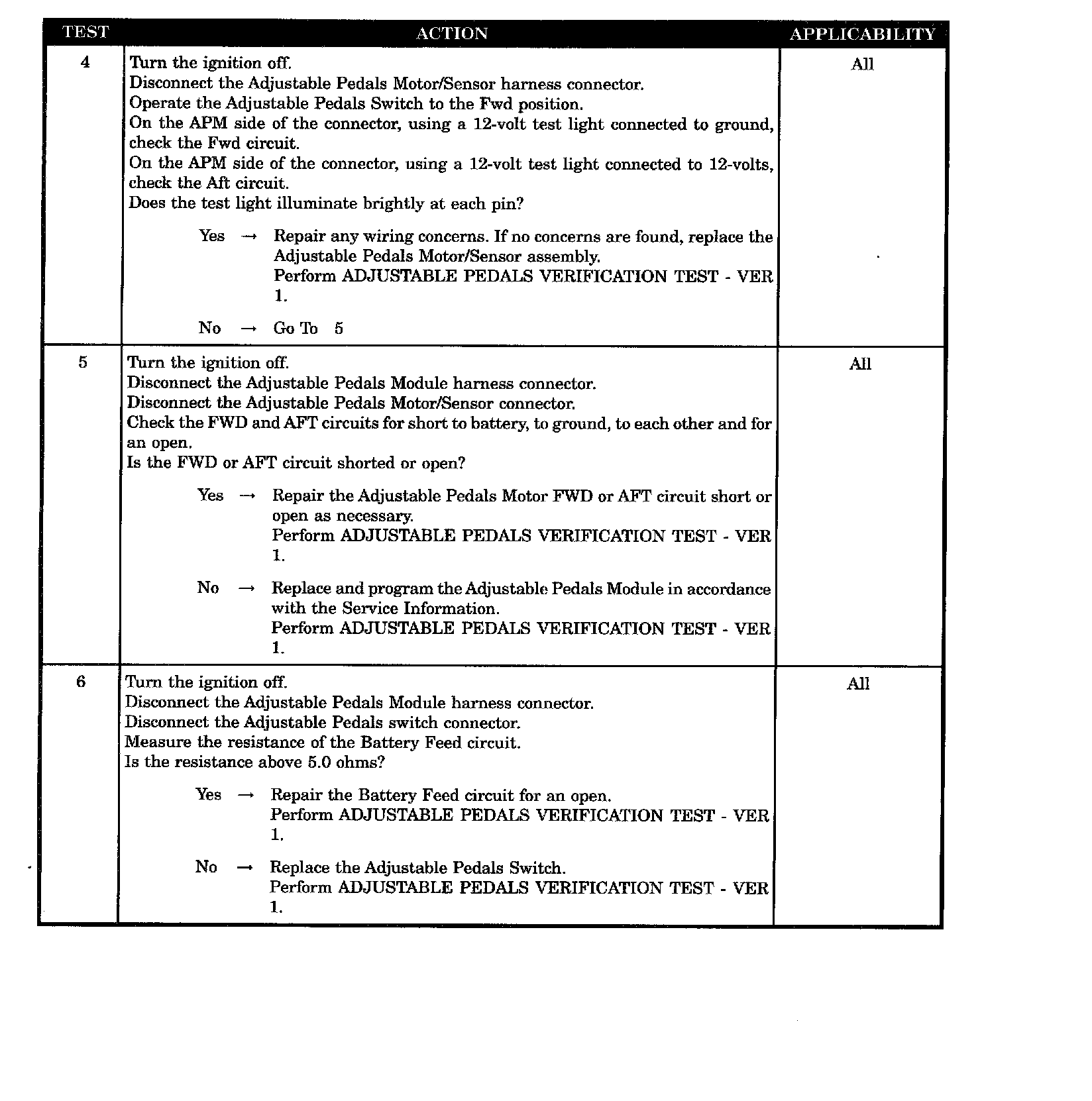

Test 4 - 6

SYMPTOM
CAN'T ADJUST PEDALS

POSSIBLE CAUSES
- Vehicle in cruise or reverse
- DTC or in-plant mode active
- Motor/sensor assembly
- Motor FWD or aft circuit shorted or open
- Battery feed circuit open
- Adjustable pedals module internal fault
- Adjustable pedals switch open
