P2701

SYMPTOM
P2701 - INADEQUATE ELEMENT VOLUME 2C

WHEN MONITORED

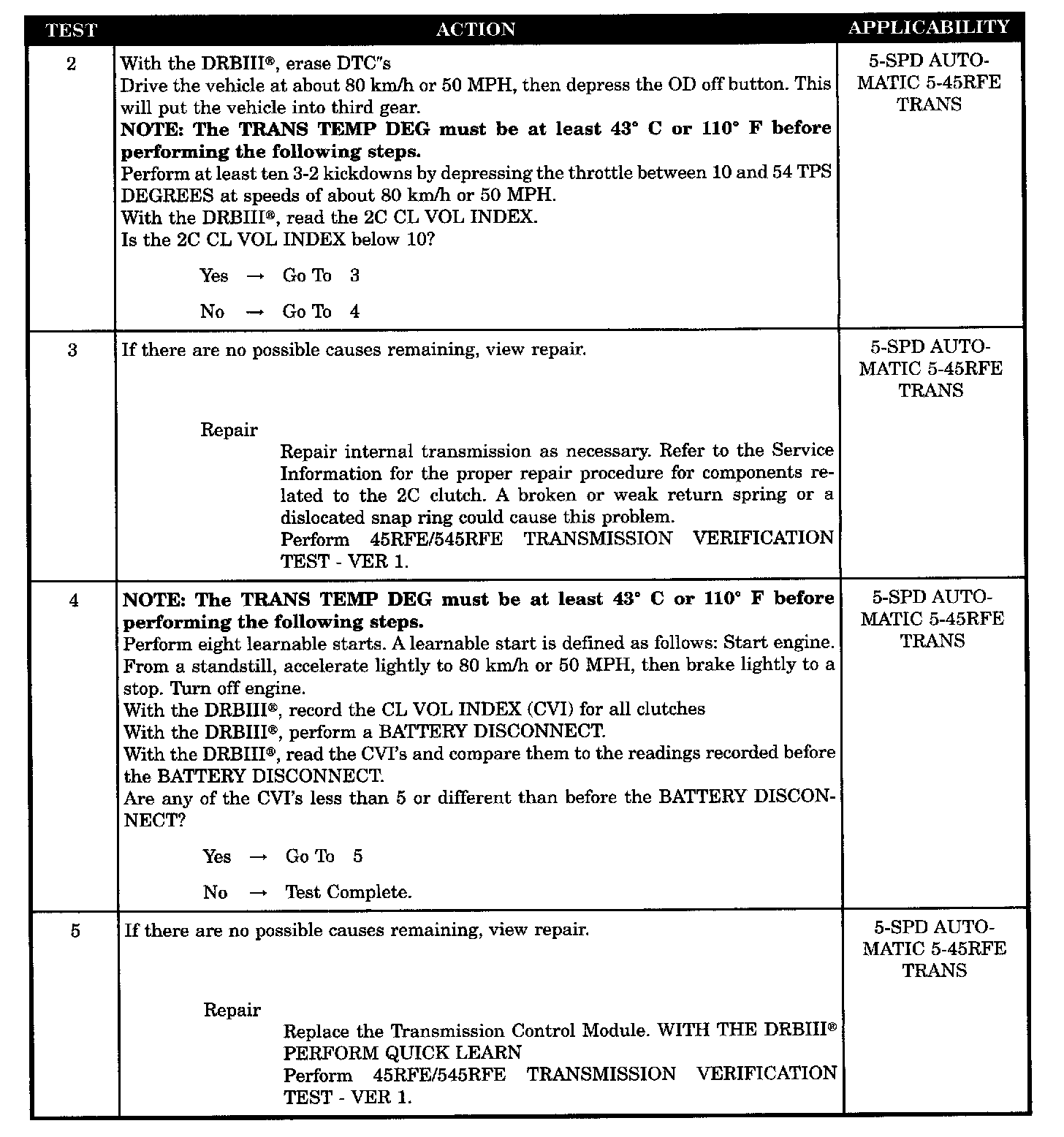

Whenever the engine is running. The 2C volume is updated during a 3 - 2 kickdown with throttle angle between 10 and 54 degrees. Trans temp must be at least 43 °C (110 °F).

SET CONDITION
When the 2C volume falls below 5.

POSSIBLE CAUSES
- INTERNAL TRANSMISSION - 2C CLUTCH VOLUME INDEX LOW
- TCM - 2C CLUTCH VOLUME INDEX LOW
