P1698
P1698

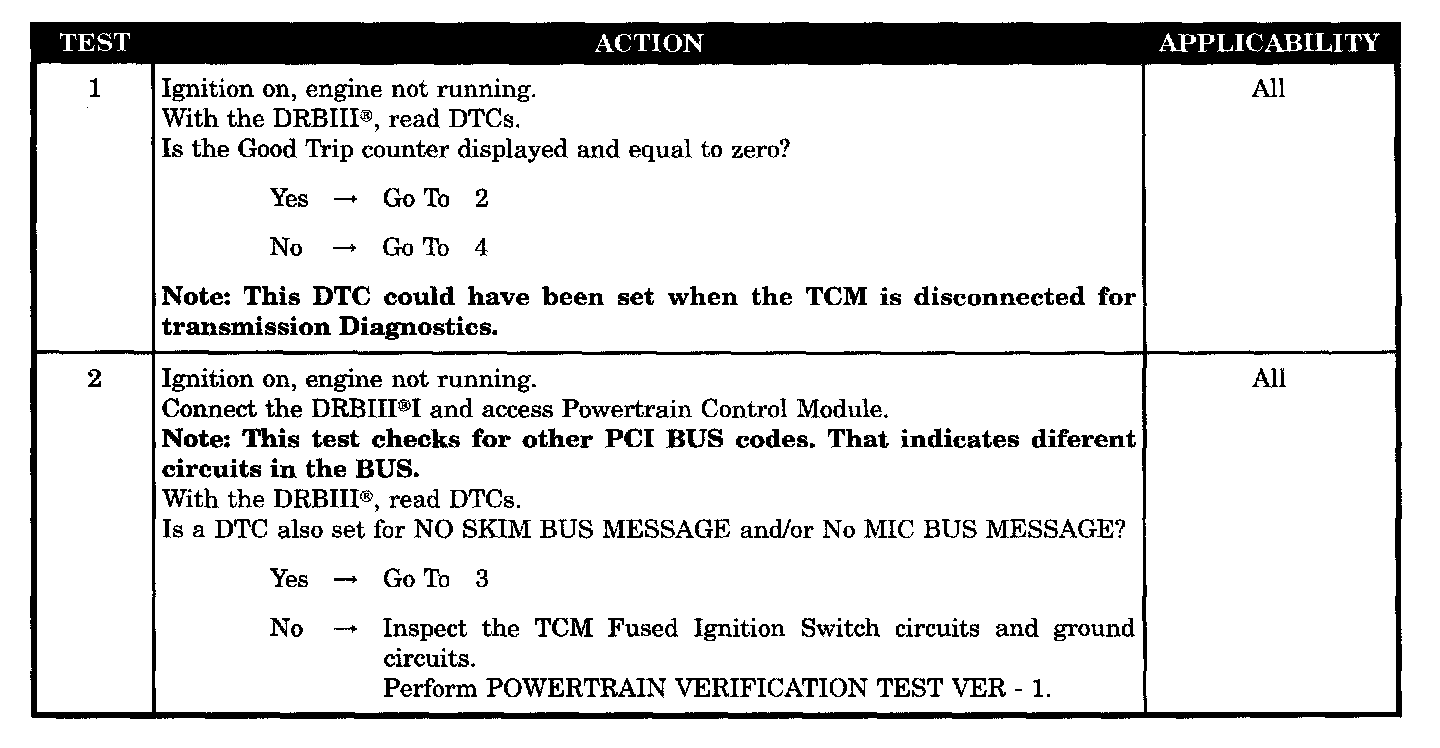

Tests 1 - 2:

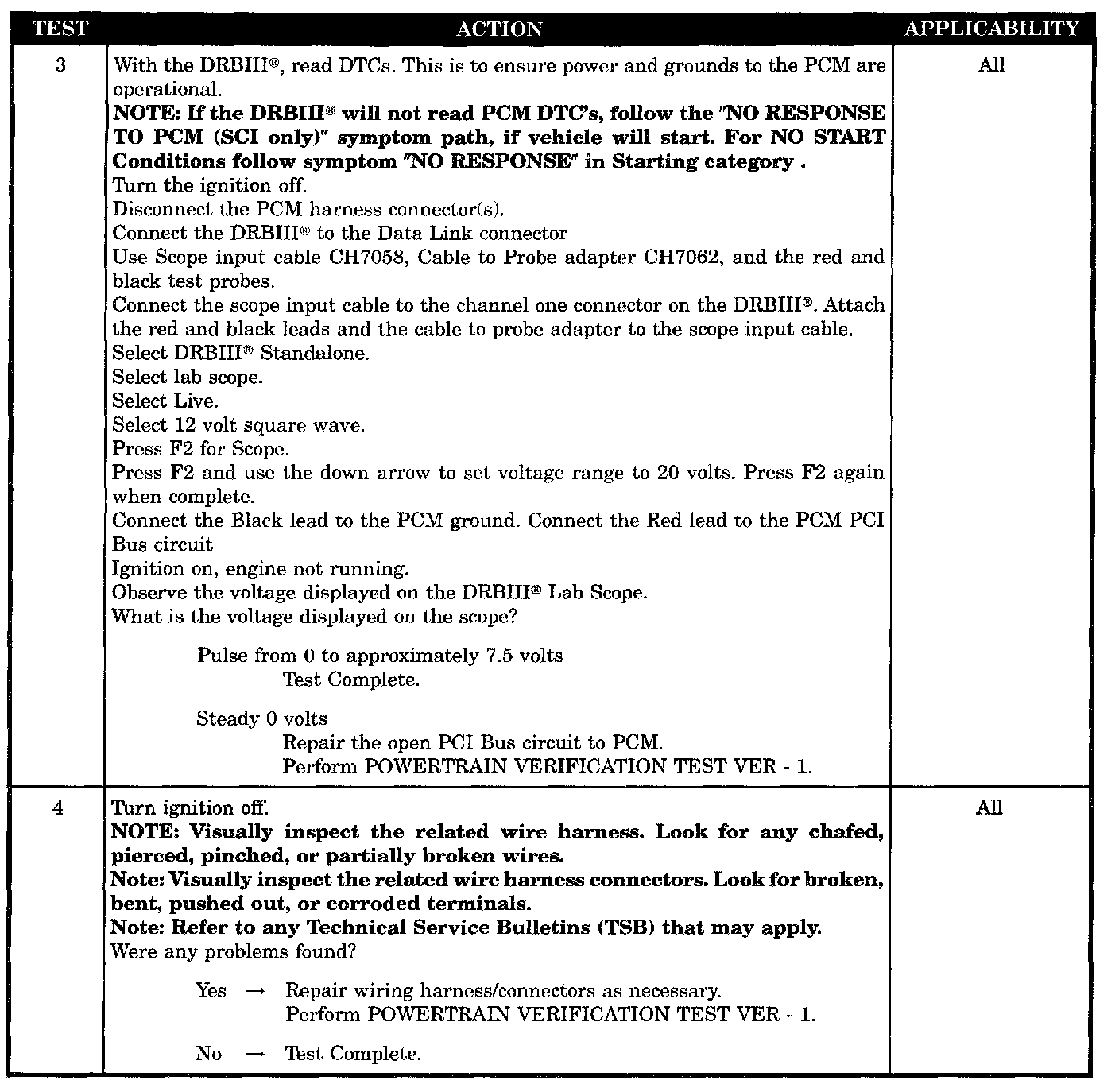

Tests 3 - 4:
SYMPTOM
P1698-NO BUS MESSAGE FROM TCM
POSSIBLE CAUSES
-
Wiring harness intermittent problem
-
No bus message from TRANS
-
PCM PCI bus circuit open
