P1599

Tests 1 - 2:

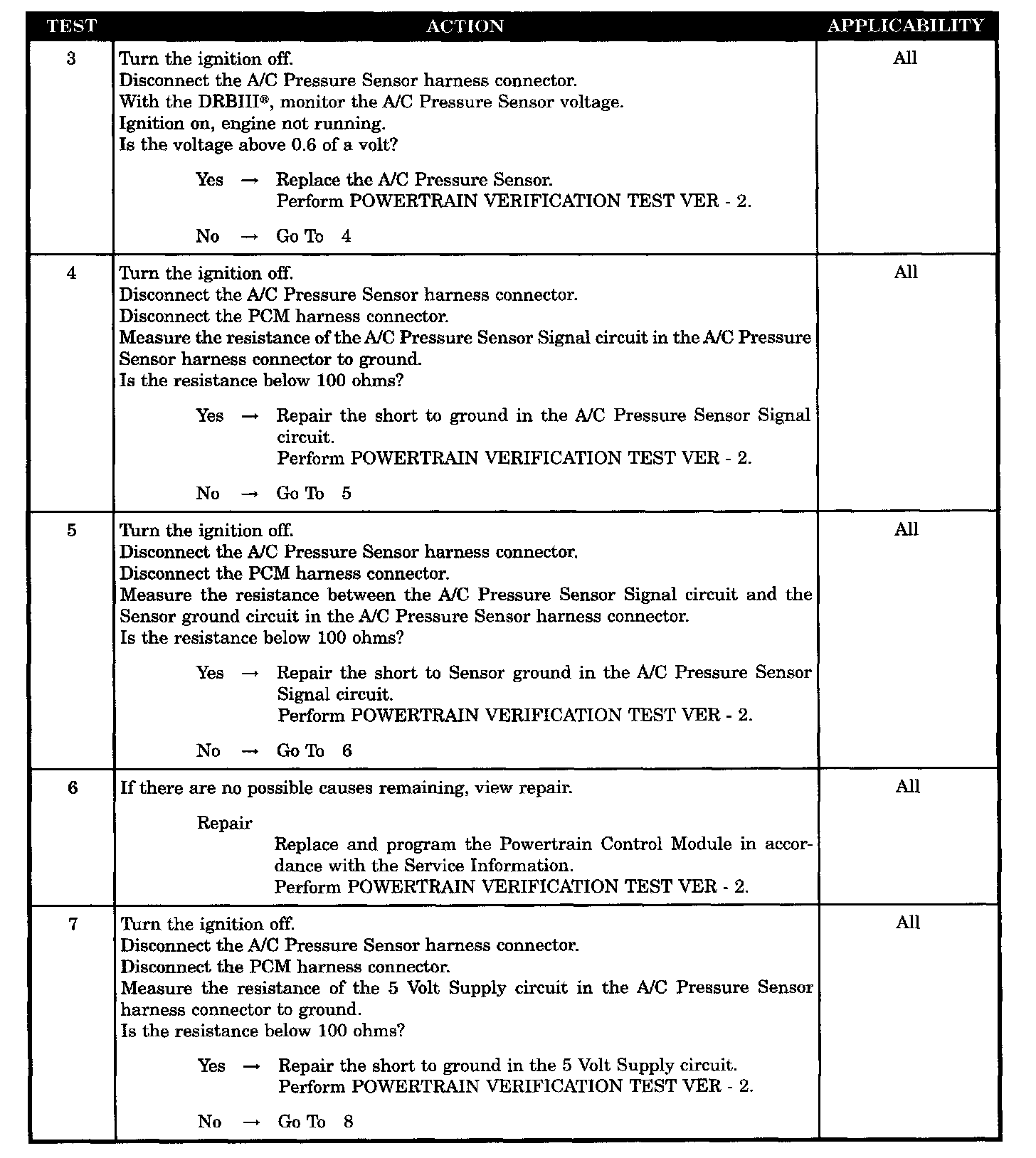

Tests 3 - 7:

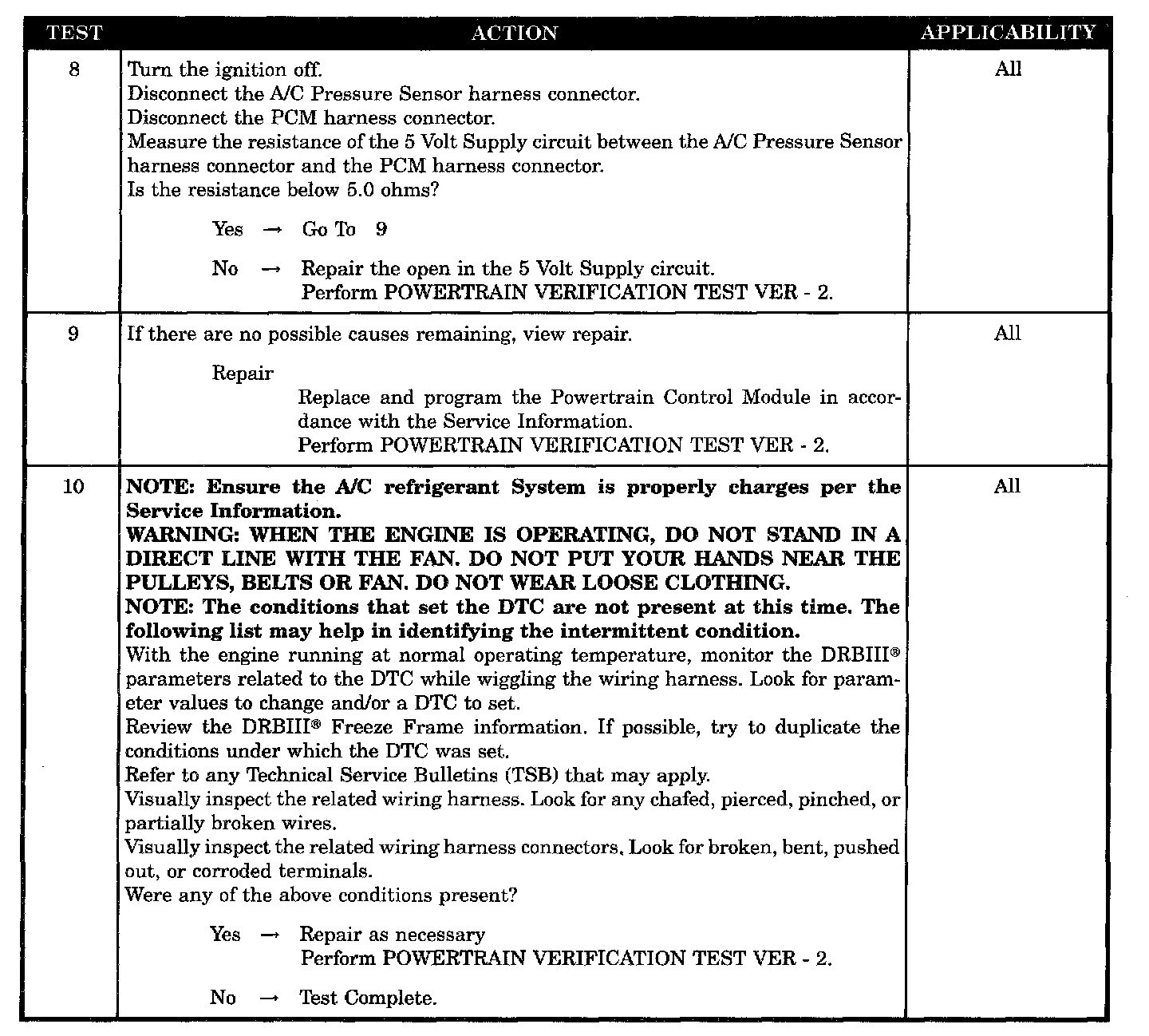

Tests 8 - 10:

SYMPTOM
P1599-A/C PRESSURE SENSOR VOLTS TOO LOW

WHEN MONITORED
With the engine running and the A/C Relay energized.

SET CONDITION
The A/C Pressure Sensor Signal voltage at the PCM goes below 0.58 of a volt for 2.6 seconds.

POSSIBLE CAUSES
- Intermittent condition
- 5 volt supply circuit shorted to ground
- 5 volt supply circuit open
- A/C pressure sensor internal failure
- A/C pressure sensor signal circuit shorted to ground
- A/C pressure sensor signal circuit shorted to sensor ground circuit
- PCM 5 volt supply circuit
- PCM A/C pressure sensor signal
