P1491

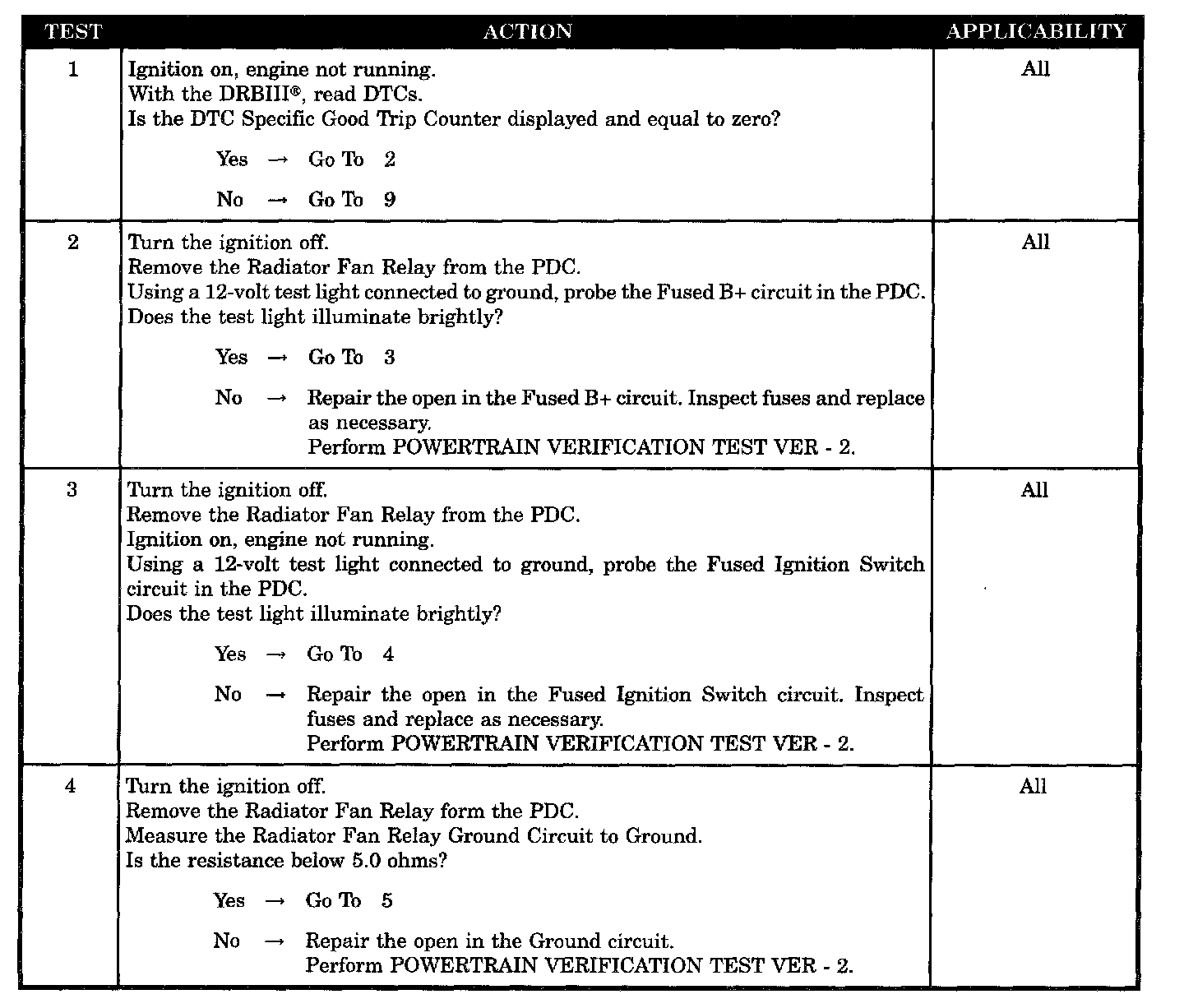

Tests 1 - 4:

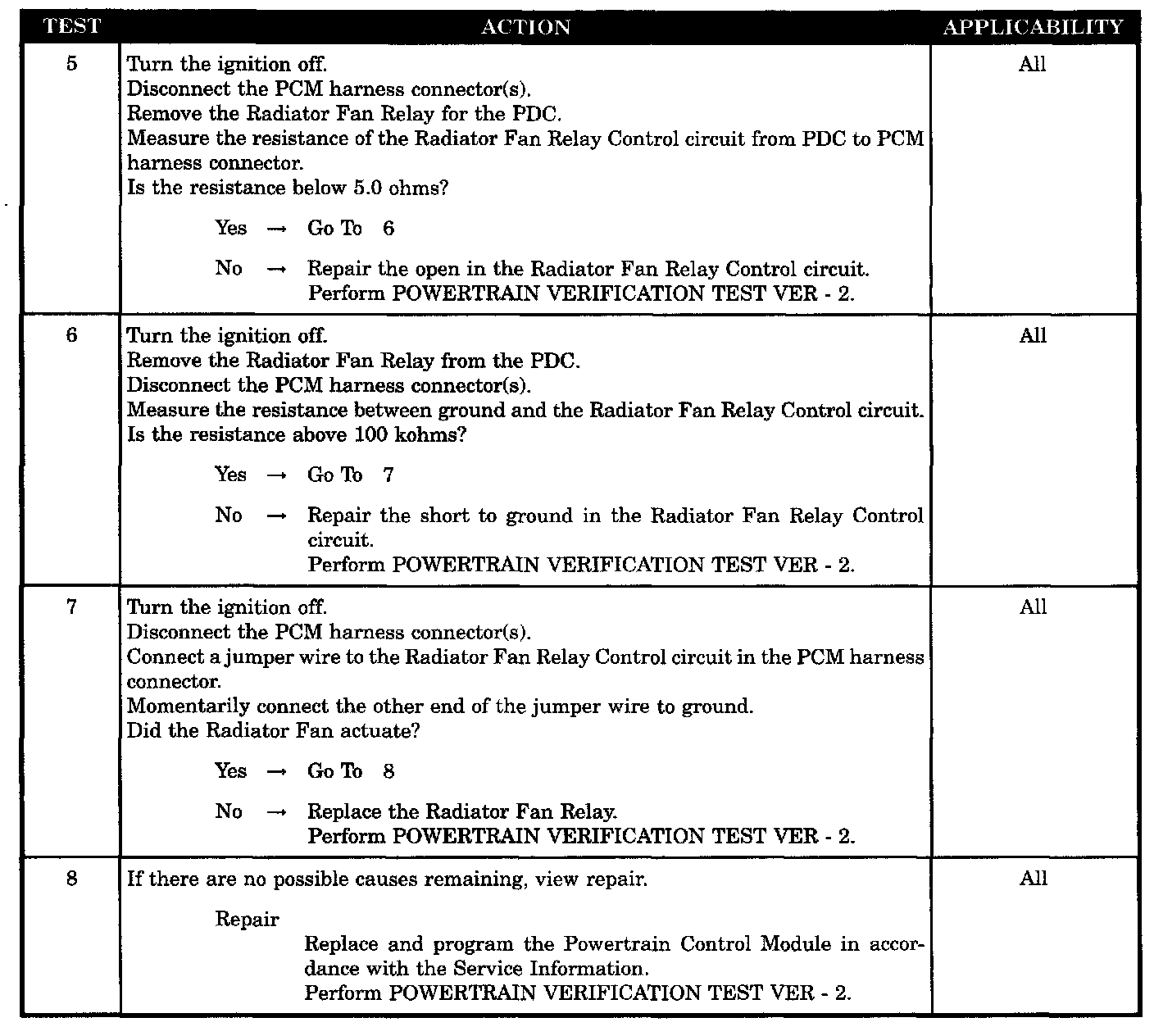

Tests 5 - 8:

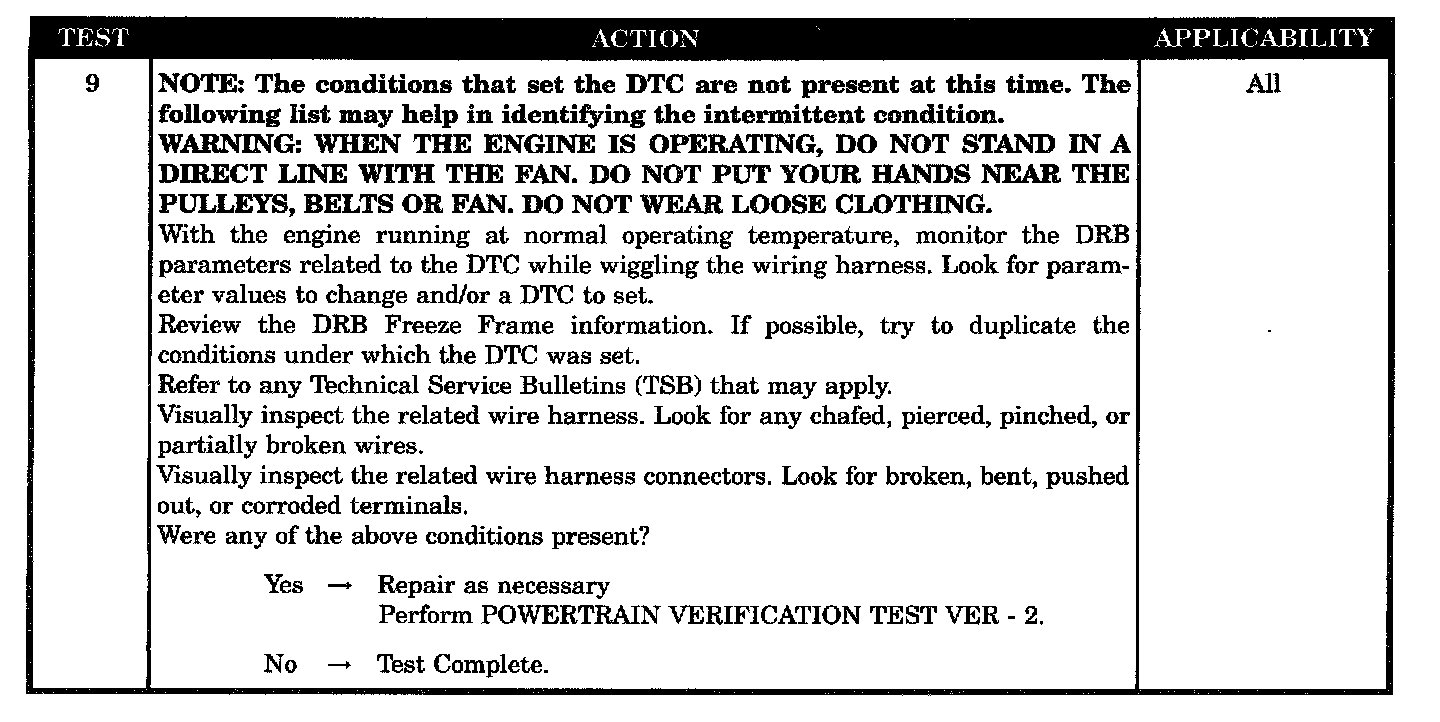

Test 9:

SYMPTOM
P1491-RAD FAN CONTROL RELAY CIRCUIT

POSSIBLE CAUSES
- Intermittent condition
- Fused B+ circuit
- Fused ignition switch circuit
- Radiator fan ground CKT open
- RAD fan relay control circuit open
- Radiator fan relay control circuit short to ground
- Radiator fan relay
- PCM
