P1391

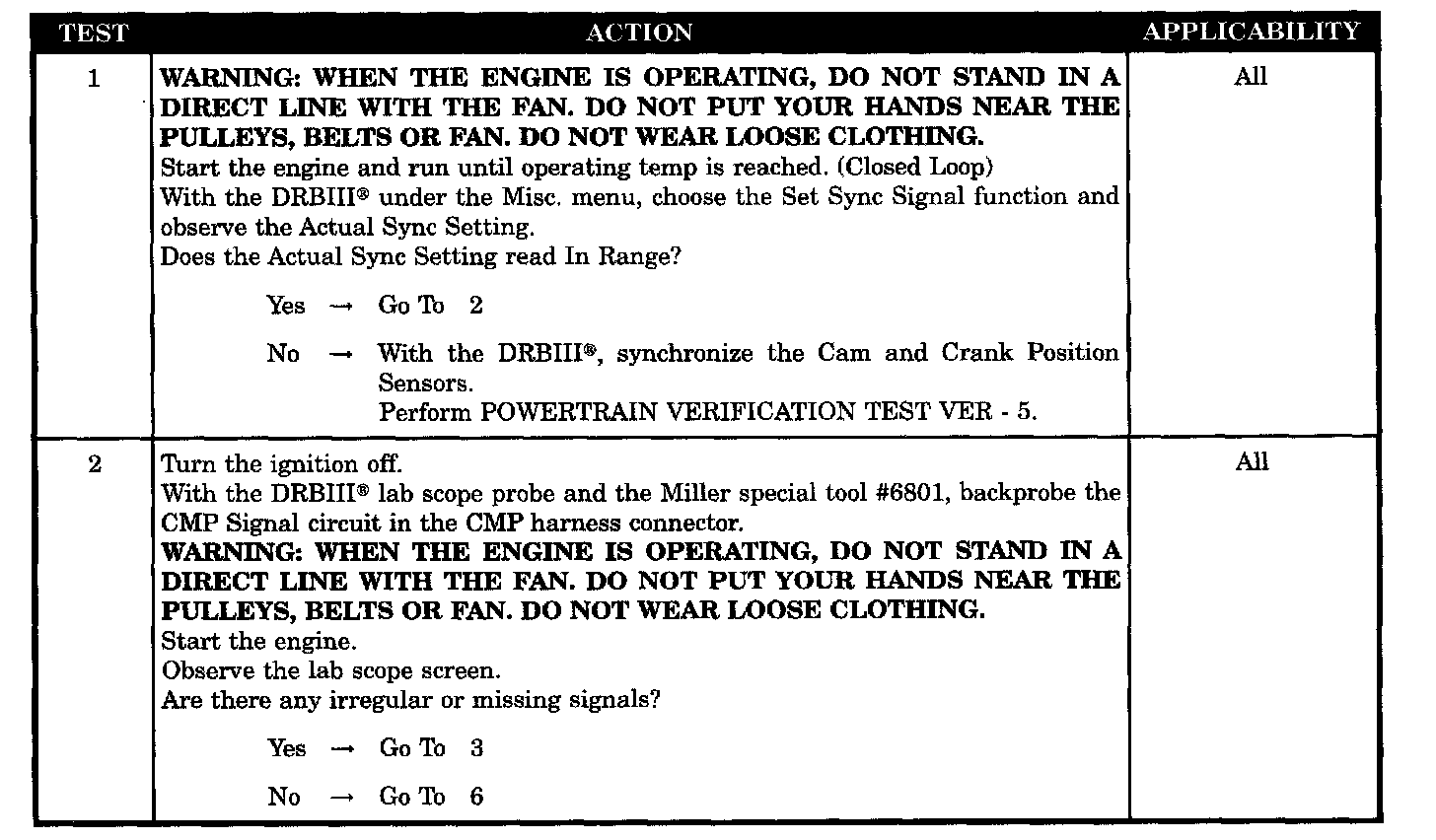

Tests 1 - 2:

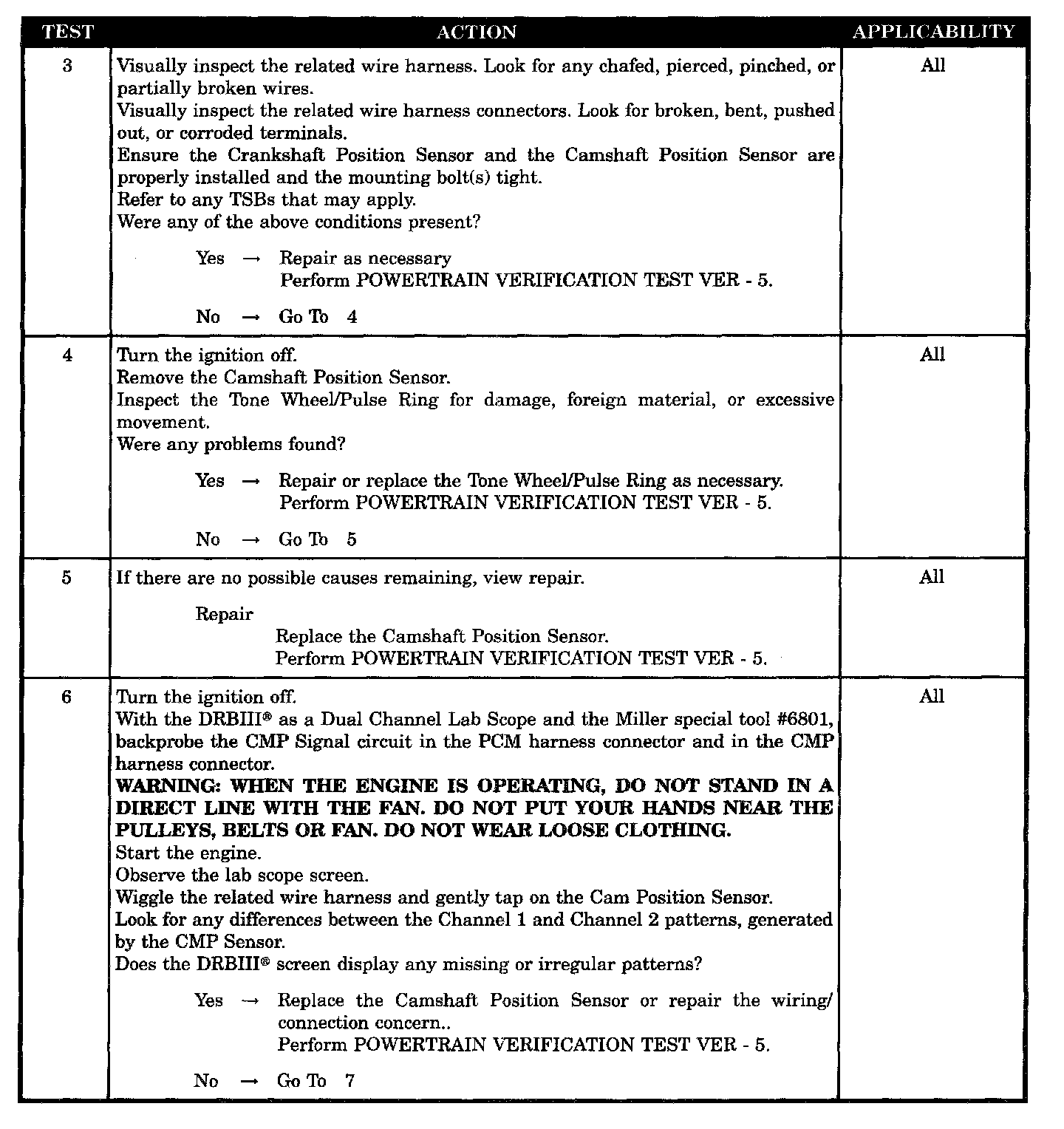

Tests 3 - 6:

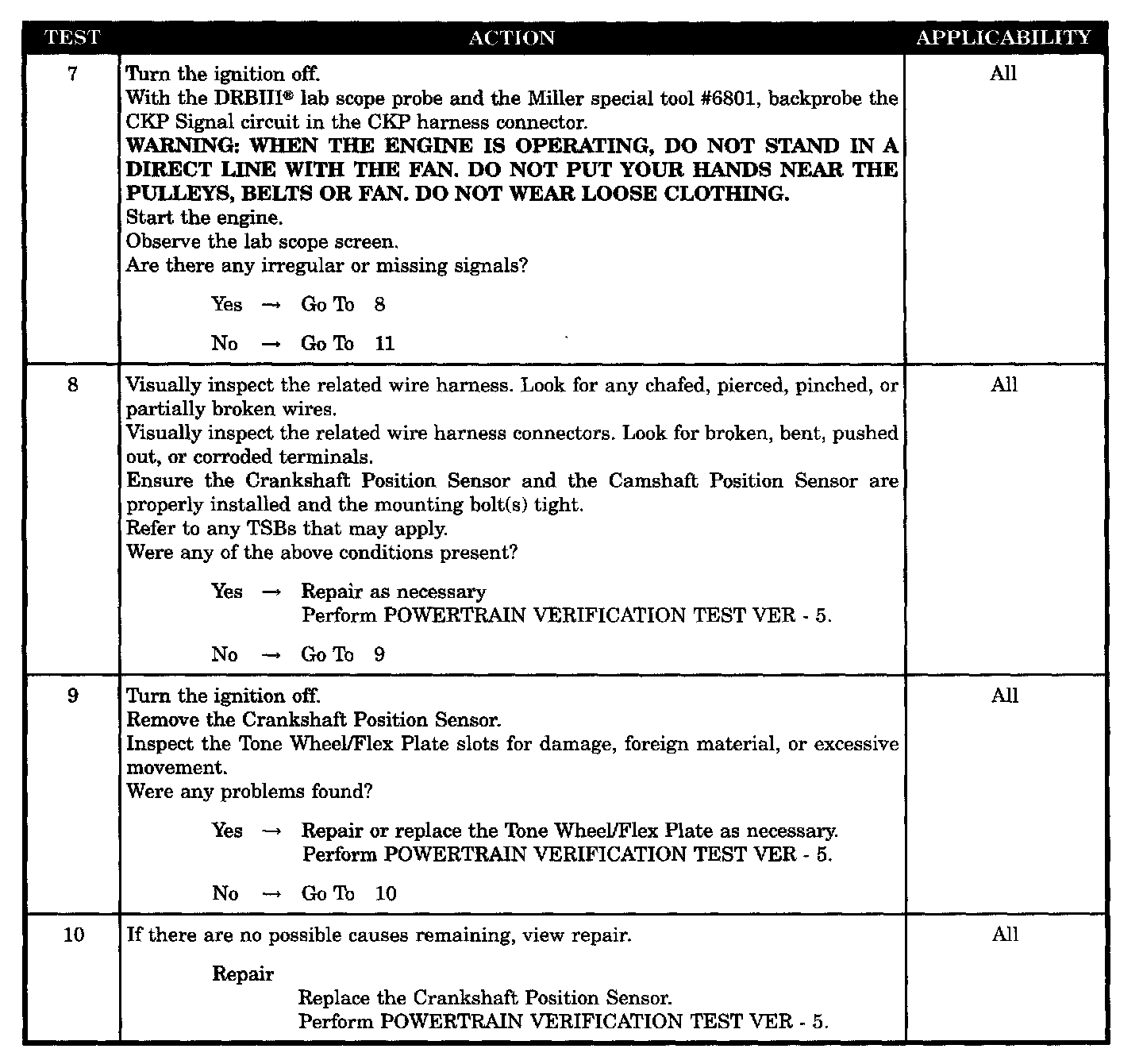

Tests 7 - 10:

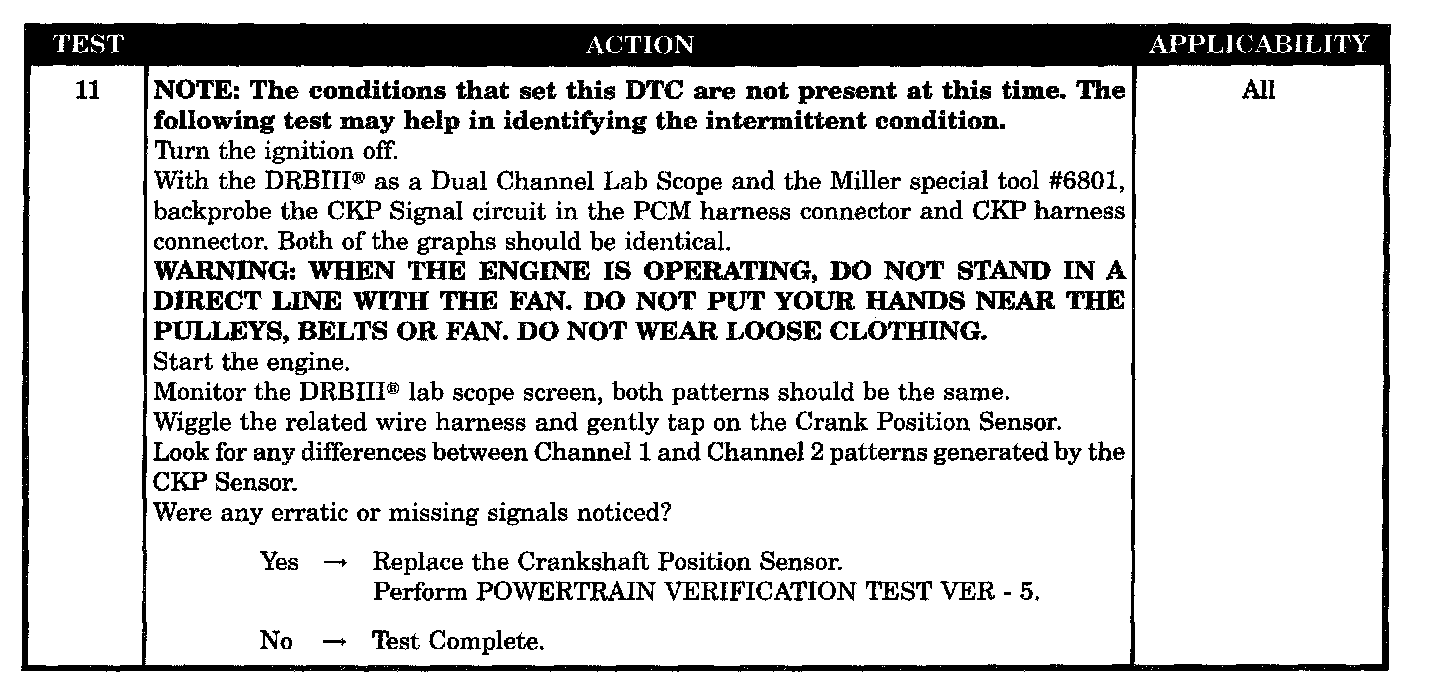

Test 11:

SYMPTOM
P1391-INTERMITTENT LOSS OF CMP OR CKP

WHEN MONITORED
Engine running or cranking.

SET CONDITION
When the failure counter reaches 20 for 2 consecutive trips.

POSSIBLE CAUSES
- CMP and CKP out of SYNC
- Checking intermittent CMP signal with LAB
- Harness inspection
- Tone wheel/pulse ring inspection
- Wiring harness inspection
- Tone wheel/pulse ring inspection
- Checking intermittent CKP signal with LAB
- Camshaft position sensor
- Crankshaft position sensor
