P1294

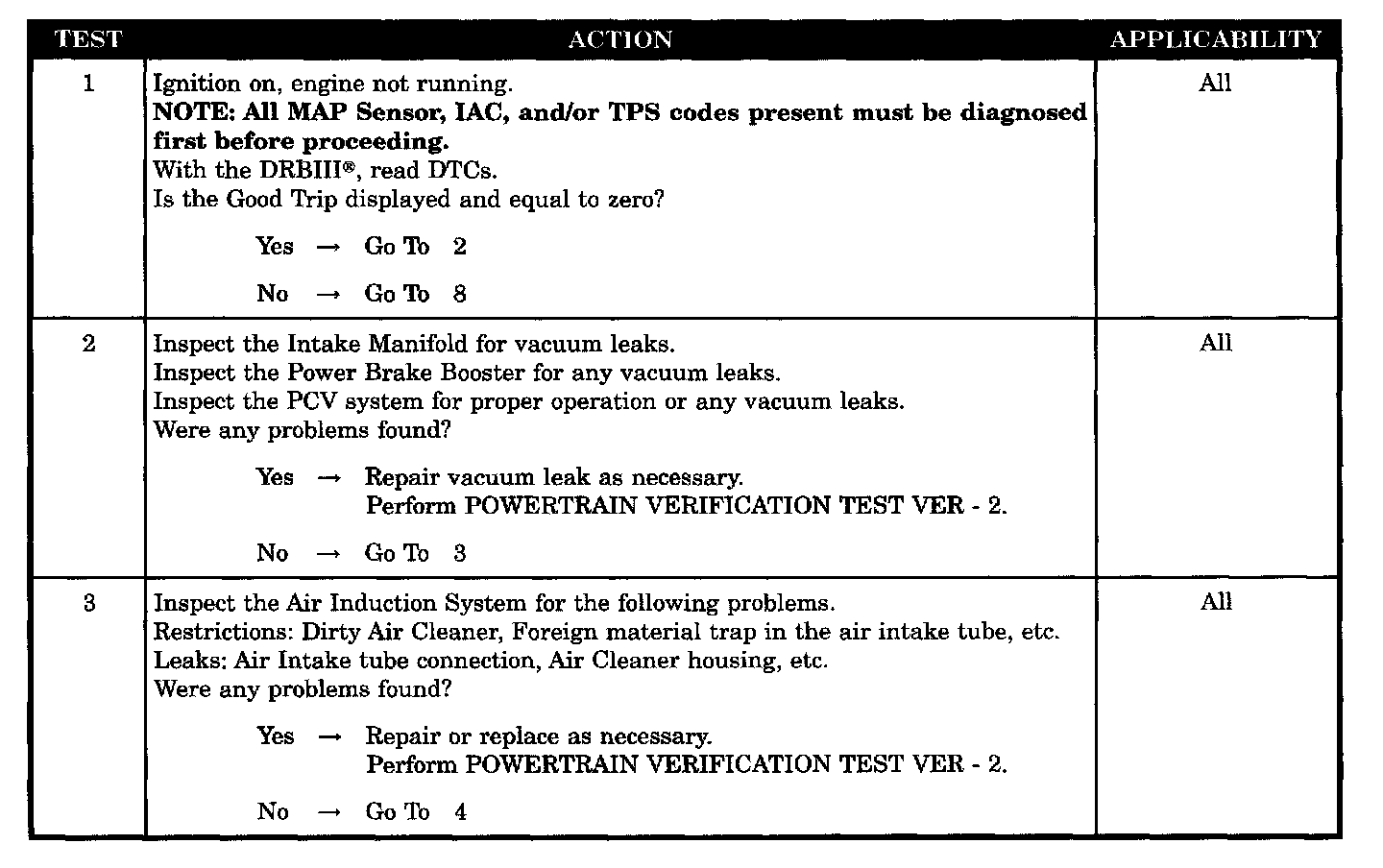

Tests 1 - 3:

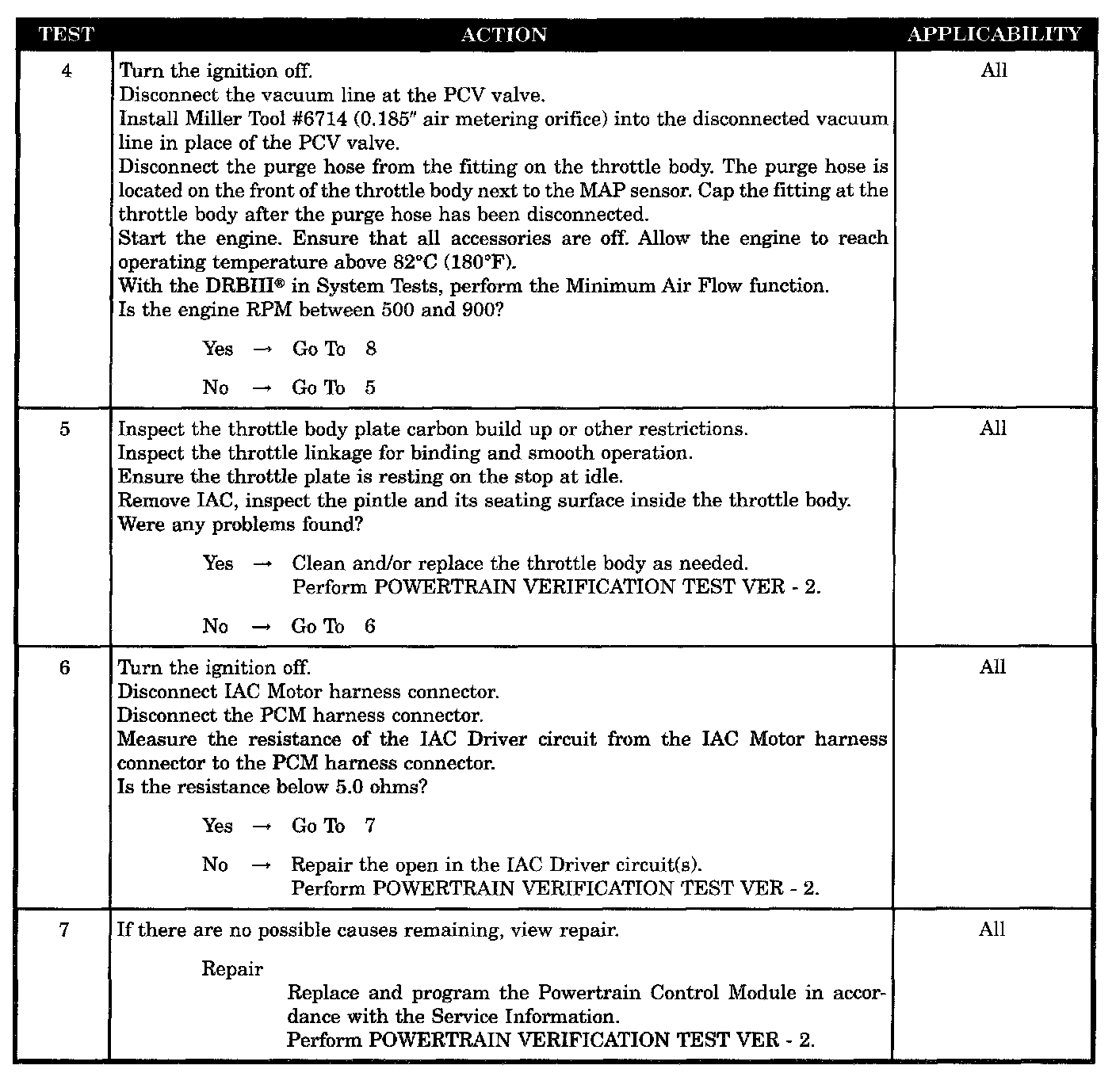

Tests 4 - 7:

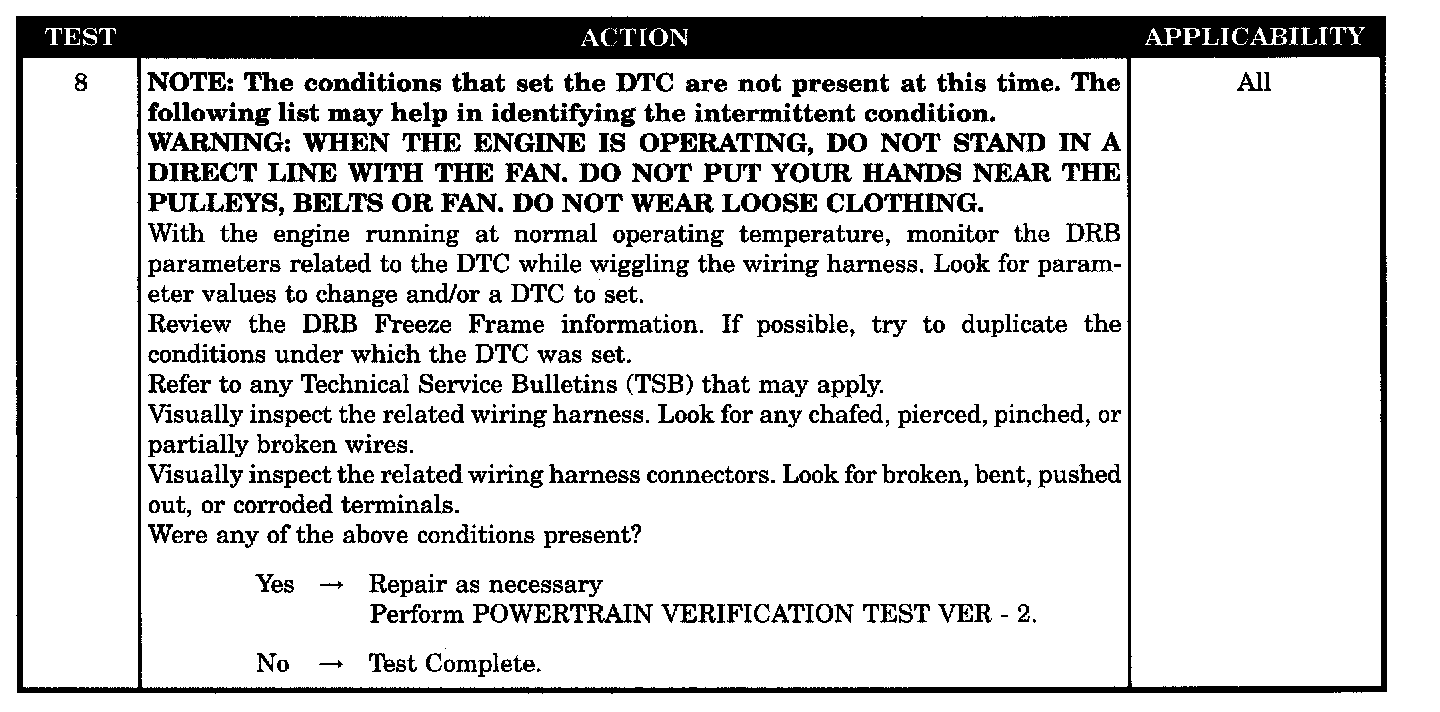

Test 8:

SYMPTOM
P1294-TARGET IDLE NOT REACHED

WHEN MONITORED
With the engine idling and in drive, if automatic. There must not be a MAP sensor trouble code or a throttle position sensor trouble code.

SET CONDITION
Engine idle is not within 200 rpm above or 100 rpm below target idle for 14 seconds. Three separate failures are required to set a bad trip. Two bad trips are required to set the code.

POSSIBLE CAUSES
- Intermittent condition
- Vacuum leak
- Air induction system
- Throttle body and throttle linkage
- IAC driver circuit open
- PCM
