P0932

SYMPTOM
P0932 - LINE PRESSURE SENSOR FAULT

WHEN MONITORED
Continuously with engine running.

SET CONDITION

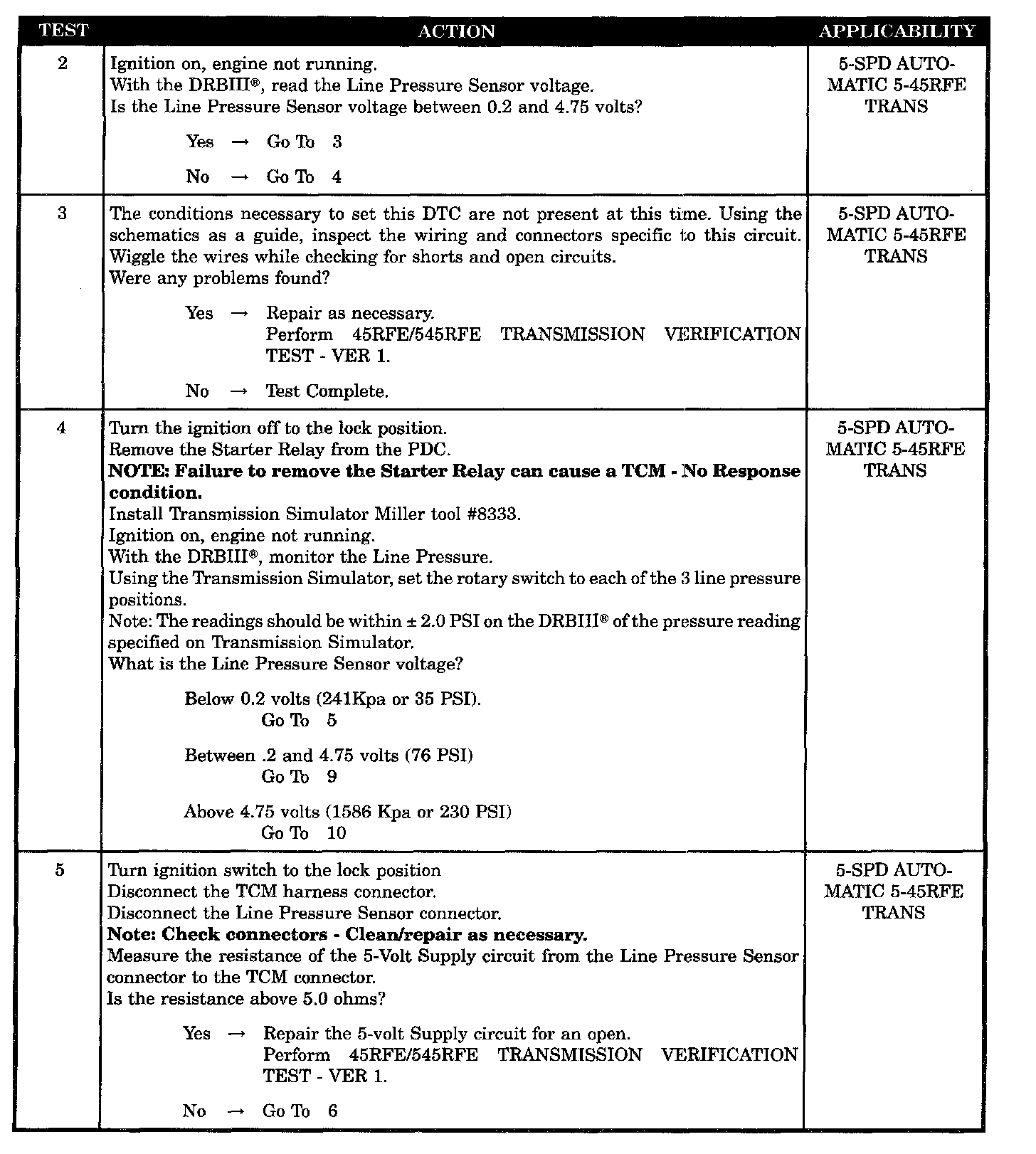

If the Line Pressure Sensor (LPS) voltage is below 0.2 volts or above 4.75 volts the code will be set.

POSSIBLE CAUSES
- INTERMITTENT WIRING AND CONNECTORS
- 5 - VOLT SUPPLY CIRCUIT OPEN
- GROUND CIRCUIT OPEN
- LINE PRESSURE SENSOR SIGNAL CIRCUIT OPEN
- 5 - VOLT SUPPLY CIRCUIT SHORT TO GROUND
- LINE PRESSURE SENSOR SIGNAL CIRCUIT SHORT TO GROUND
- LINE PRESSURE SENSOR SIGNAL CIRCUIT SHORT TO VOLTAGE
- LINE PRESSURE SENSOR
- TCM - HIGH LINE PRESSURE SENSOR
- TCM - LOW LINE PRESSURE SENSOR
