P0706

SYMPTOM

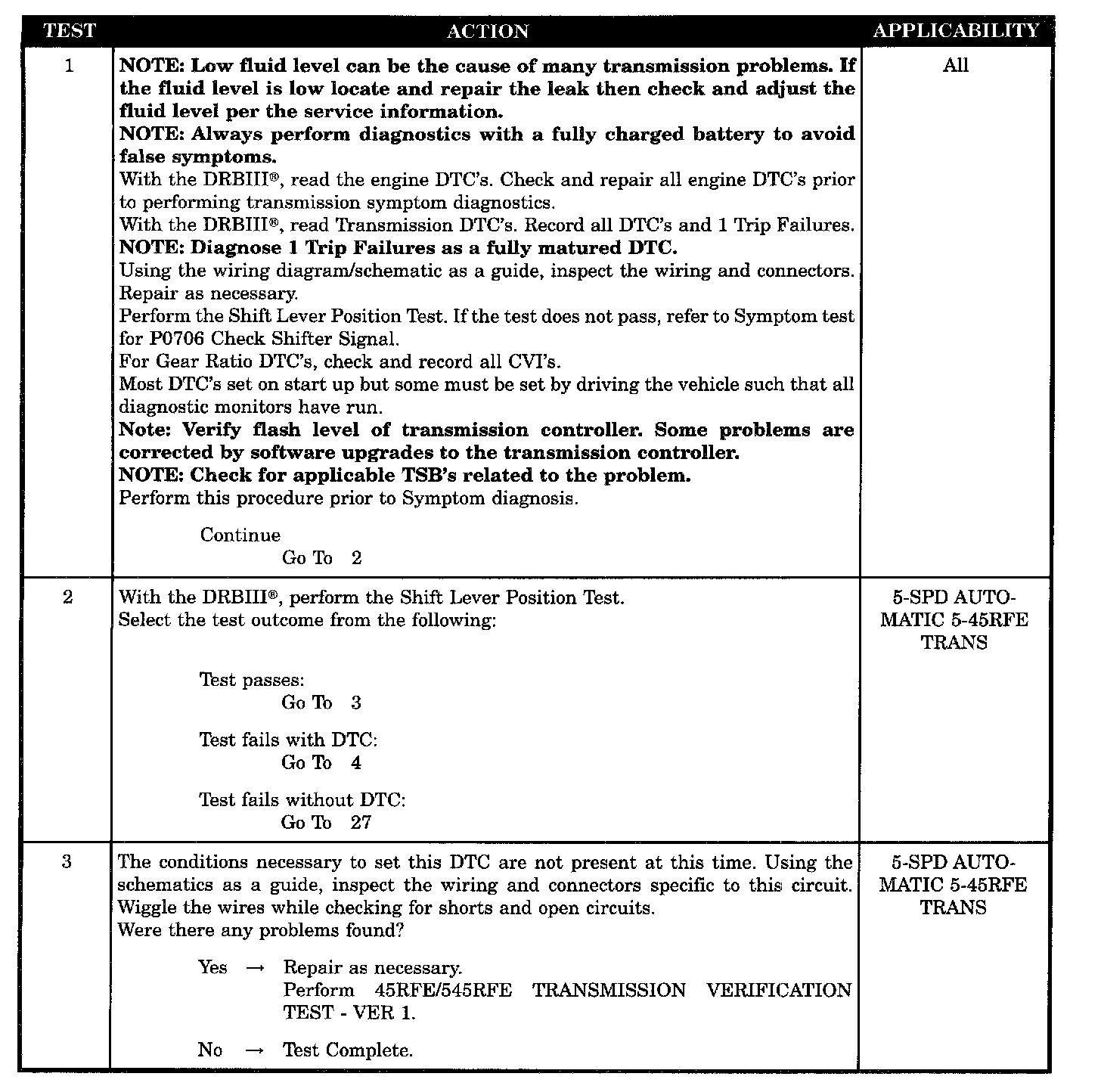

P0706 - CHECK SHIFTER SIGNAL

WHEN MONITORED
Continuously with the ignition key on.

SET CONDITION
3 occurrences in one key start of an invalid PRNDL code which lasts for more than 0.1 second.

POSSIBLE CAUSES
- Intermittent wiring connectors
- Shift linkage out of adjustment

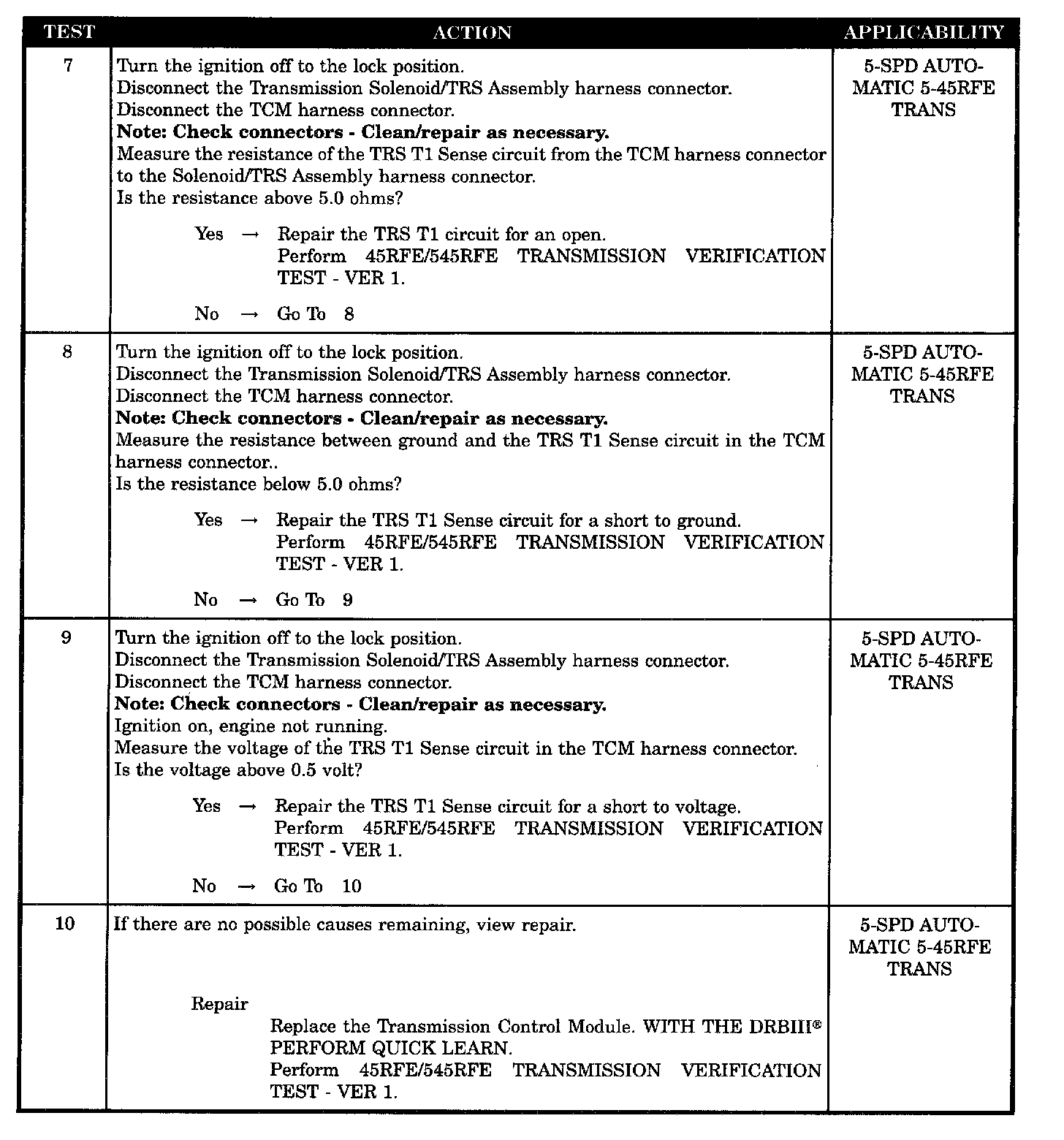

- TRS T1 sense circuit open

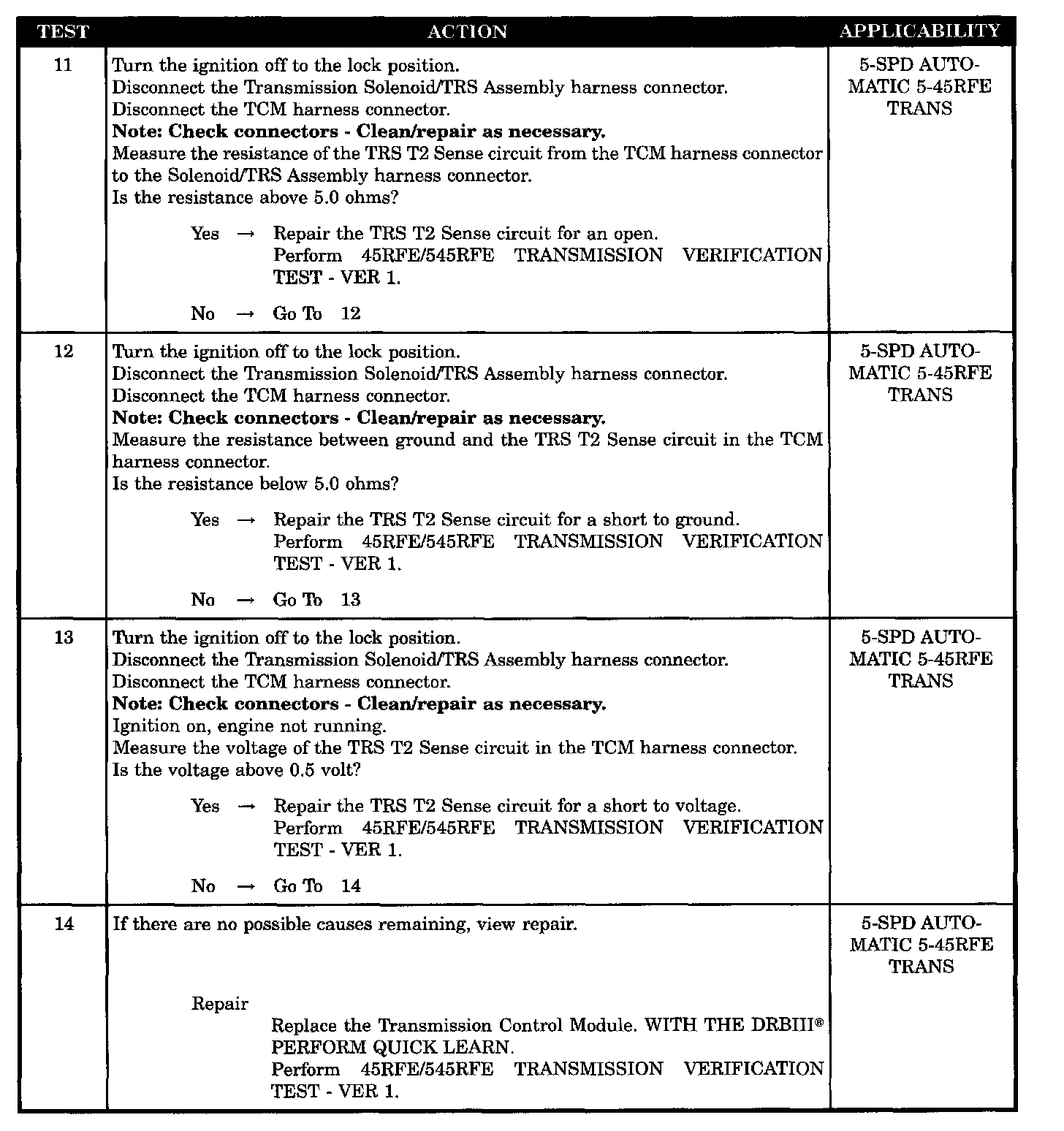

- TRS T2 sense circuit open

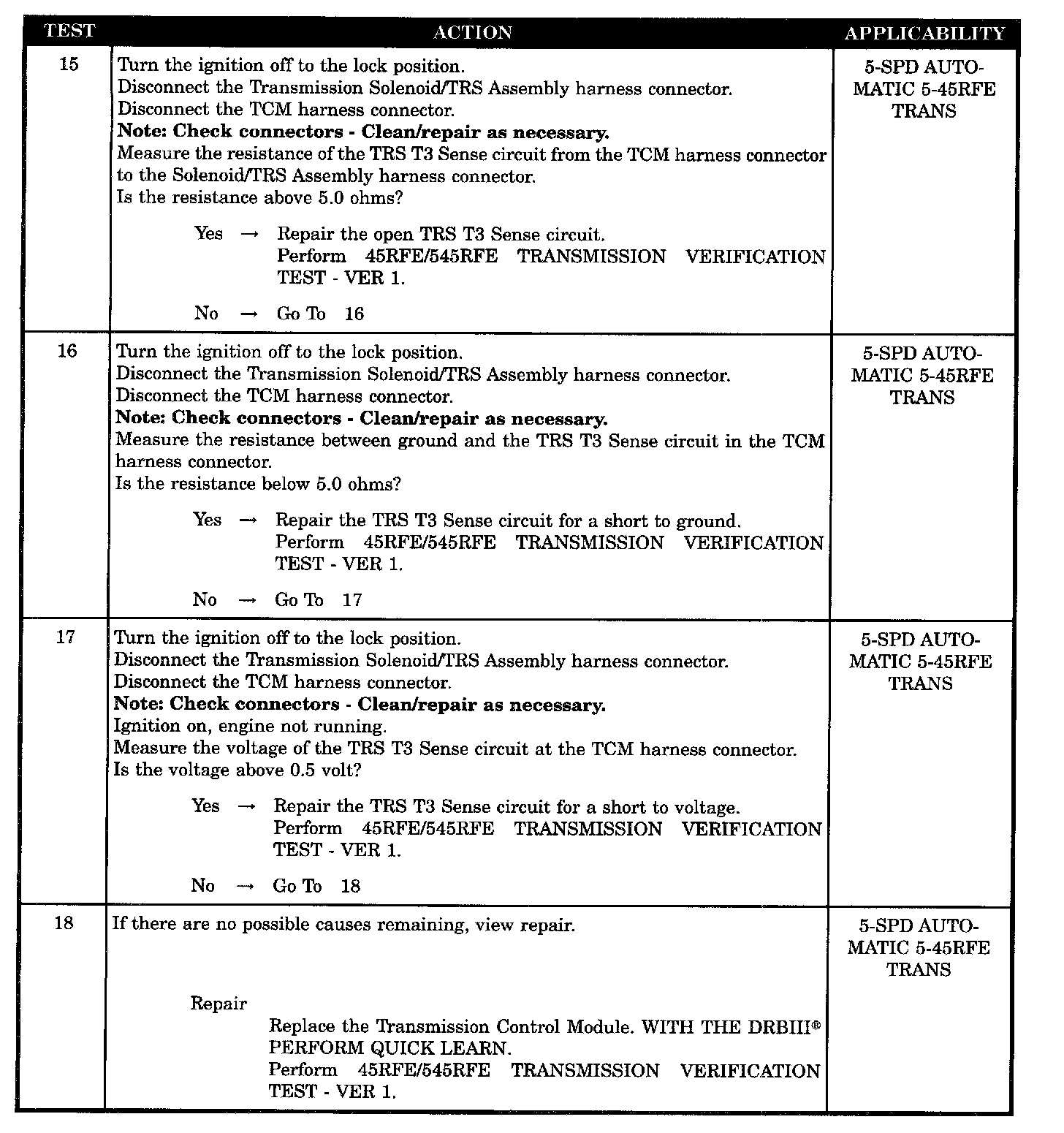

- TRS T3 sense circuit open

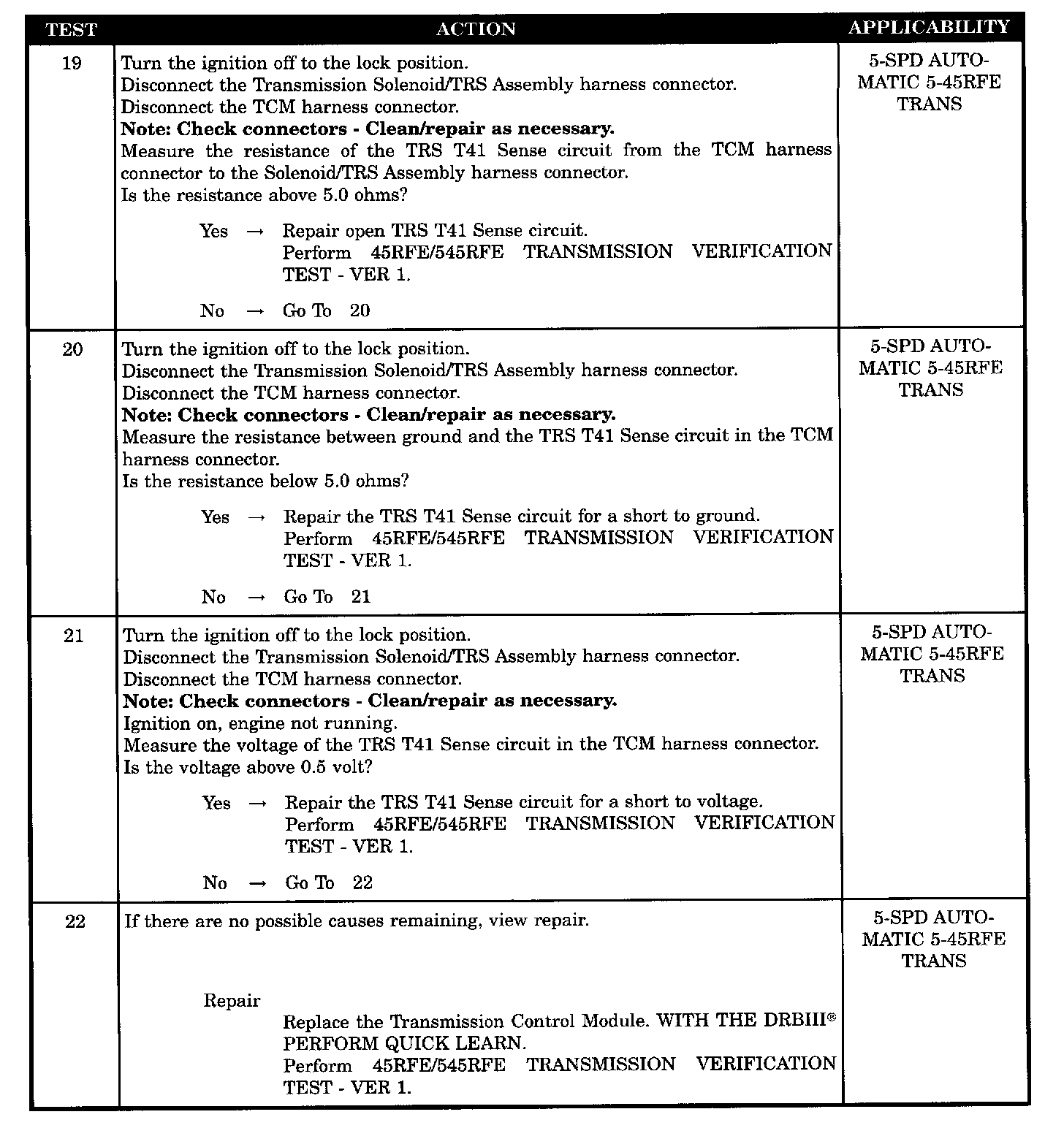

- TRS T41 sense circuit open

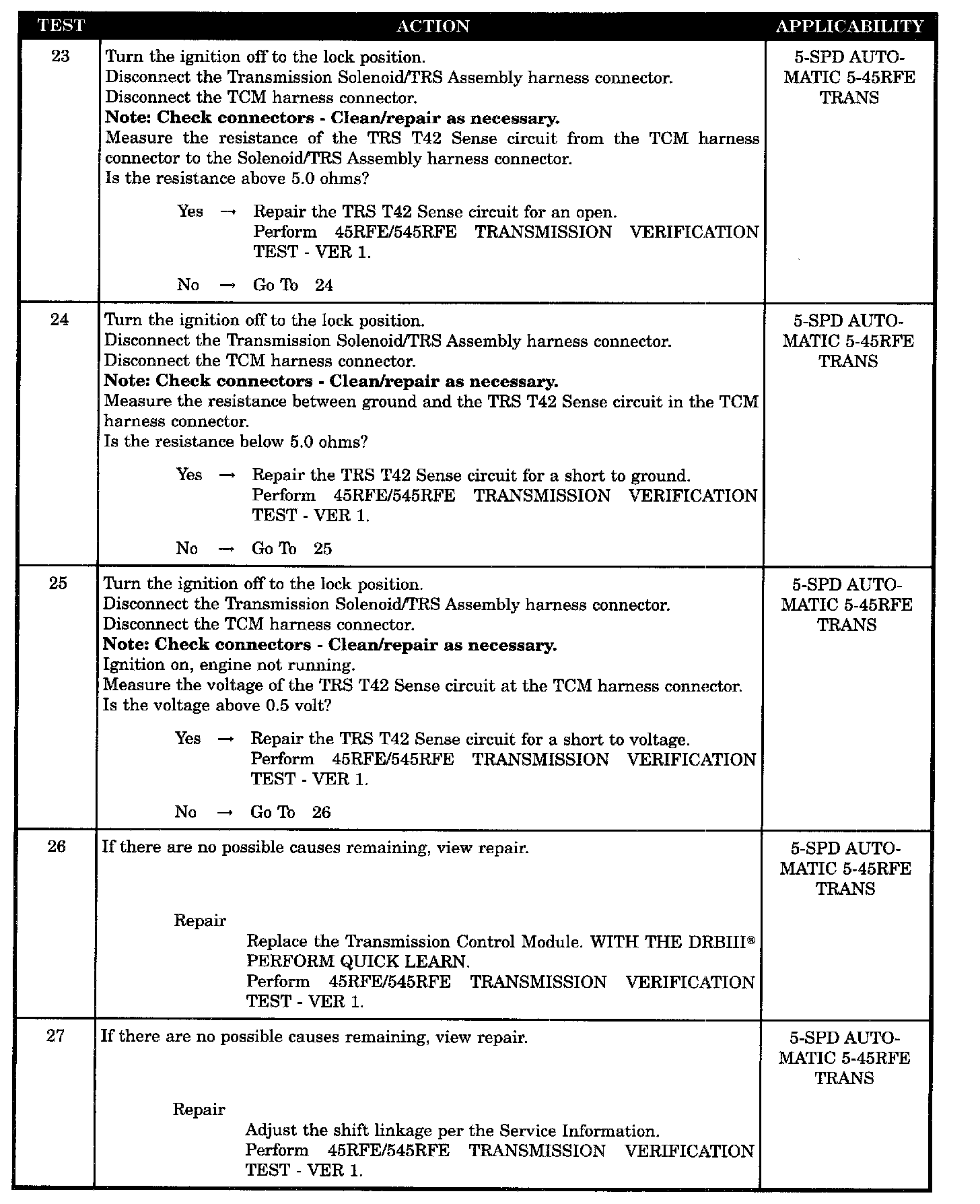

- TRS T42 sense circuit open
- TRS T1 sense circuit short to ground
- TRS T2 sense circuit short to ground
- TRS T3 sense circuit short to ground
- TRS T41 sense circuit short to ground
- TRS T42 sense circuit short to ground
- TRS T1 sense circuit short to voltage
- TRS T2 sense circuit short to voltage
- TRS T3 sense circuit short to voltage
- TRS T41 sense circuit short to voltage
- TRS T42 sense circuit short to voltage

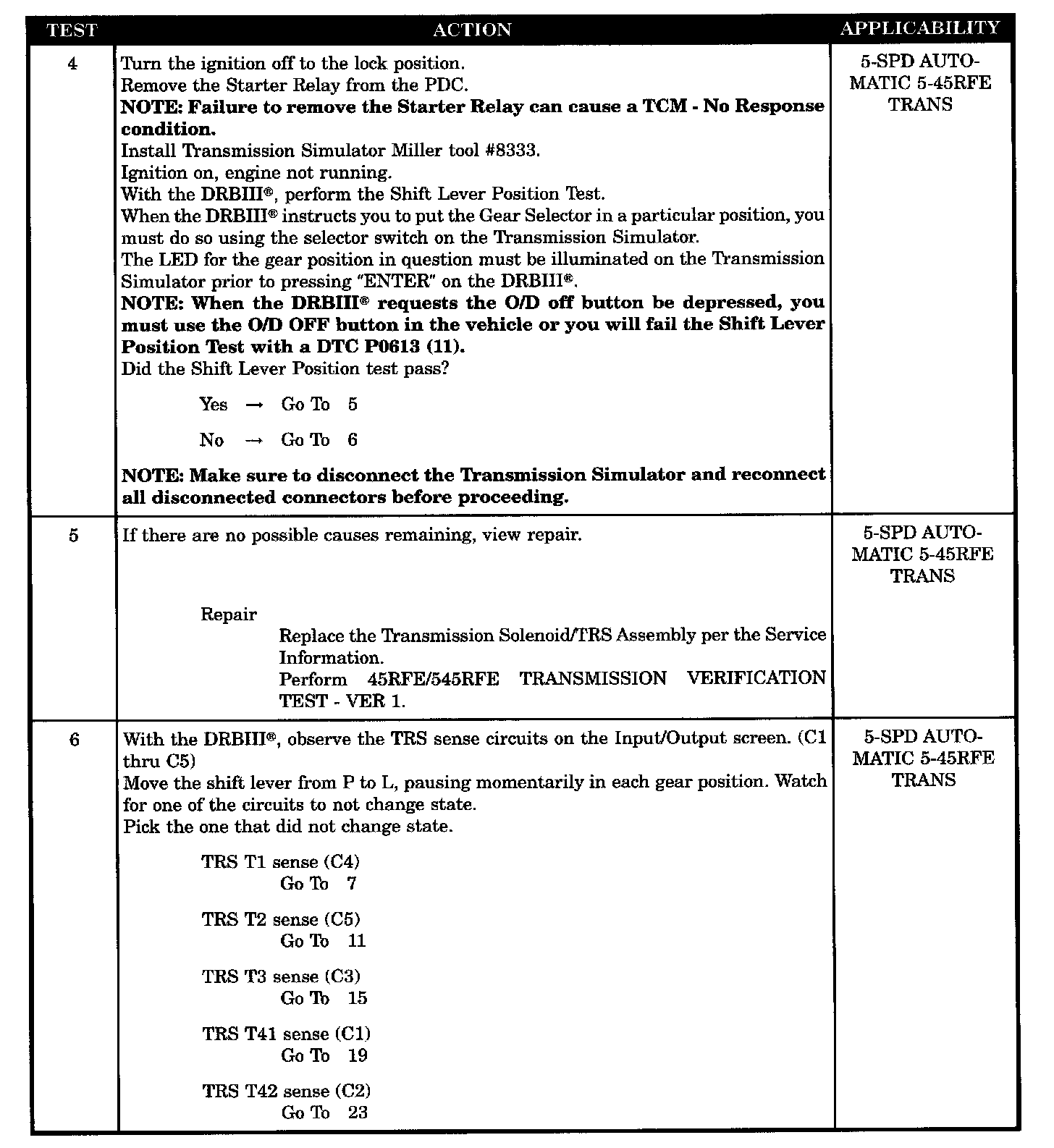

- Transmission range sensor
- TCM - TRS T1 sense circuit
- TCM - TRS T2 sense circuit
- TCM - TRS T3 sense circuit
- TCM - TRS T41 sense circuit
- TCM - TRS T42 sense circuit
