P0340

Test 1:

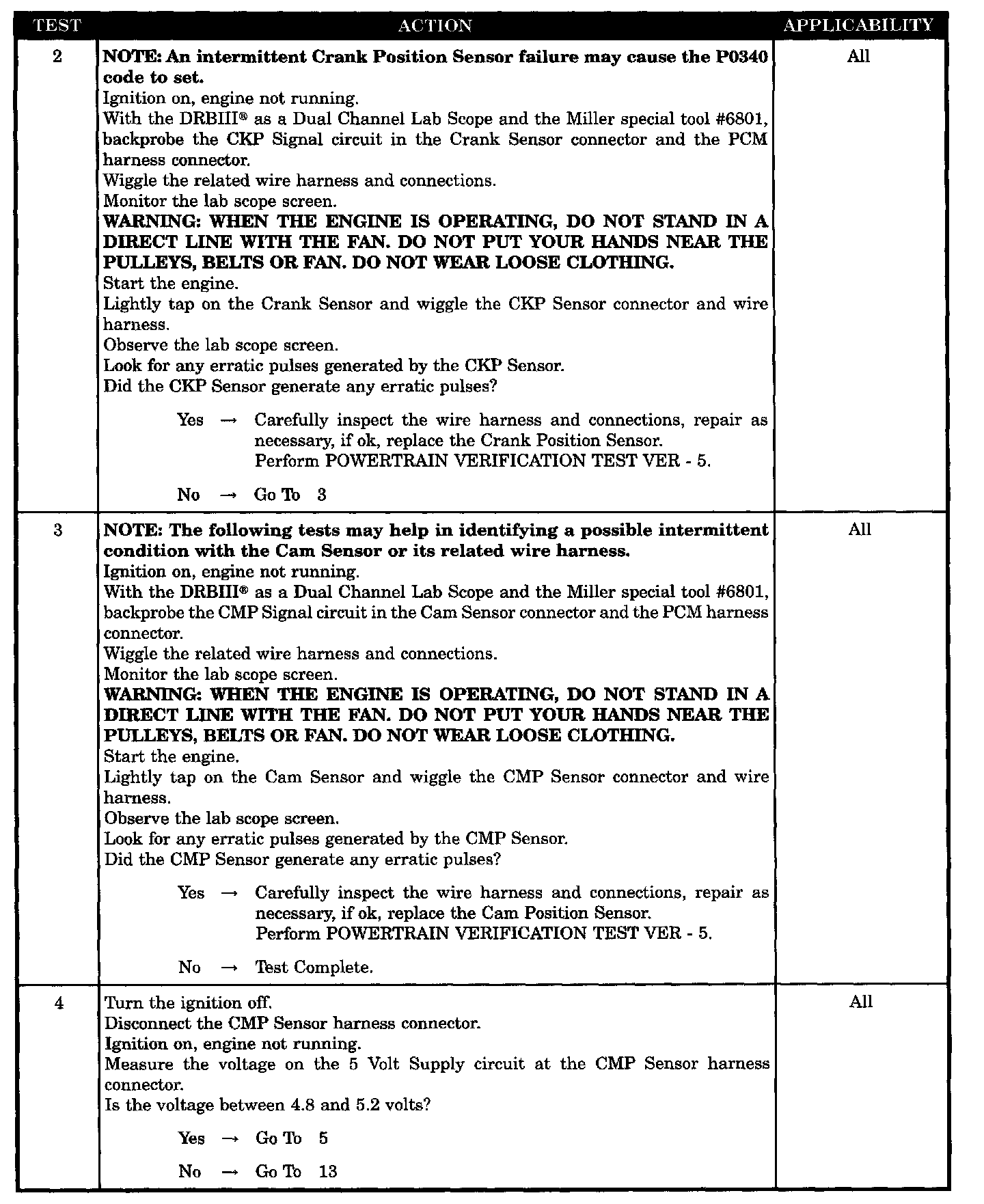

Tests 2 - 4:

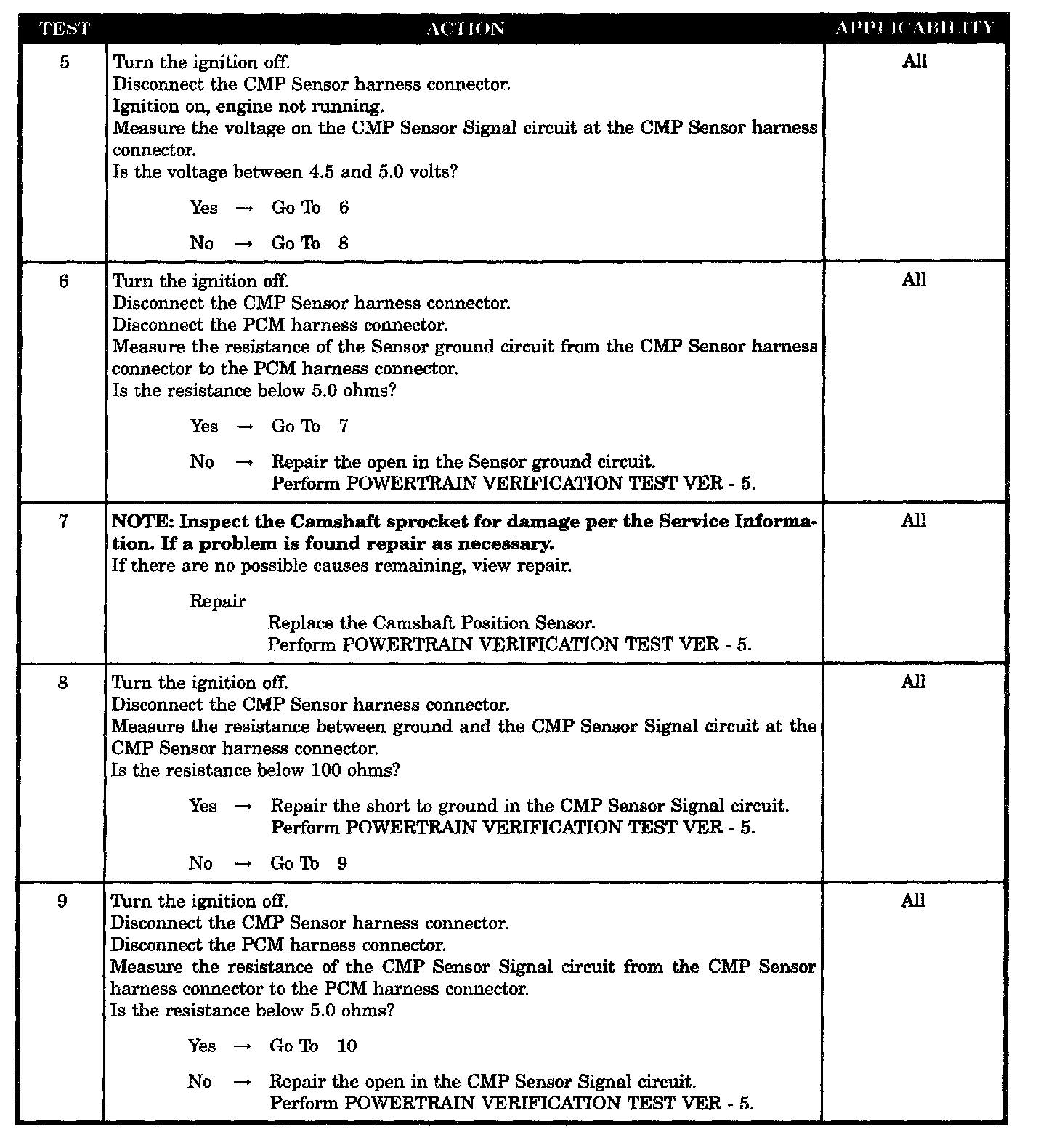

Tests 5 - 9:

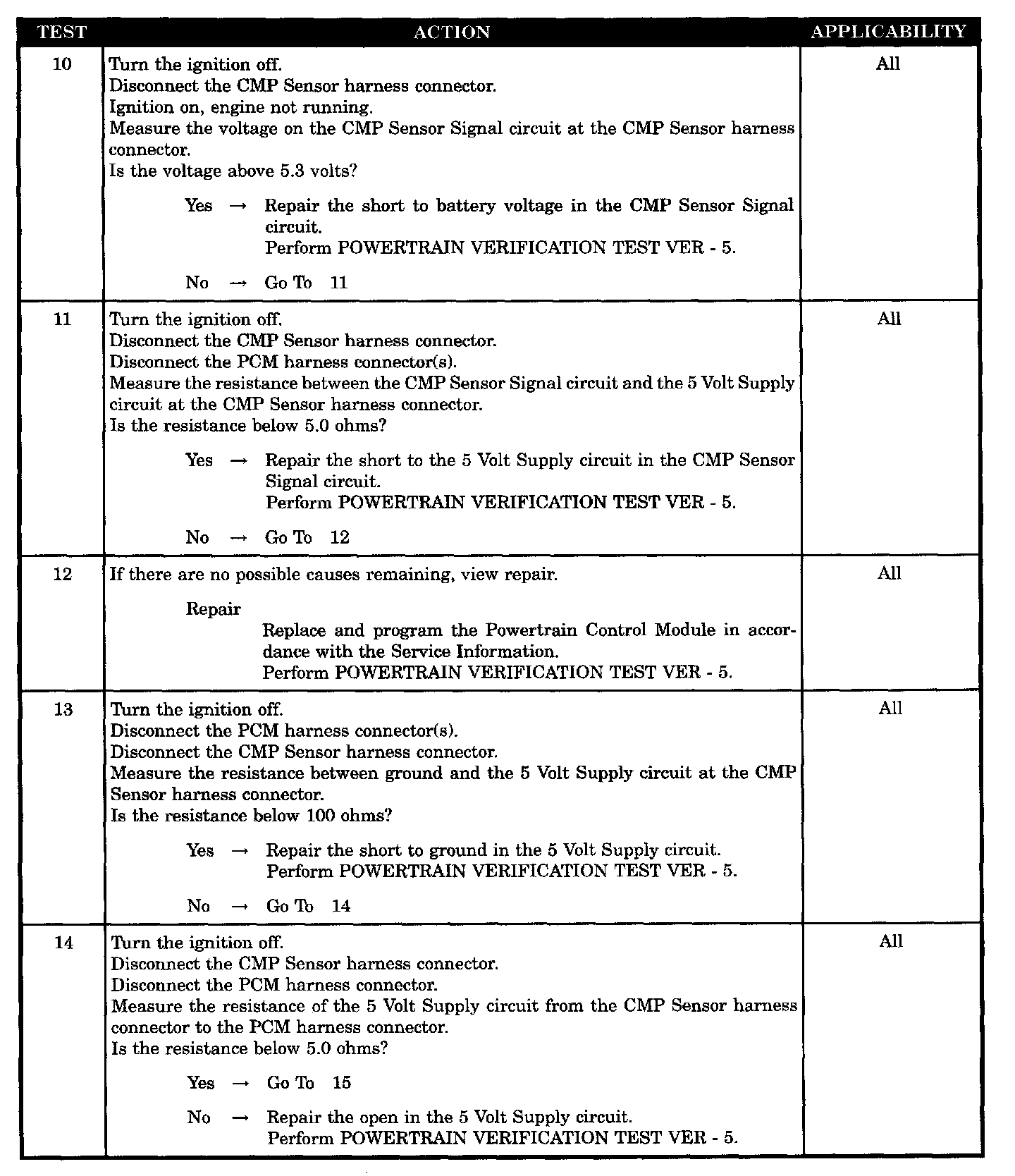

Tests 10 - 14:

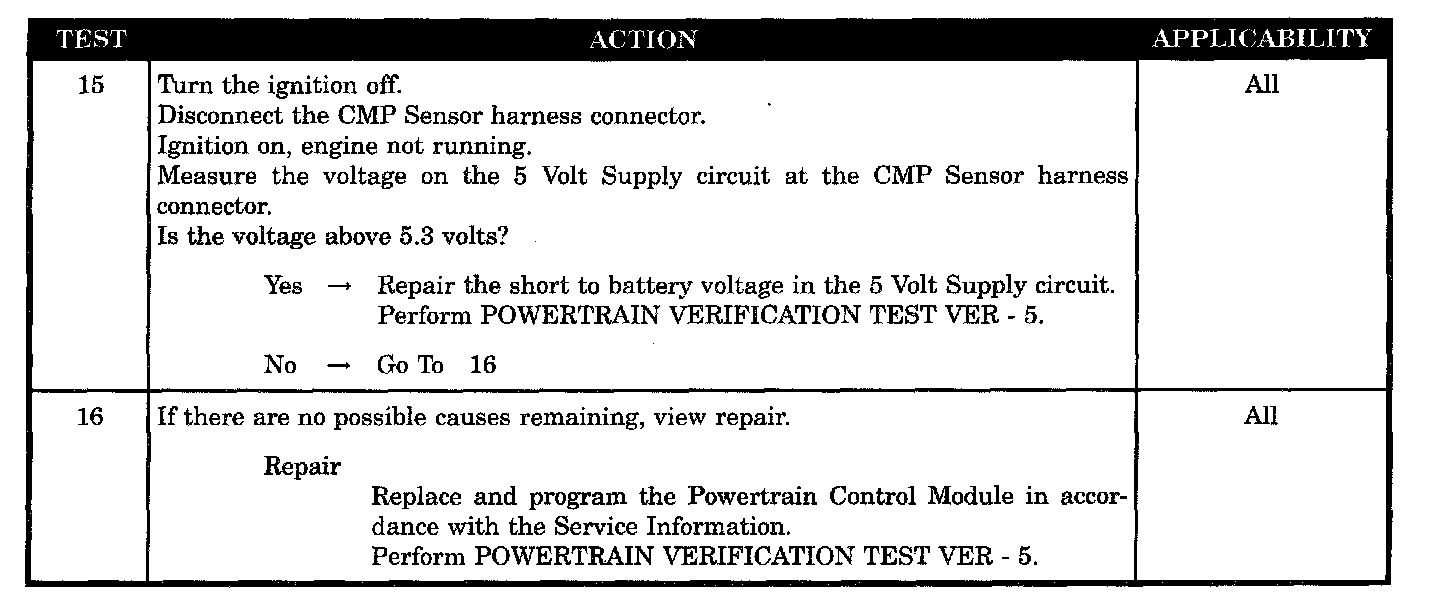

Tests 15 - 16:

SYMPTOM
P0340-NO CAM SIGNAL AT PCM

WHEN MONITORED
Engine cranking/running.

SET CONDITION
At least 5 seconds have elapsed with Crankshaft Position Sensor signals present but no Camshaft Position Sensor signal.

POSSIBLE CAUSES
- Crank position sensor signal
- Checking intermittent CMP signal with LAB scope
- 5 volt supply circuit shorted to ground
- 5 volt supply circuit open
- 5 volt supply circuit shorted to voltage
- CMP sensor signal circuit shorted ground
- CMP sensor signal circuit open
- CMP sensor signal circuit shorted to voltage
- CMP sensor signal shorted to 5 volt supply circuit
- CAM position sensor ground circuit open
- PCM - 5 volt supply
- PCM - CMP sensor signal
- Camshaft position sensor
