P0330

Test 1:

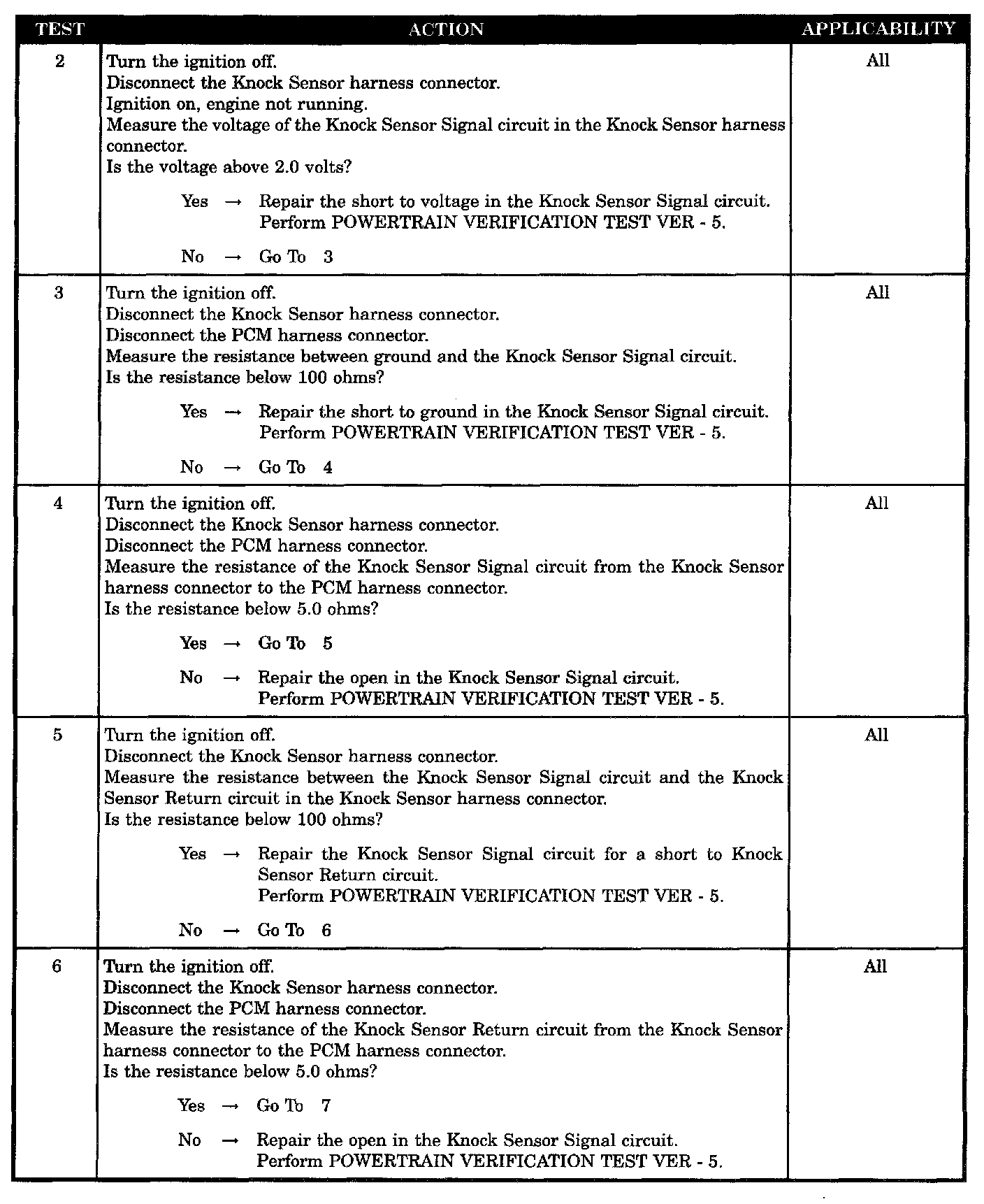

Tests 2 - 6:

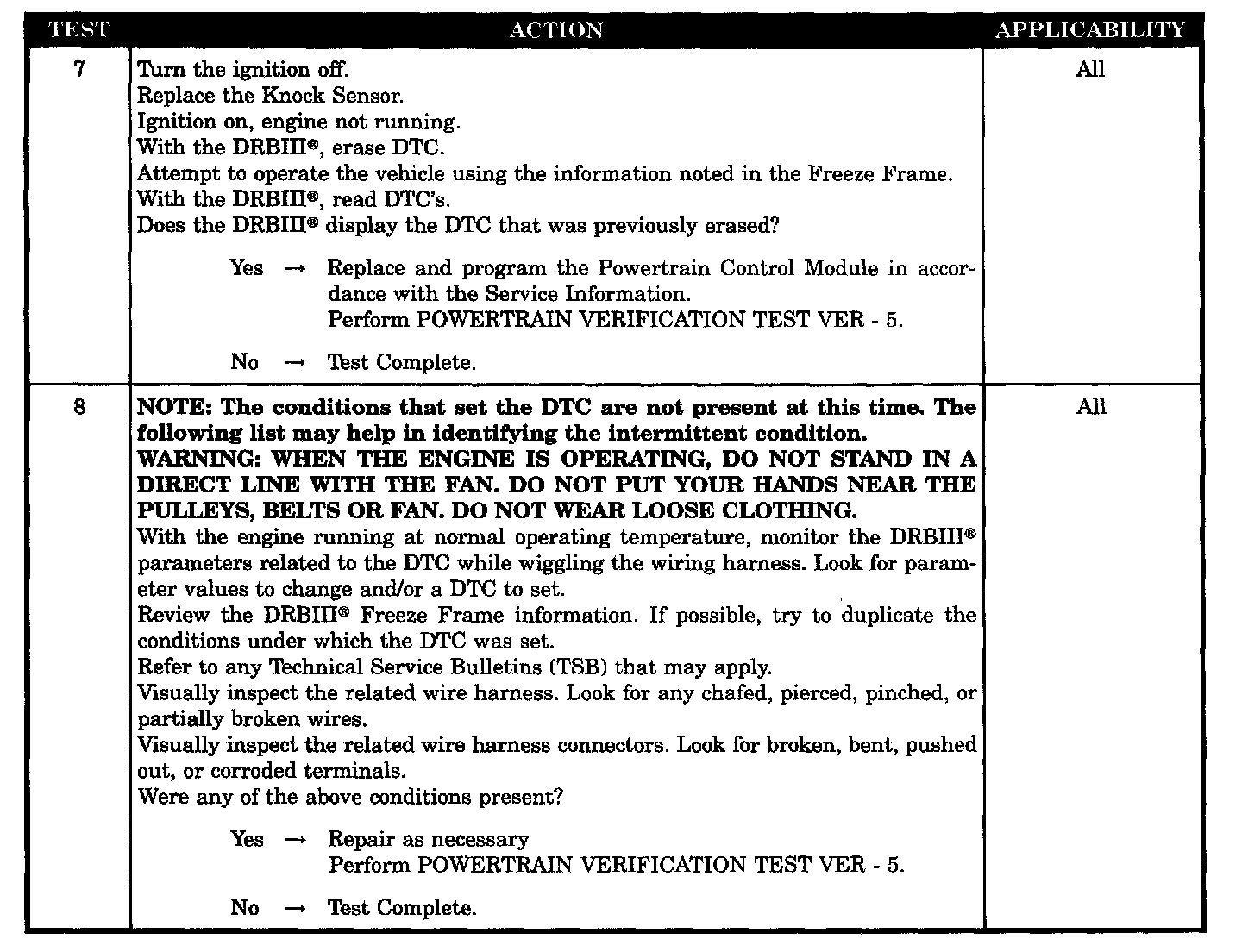

Tests 7 - 8:

SYMPTOM
P0330-KNOCK SENSOR # 2 CIRCUIT

TEST NOTE
This symptom is diagnosed using the test P0325-KNOCK SENSOR # 1 CIRCUIT.

WHEN MONITORED
With the ignition ON and the engine running.

SET CONDITION
Knock Sensor # 2 signal below minimum acceptable threshold voltage at particular engine speeds or above 5.0 volts.

POSSIBLE CAUSES
- Intermittent condition
- Knock sensor signal circuit shorted to voltage
- Knock sensor signal circuit shorted to ground
- Knock sensor signal circuit open
- Knock sensor signal circuit shorted to knock sensor return circuit
- Knock sensor return circuit open
- Knock sensor
