P0113

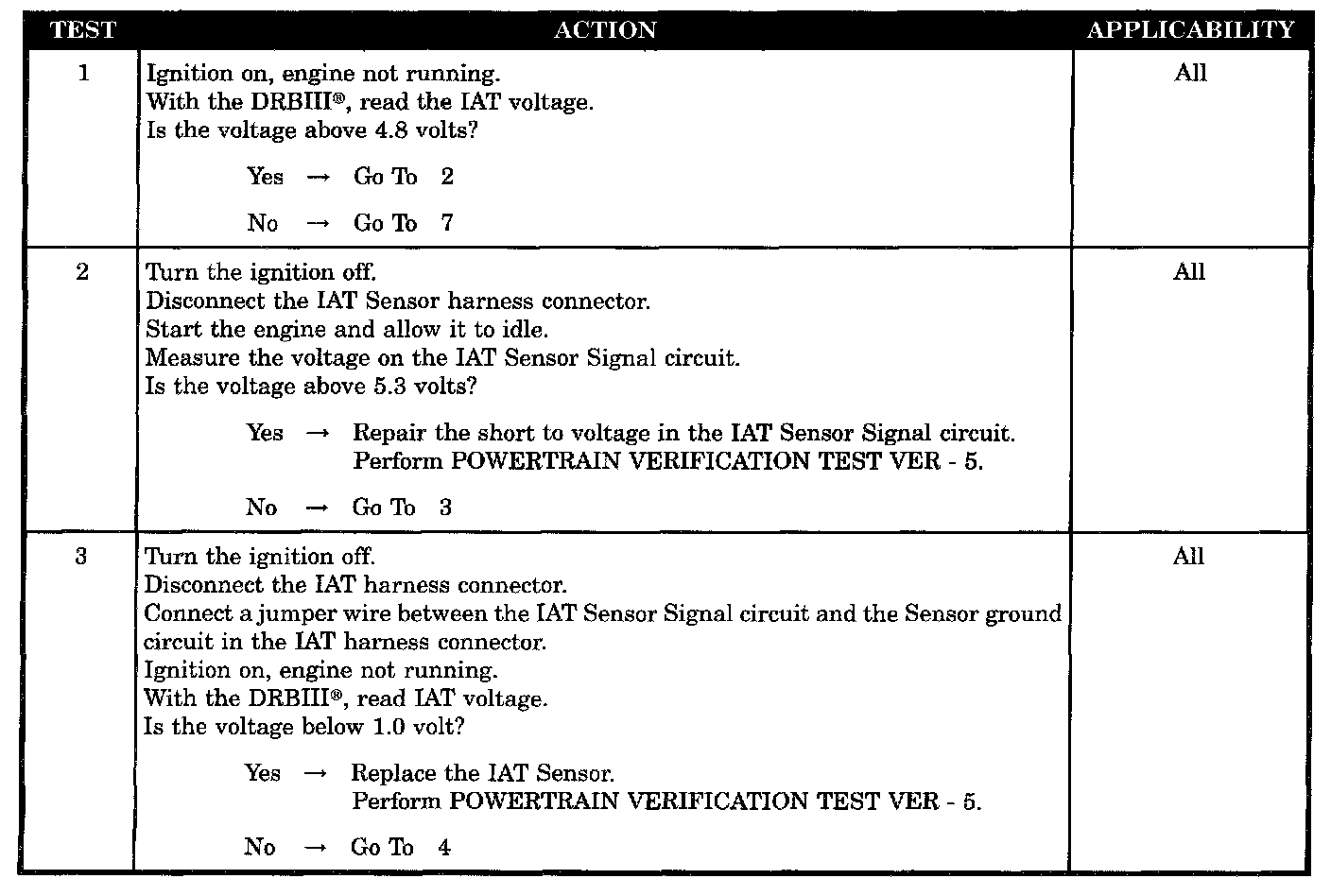

Tests 1 - 3:

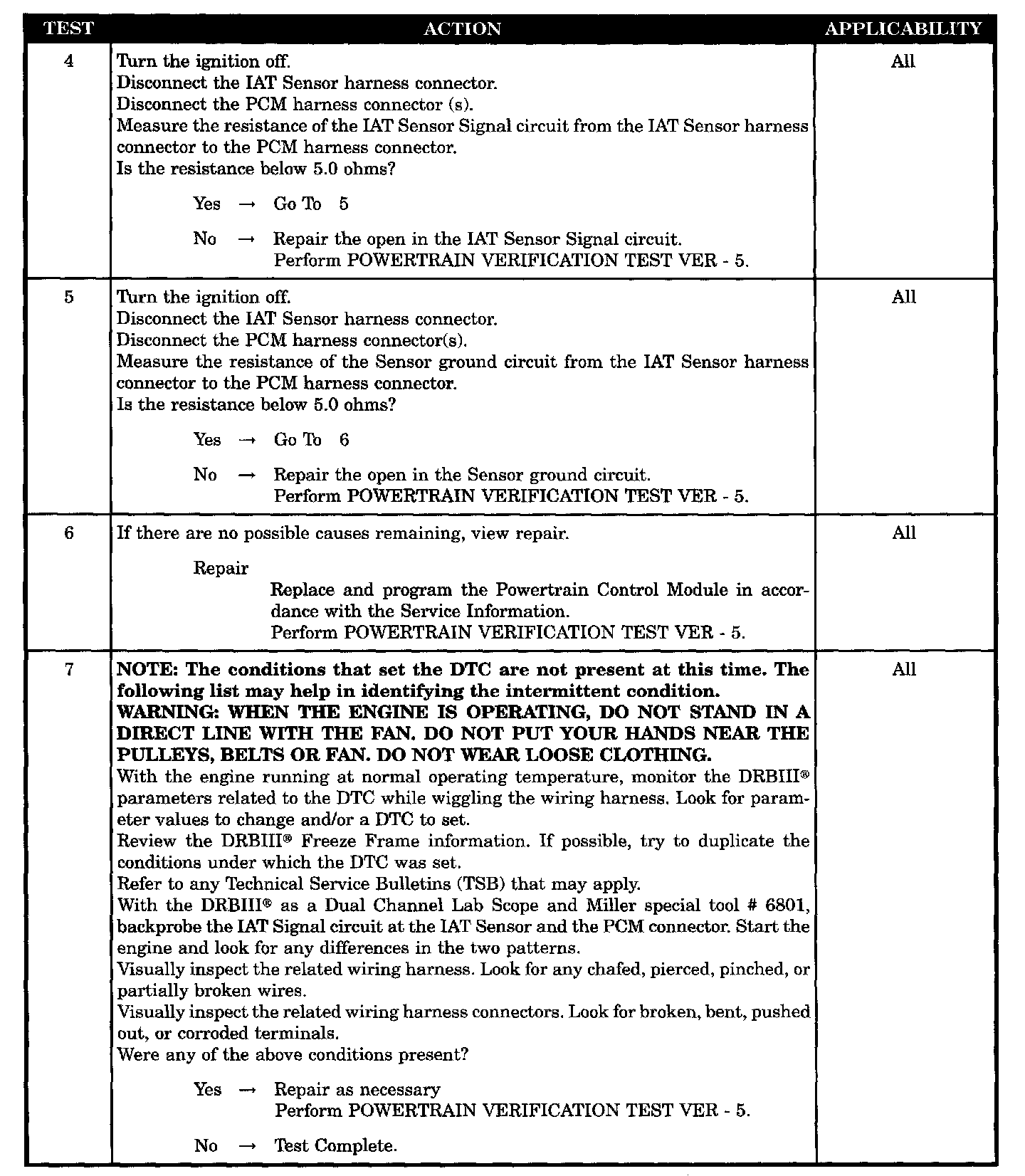

Tests 4 - 7:

SYMPTOM
P0113-INTAKE AIR TEMP SENSOR VOLTAGE HIGH

WHEN MONITORED
With the ignition ON and battery voltage greater than 10.4 volts.

SET CONDITION
The Intake Air Temperature (IAT) Sensor circuit voltage at the PCM goes above 4.9 volts.

POSSIBLE CAUSES
- Intermittent condition
- IAT sensor signal circuit shorted to voltage
- IAT sensor internal failure
- IAT sensor signal circuit open
- Sensor ground circuit open
- PCM
