Wiper Switch MUX Circuit Shorted to Ground

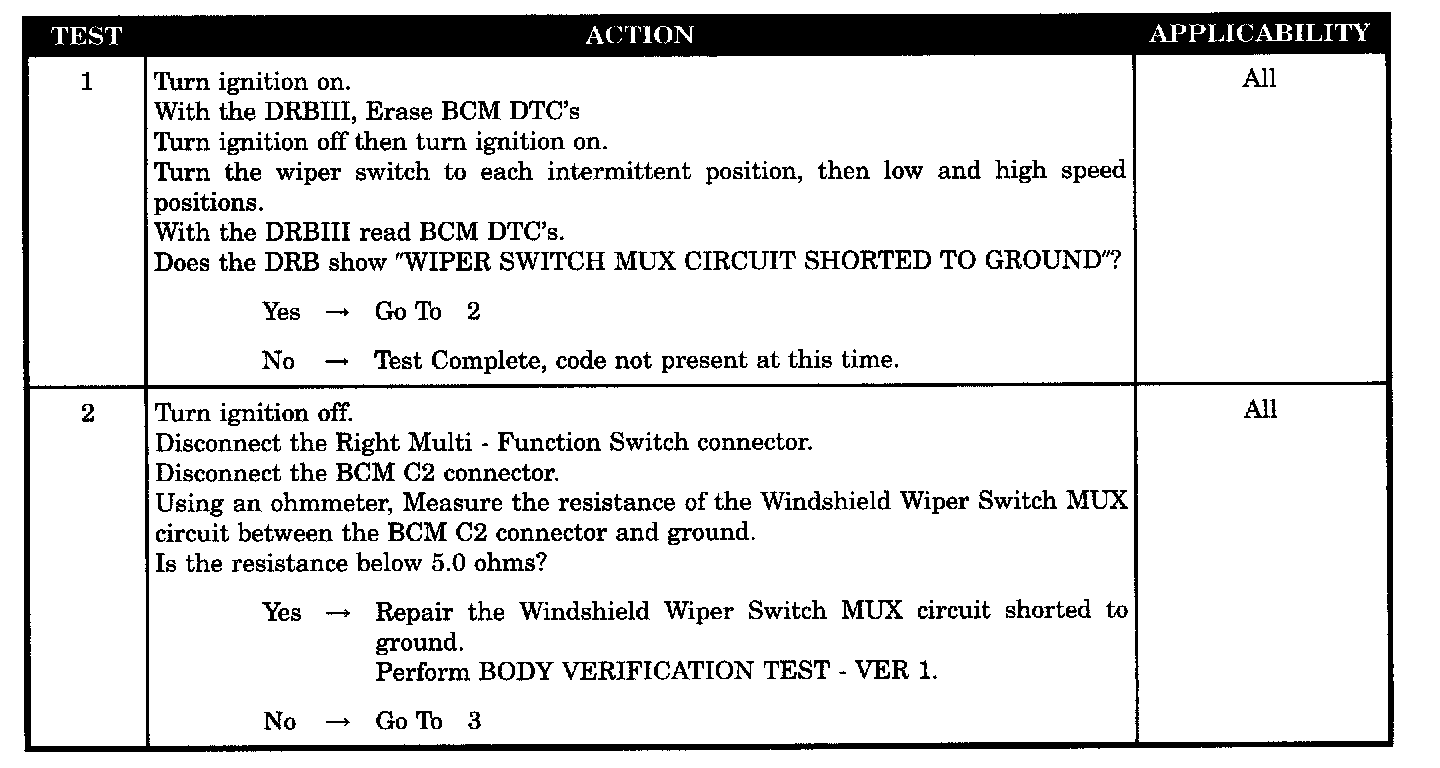

Tests 1 - 2:

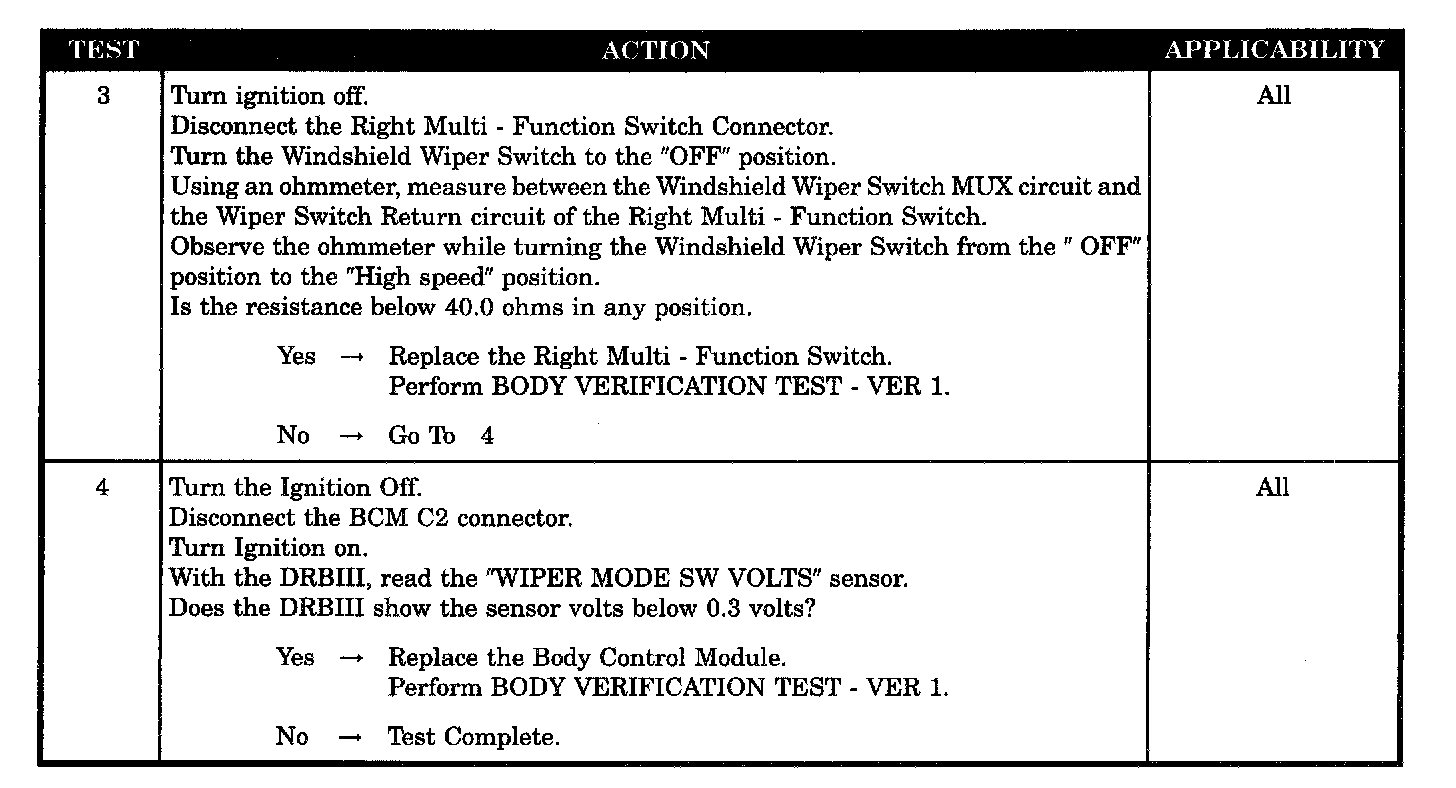

Tests 3 - 4:

SYMPTOM
WIPER SWITCH MUX CIRCUIT SHORTED TO GROUND

WHEN MONITORED
The ignition must be in the run position and battery voltage supplied to the BCM on the Fused B(+) circuit.

SET CONDITION
If the voltage on the wiper switch MUX circuit drops below 0.3 volts for more than 5 seconds the code will set.

POSSIBLE CAUSES
- Verifying active DTC - wiper switch MUX circuit shorted to ground
- Windshield wiper switch MUX circuit shorted to ground
- Right multi-function switch defective, wiper MUX circuit shorted to ground
- BCM defective-wiper MUX circuit shorted to ground
