VTSS Indicator Inoperative

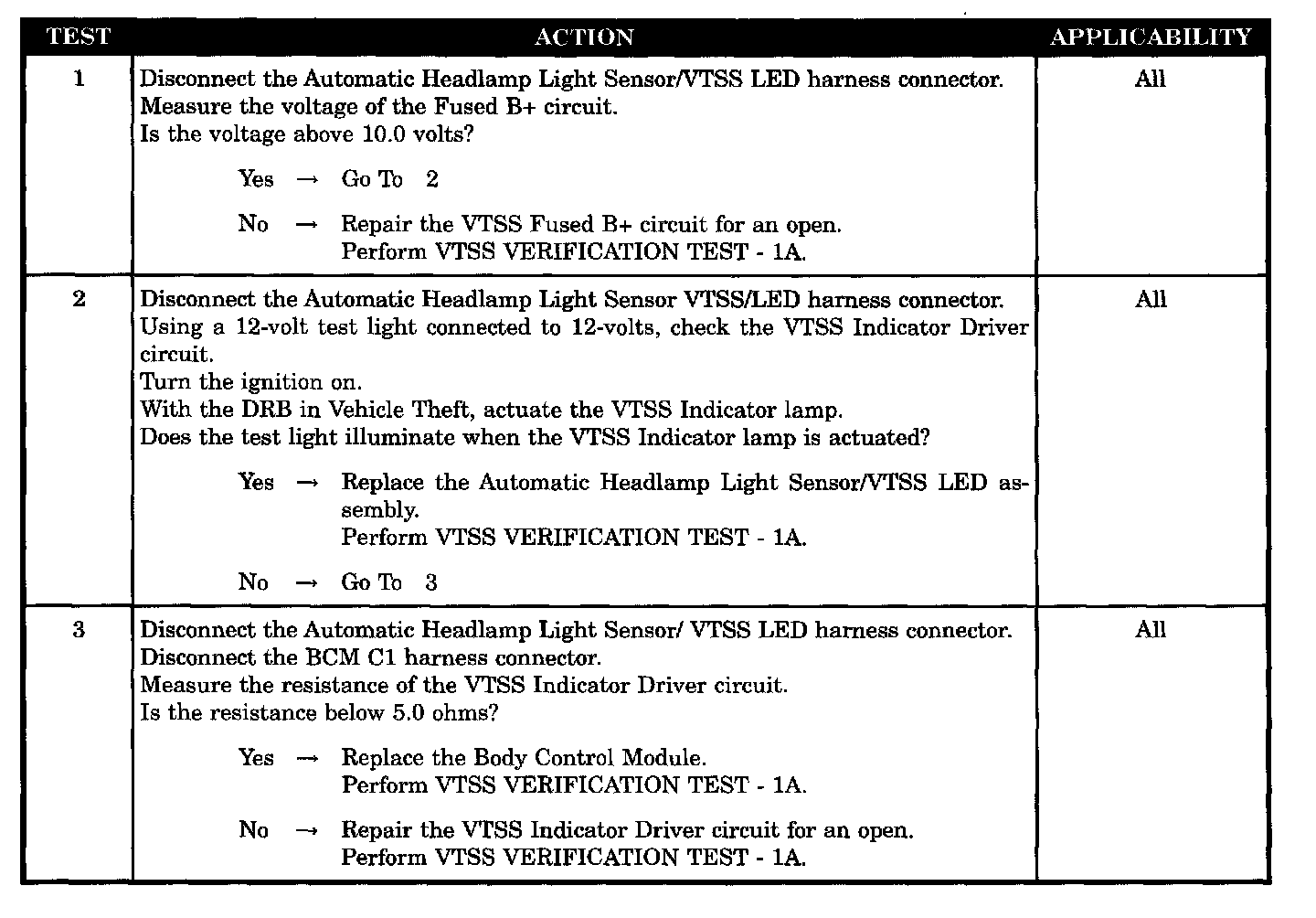

Tests 1 - 3:





SYMPTOM
VTSS INDICATOR INOPERATIVE

POSSIBLE CAUSES
- Open VTSS indicator fused B(+) supply
- Open VTSS led
- VTSS indicator driver circuit open
- Body control module-open internal VTSS driver
