Pre-Arm Timeout Failure (Export)

Test 1:

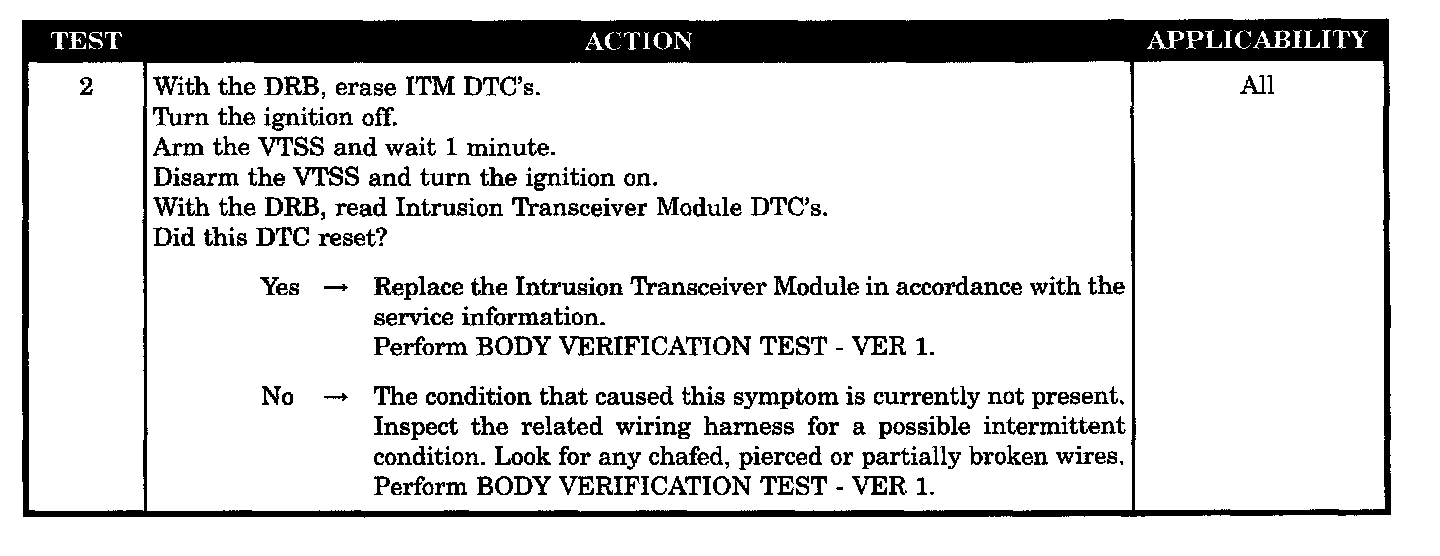

Test 2:

SYMPTOM
PRE-ARM TIMEOUT FAILURE (EXPORT ONLY)

TEST NOTE
This symptom is diagnosed using the test BCM MESSAGE NOT RECEIVED.

WHEN MONITORED
During the VTSS pre-arm process.

SET CONDITION
If the ITM does not receive arm message from the BCM after sixty seconds.

POSSIBLE CAUSES
- Intermittent condition
- ITM communication with the BCM
- Intrusion transceiver module
