Intrusion Transceiver Module - Transducer Failure (Export)

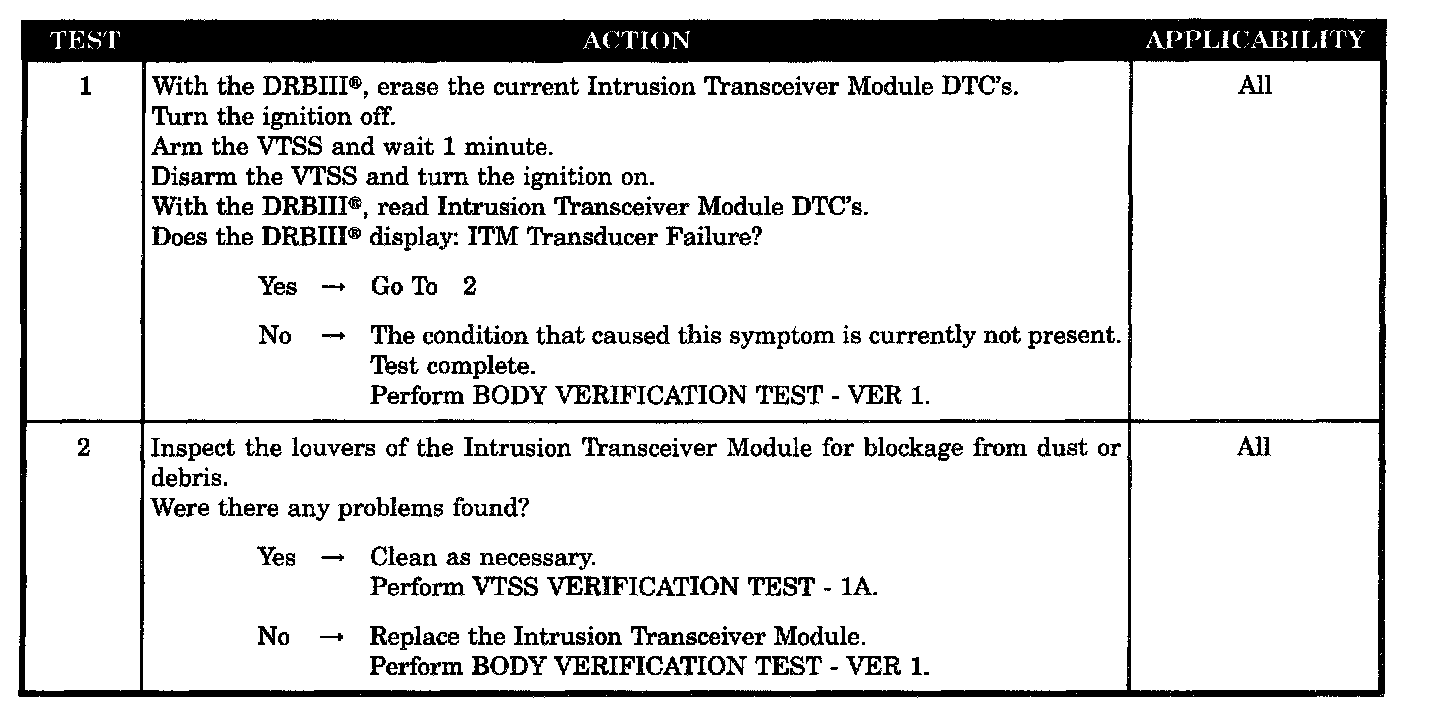

Tests 1 - 2:

SYMPTOM
ITM - TRANSDUCER FAILURE (EXPORT ONLY)

WHEN MONITORED
Continuously during VTSS pre-arm mode.

SET CONDITION
The ITM sends a test ultrasonic signal during the pre-arm process. If the test signal is not correctly received, the code will be set.

POSSIBLE CAUSES
- Blocked intrusion transceiver module sensors
- Intermittent condition
- Intrusion transceiver module
