Horn Relay Circuit Shorted High

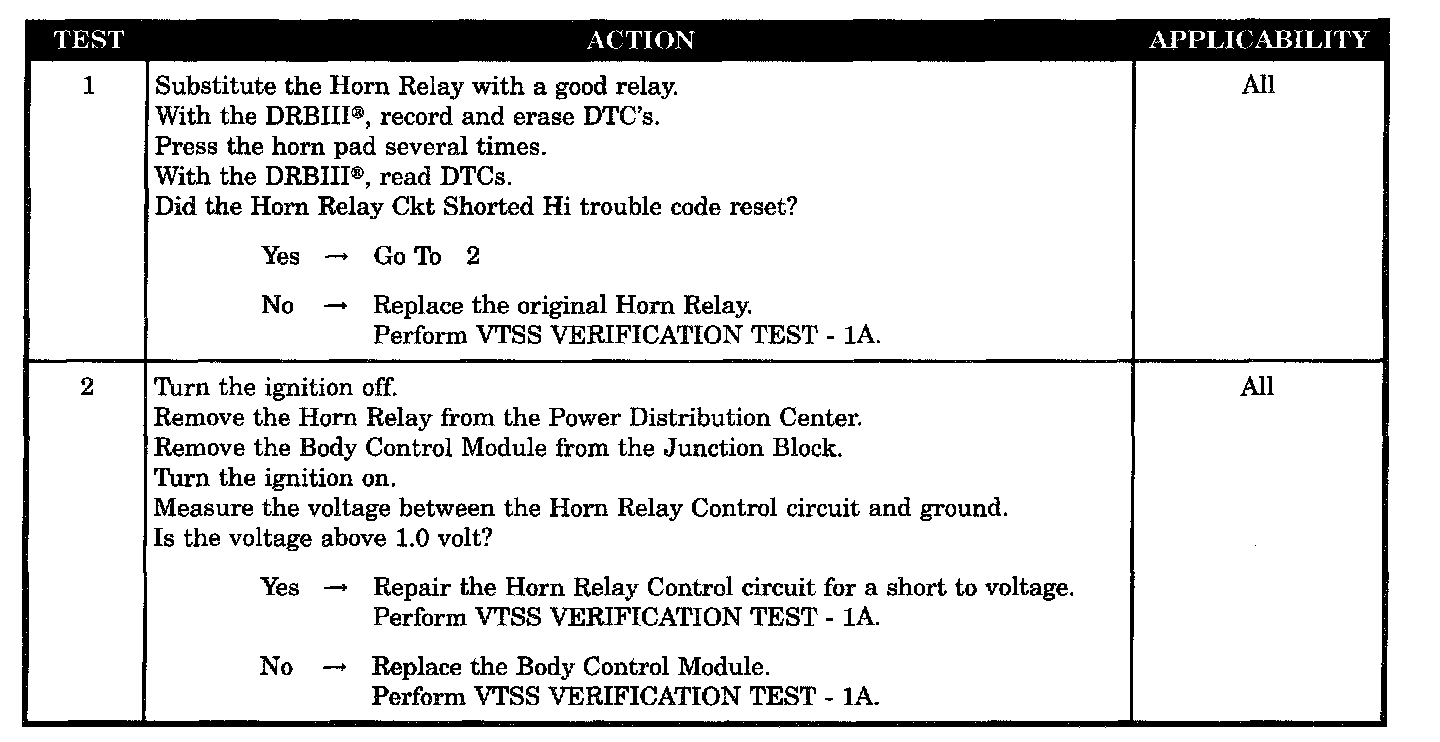

Tests 1 - 2:





SYMPTOM
HORN RELAY CIRCUIT SHORTED HI

POSSIBLE CAUSES
- Horn relay - internal shorted to voltage
- Horn relay control circuit shorted to voltage
- BCM - horn relay control shorted to voltage
