Hazard Lamps Fail to Flash With Alarm Tripped

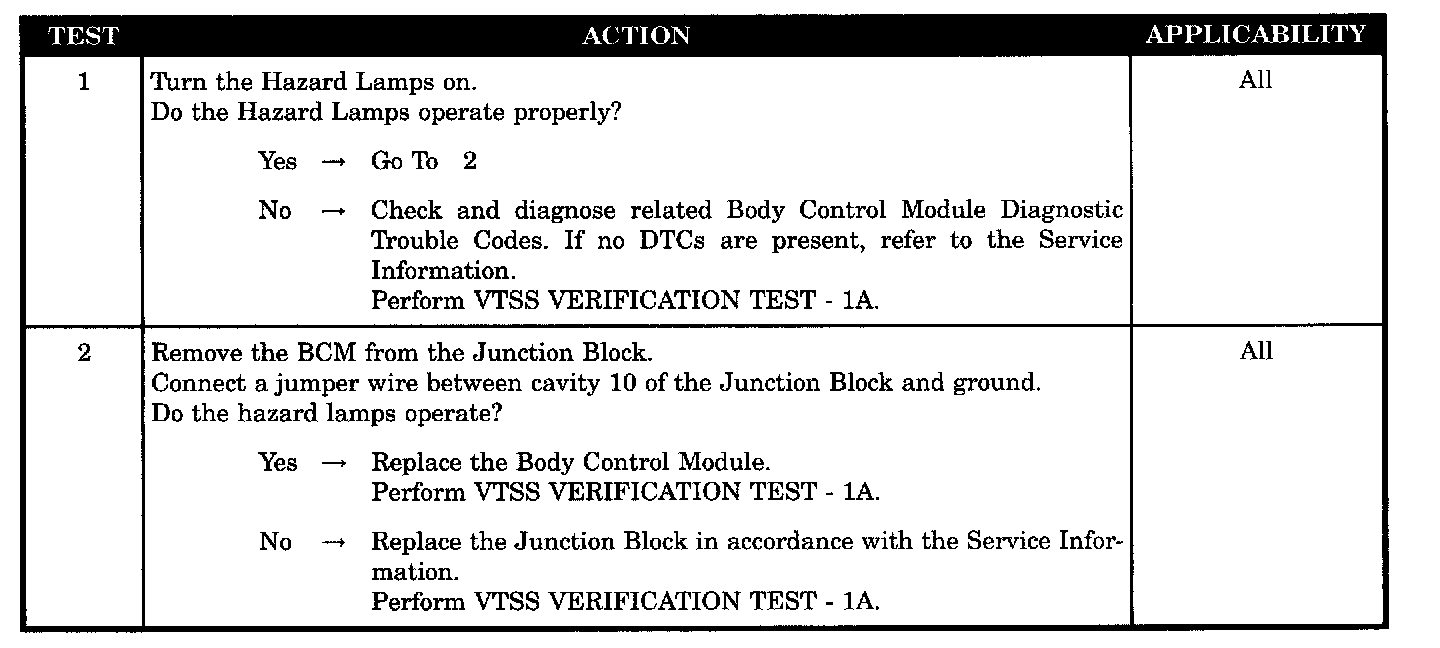

Tests 1 - 2:





SYMPTOM
HAZARD LAMPS FAIL TO FLASH WITH ALARM TRIPPED

POSSIBLE CAUSES
- Verify hazard operation
- BCM -- hazards inoperative with VTSS alarm tripped
- Junction block
