Sunroof Motor Inoperative

Test 1:

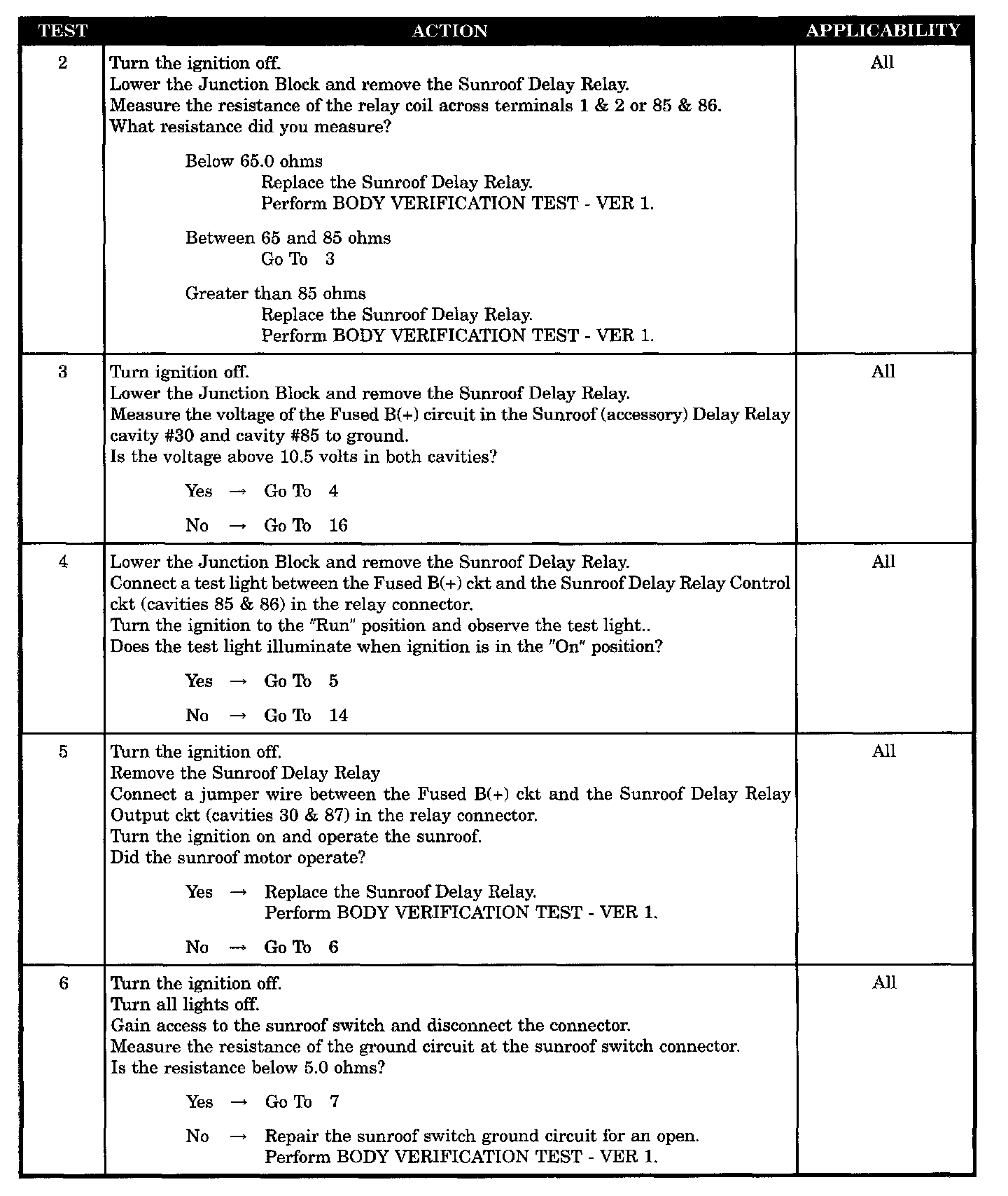

Tests 2 - 6:

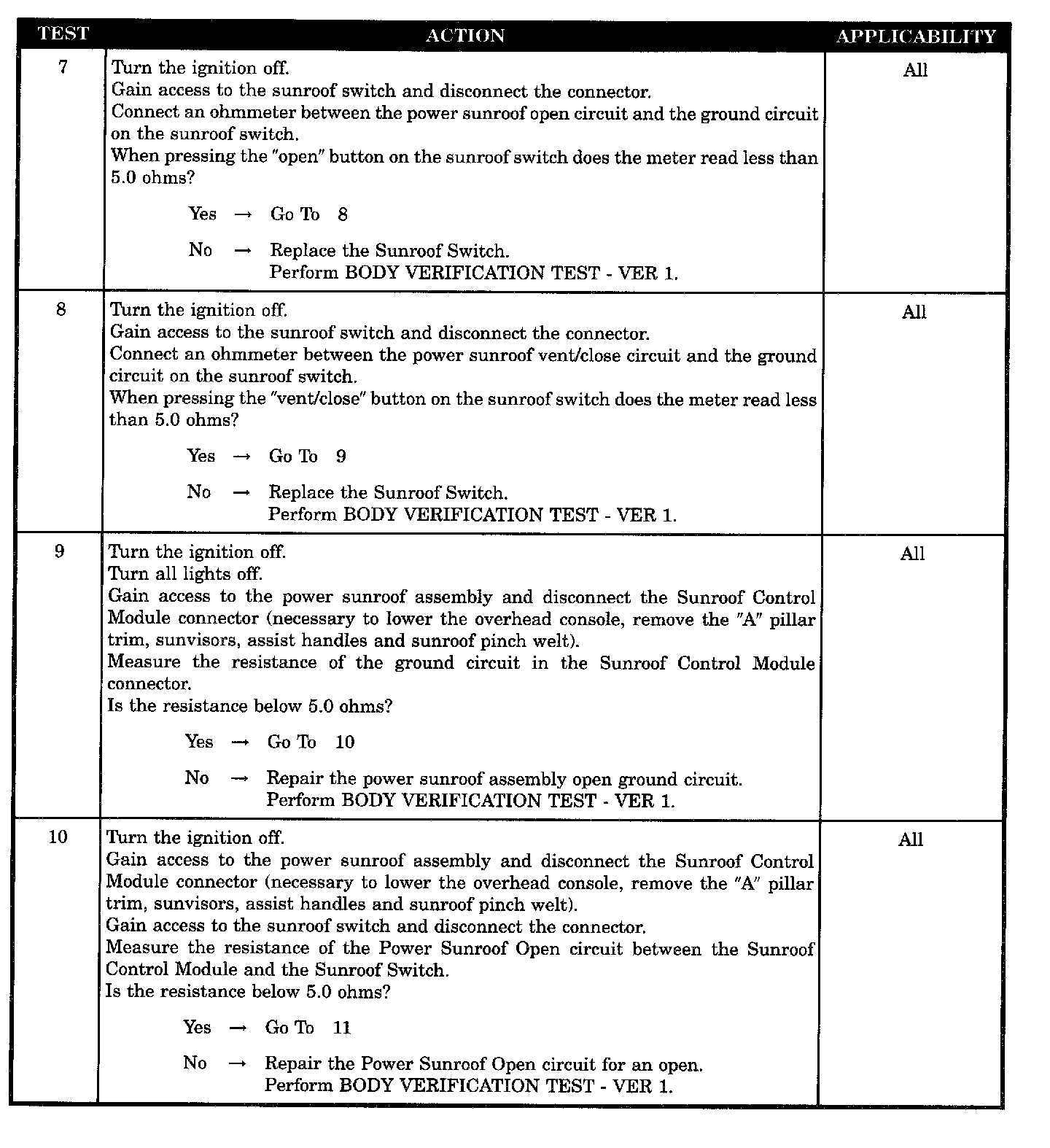

Tests 7 - 10:

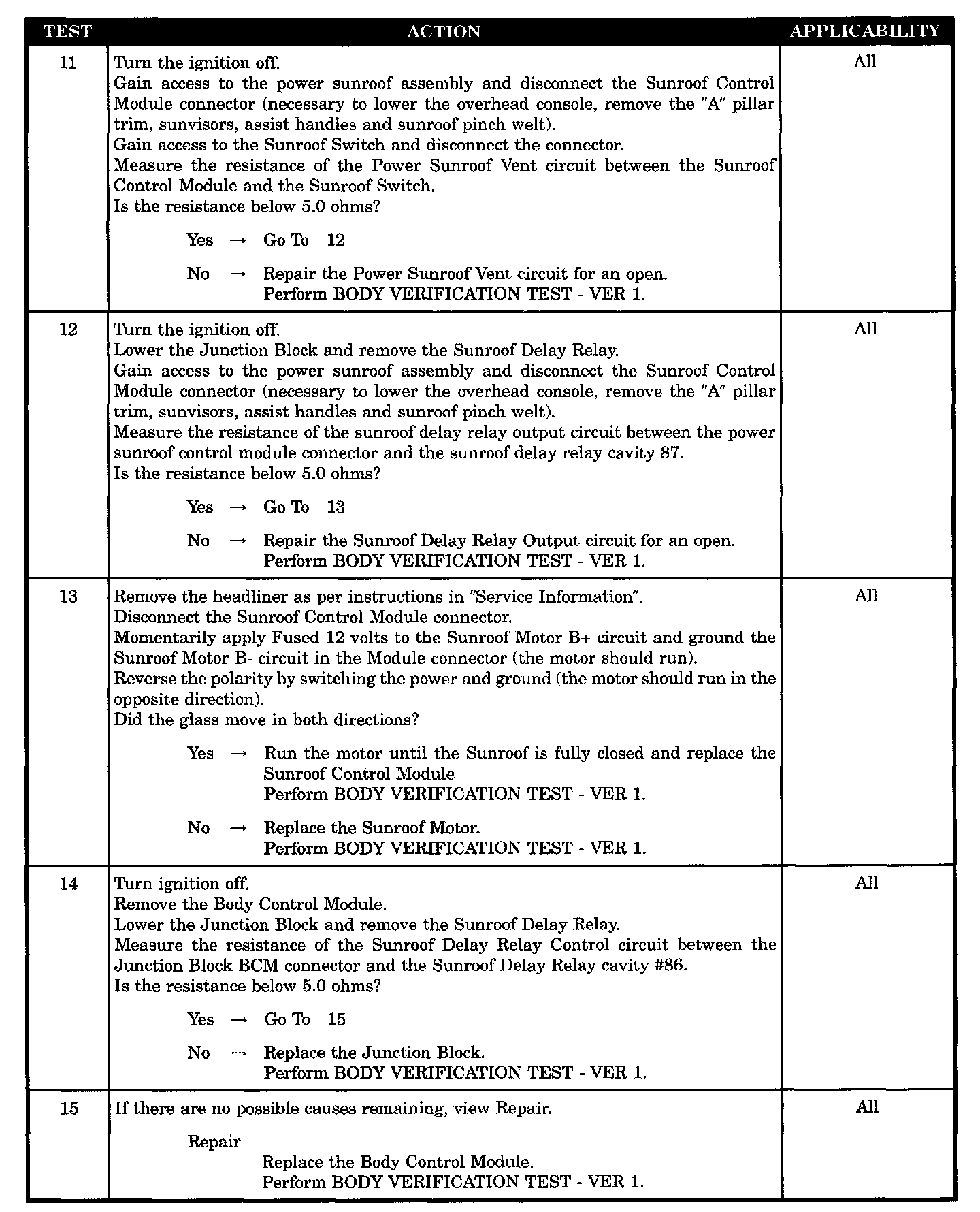

Tests 11 - 15:

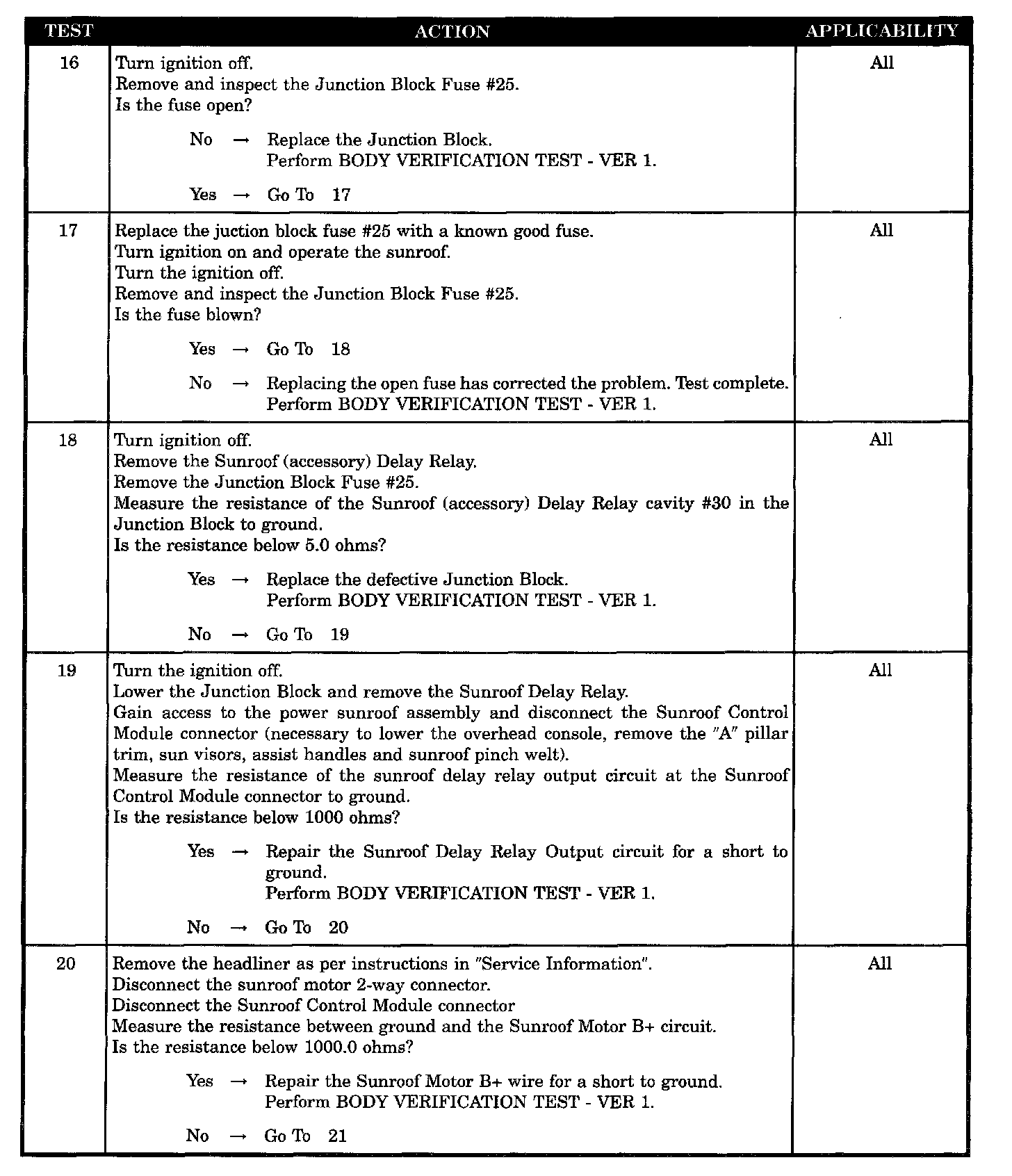

Tests 16 - 20:

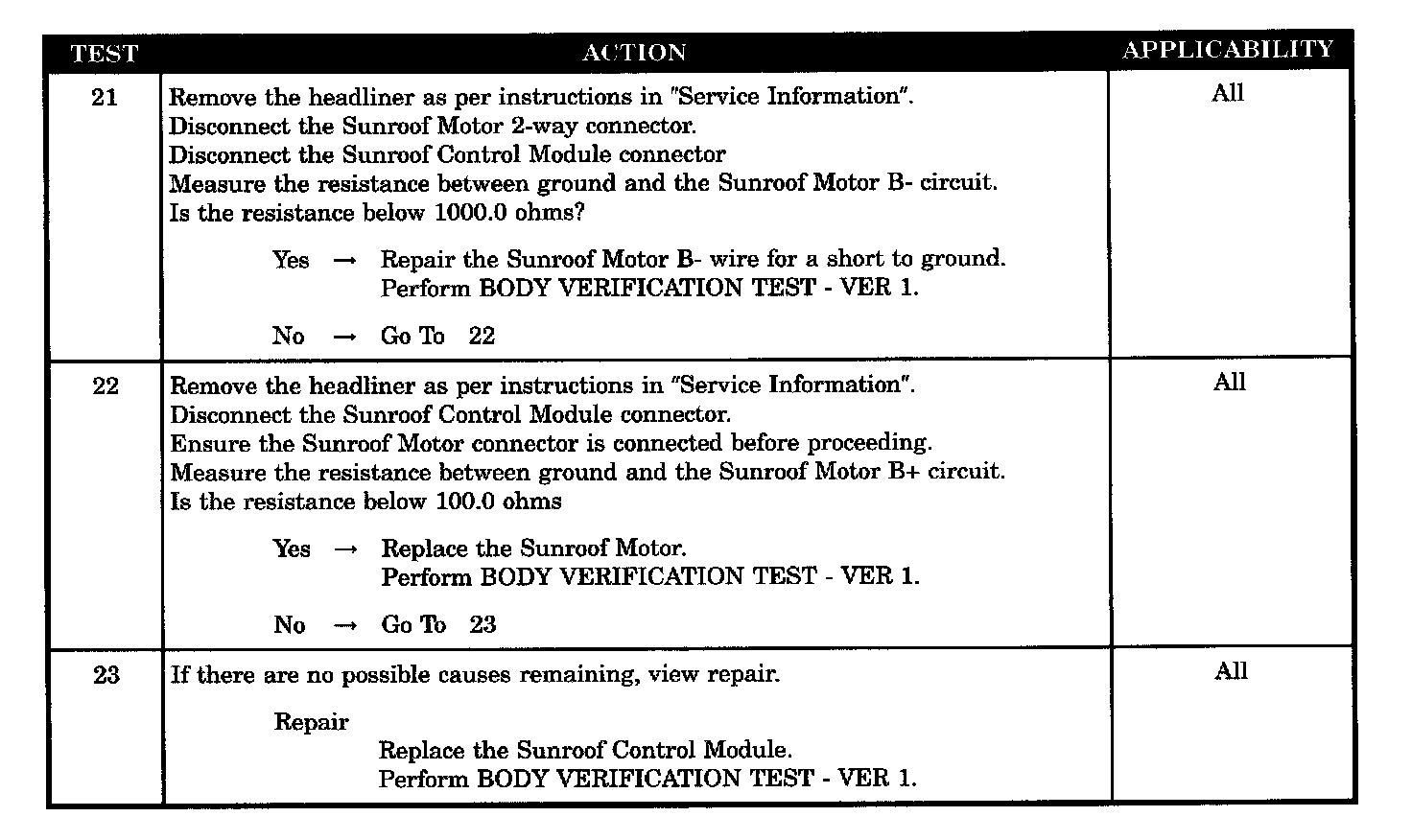

Tests 21 - 23:

SYMPTOM
SUNROOF MOTOR INOPERATIVE

POSSIBLE CAUSES
- Check DTC
- Open relay contact
- Sunroof delay relay coil
- Sunroof switch ground circuit open
- Blown fuse # 25
- Fuse # 25 defective
- Junction block defective
- Sunroof delay relay control J/B open
- Sunroof open switch open
- Sunroof delay relay output shorted to ground
- Sunroof vent switch open
- Sunroof motor B+ wire shorted to ground
- Sunroof motor B- wire shorted to ground
- Sunroof ground circuit open
- Sunroof motor shorted to ground
- "Open" power sunroof open circuit
- Open power sunroof vent circuit
- Open sunroof delay relay output circuit
- Body control module - open relay control
- Sunroof assembly module or motor open
- Sunroof control module - shorted to ground
- Sunroof control module open
