Passenger Squib 2 Shorted to Ground

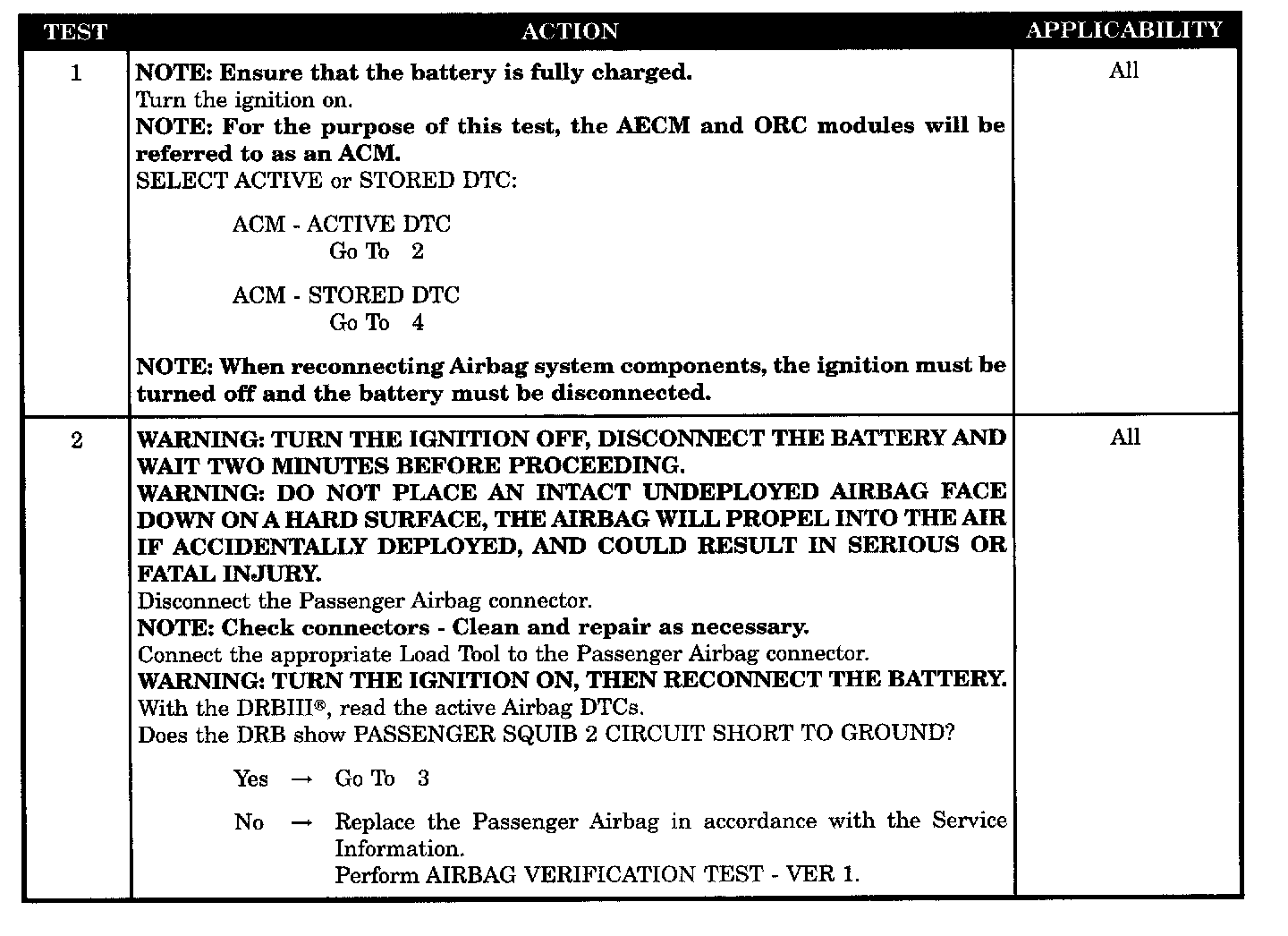

Tests 1 - 2:

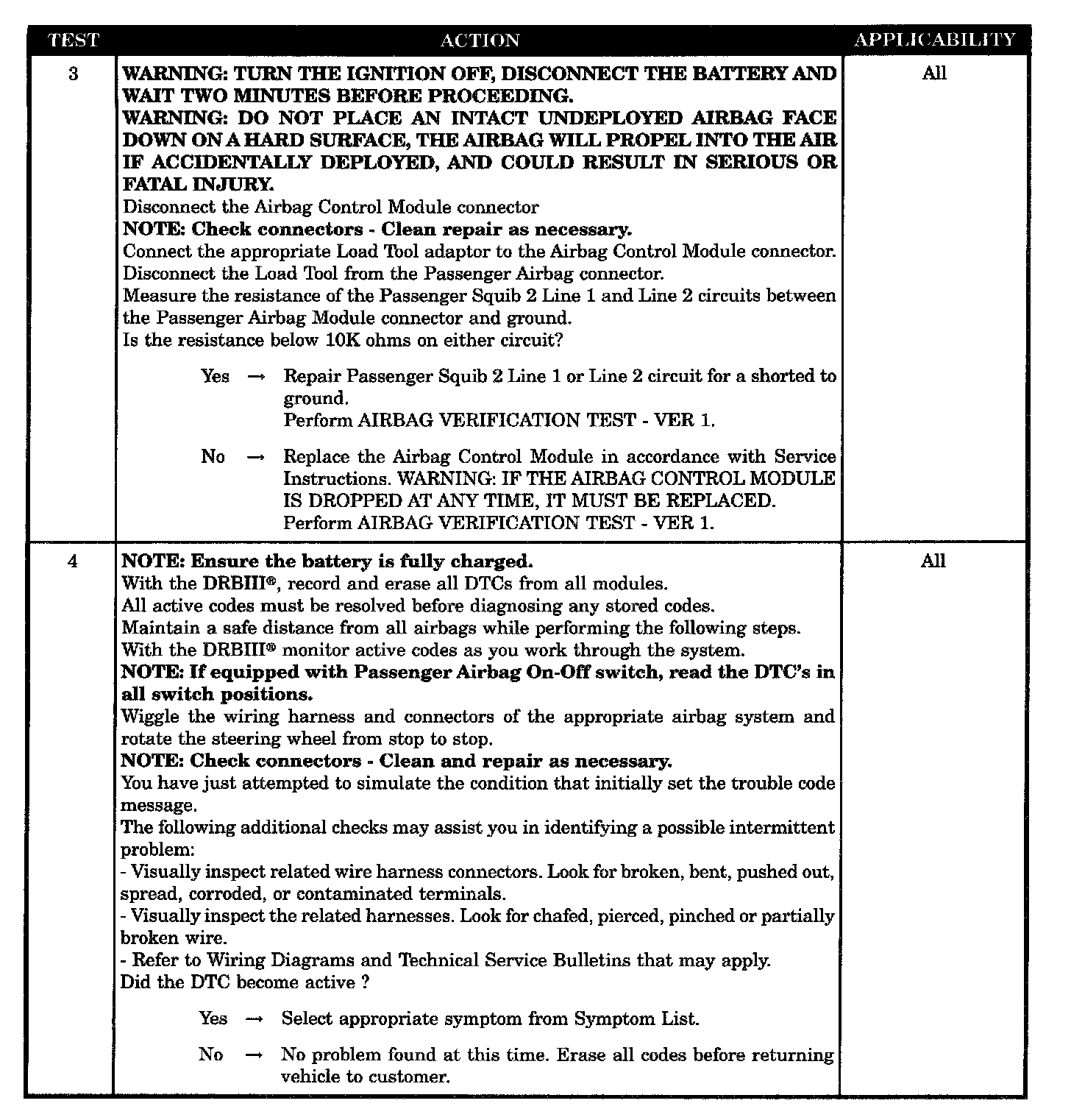

Tests 3 - 4:

SYMPTOM
PASSENGER SQUIB 2 SHORTED TO GROUND

WHEN MONITORED
When the ignition is ON, the ACM monitors the resistance of the Passenger Squib 2 circuits for low resistance.

SET CONDITION
The ACM has detected a shorted to ground in the Passenger Squib 2 circuits.

POSSIBLE CAUSES
- Passenger airbag circuit shorted to ground
- Passenger squib 2 line 1 or line 2 shorted to ground
- ACM, passenger squib 2 circuit shorted to ground
- Stored code or intermittent condition
- Active code present
