Passenger Squib 1 Shorted to Battery

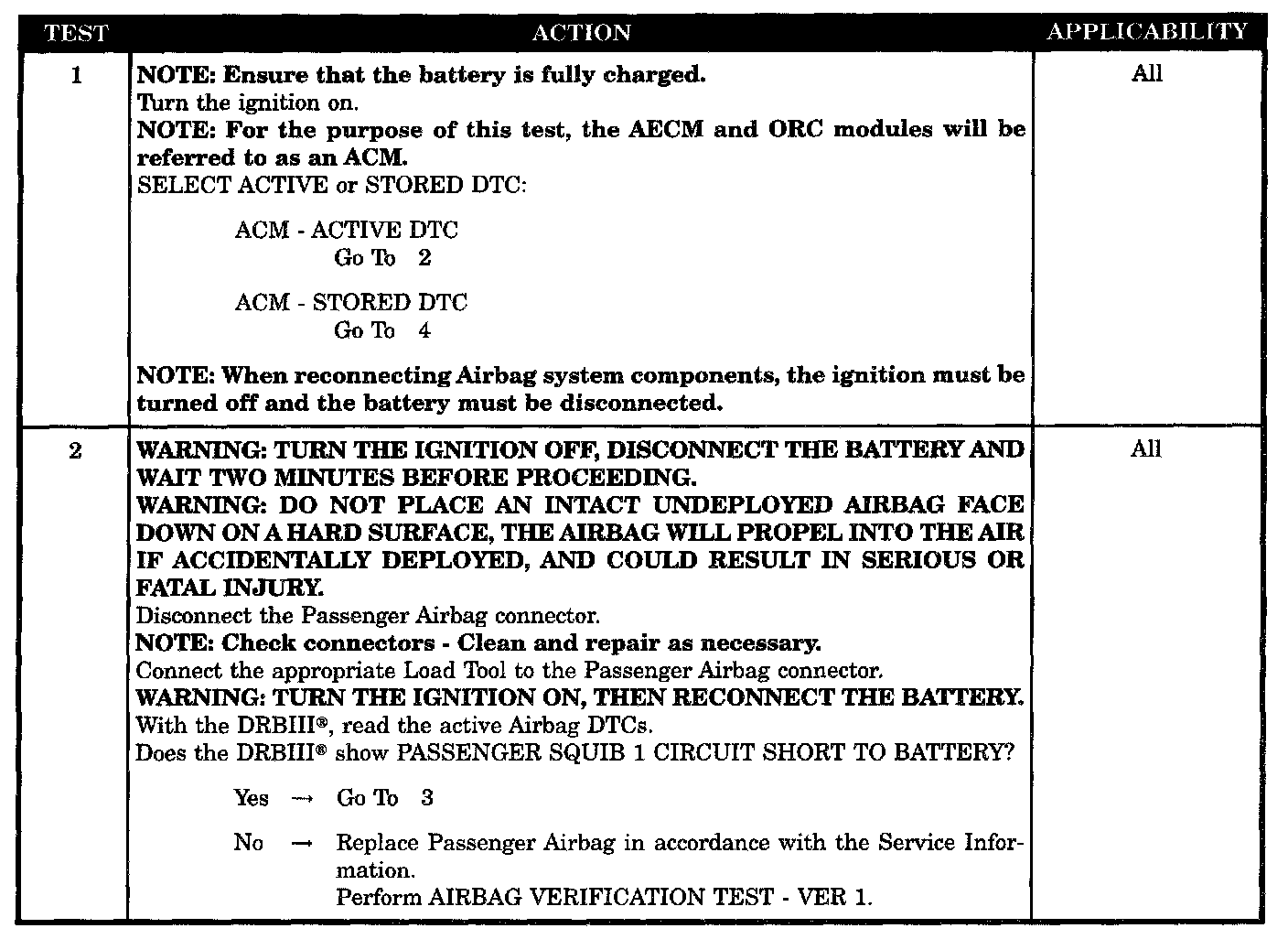

Tests 1 - 2:

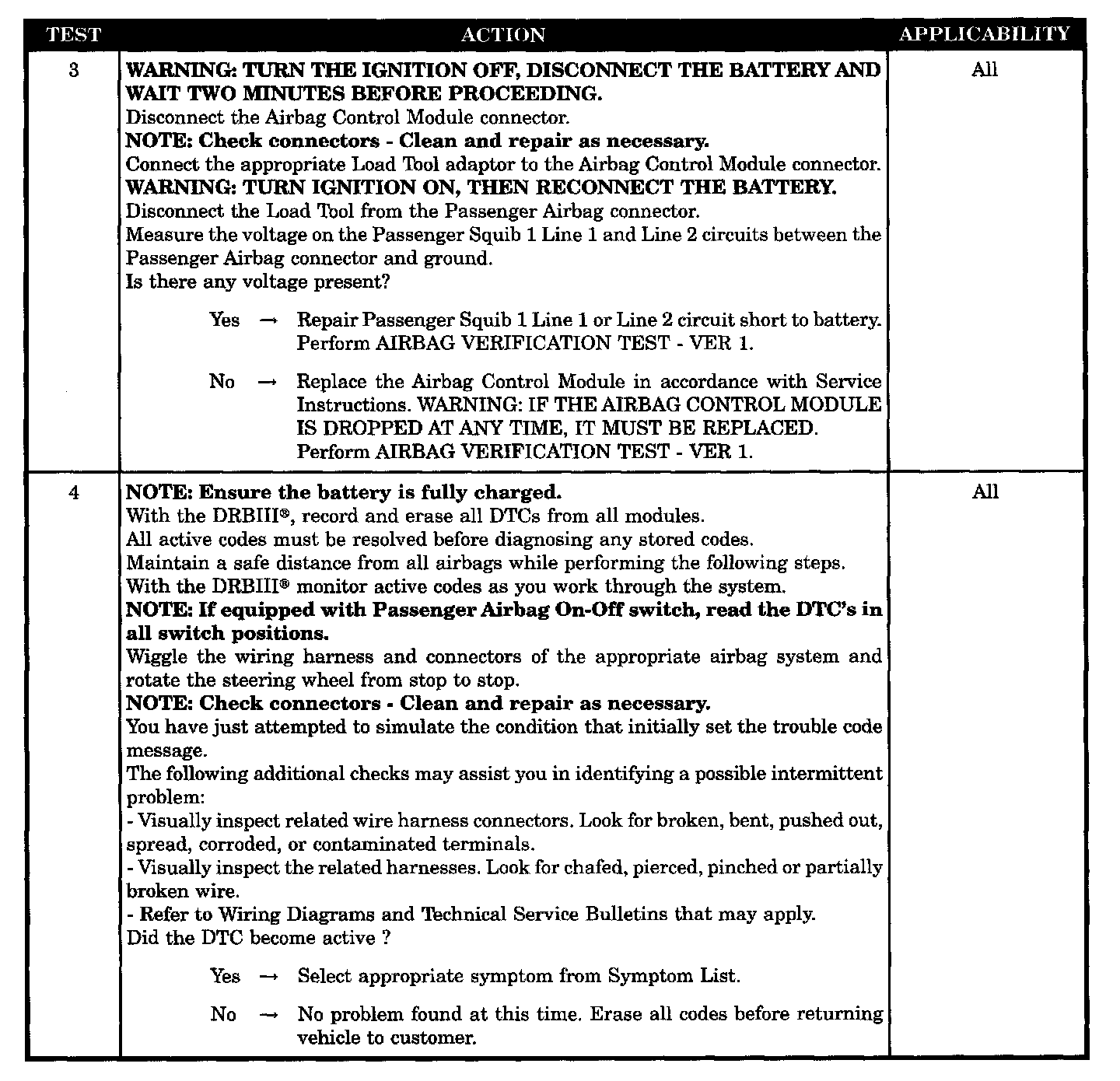

Tests 3 - 4:

SYMPTOM
PASSENGER SQUIB 1 SHORTED TO BATTERY

WHEN MONITORED
When the ignition is ON, the ACM monitors the voltage of the Passenger Squib 1 circuits.

SET CONDITION
The ACM has detected high voltage on the Passenger Squib 1 circuits.

POSSIBLE CAUSES
- Passenger airbag circuit shorted to battery
- Passenger squib 1 line 1 or line 2 shorted to battery
- ACM, passenger squib 1 circuit shorted to battery
- Stored code or intermittent condition
- Active code present
