Passenger Side Impact Sensor Internal 1

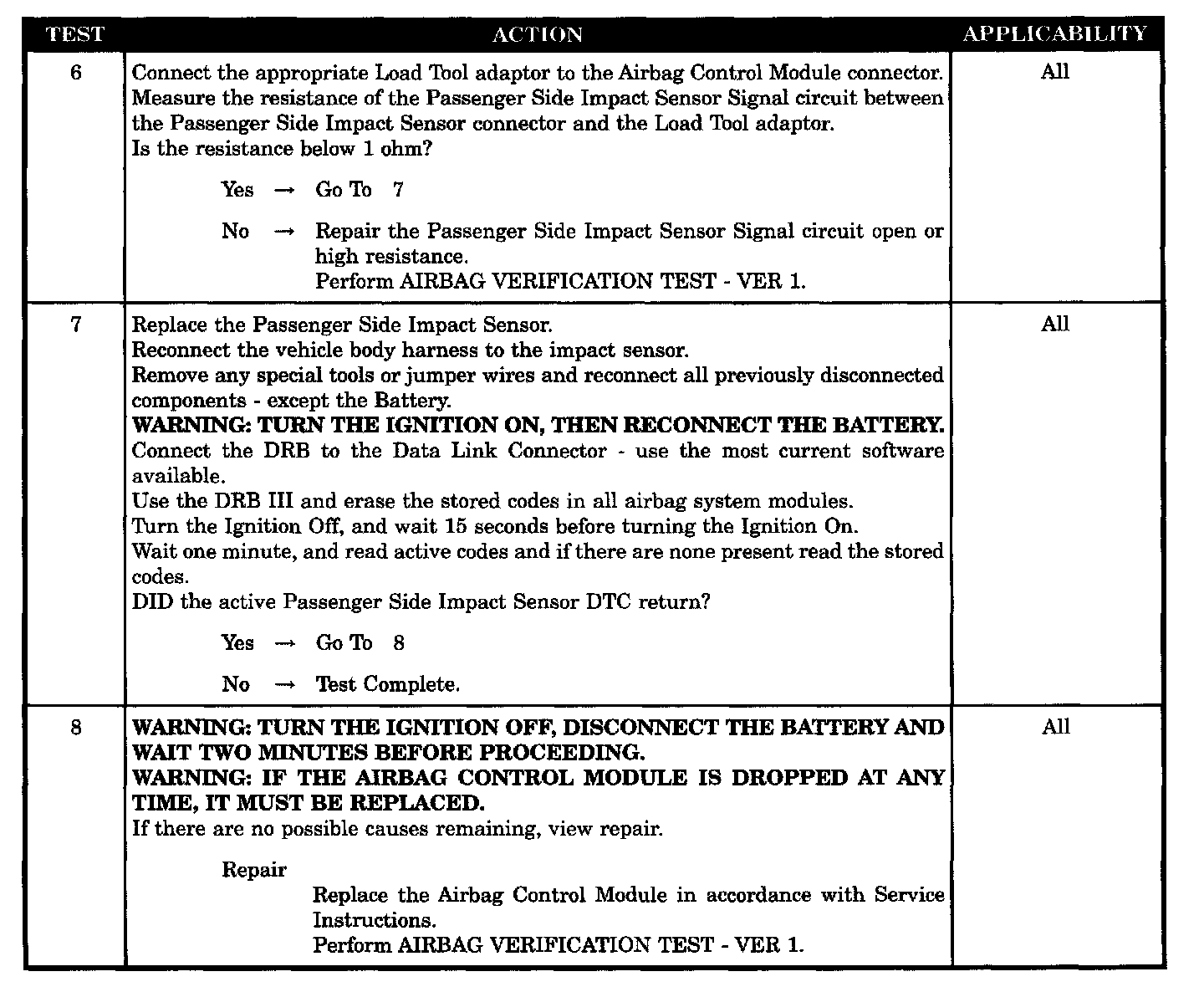

Tests 6 - 8:

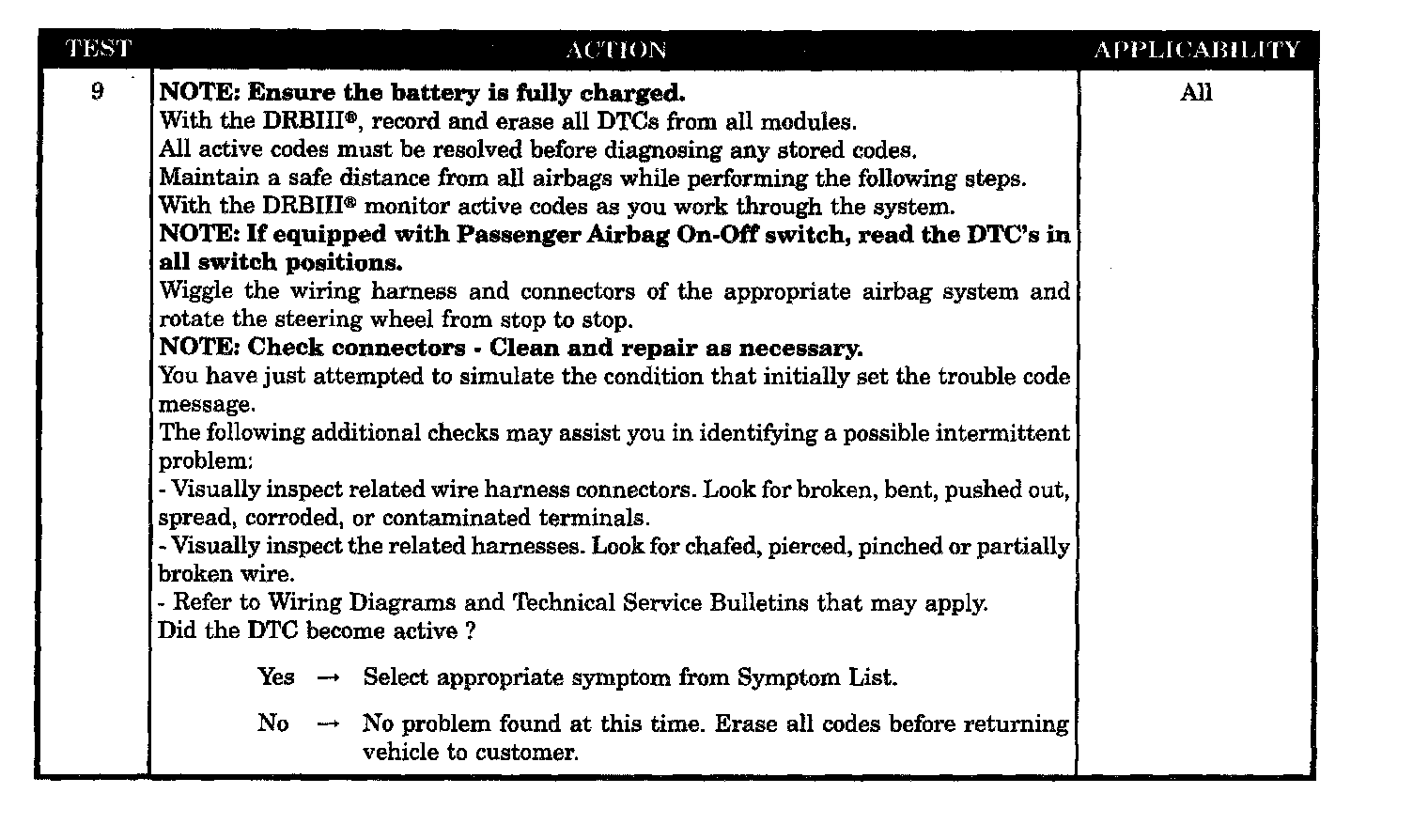

Test 9:

SYMPTOM
PASSENGER SIDE IMPACT SENSOR INTERNAL 1

TEST NOTE
This symptom is diagnosed using the test NO PASSENGER SIDE IMPACT SENSOR TEST.

WHEN MONITORED
The Right Front Impact sensors is equipped with onboard diagnostics to monitor the sensors internal circuits. If a problem is identified the sensor sends the Passenger Side Impact sensor internal 1 message to the ACM.

SET CONDITION
The code will set if the ACM receives an internal 1 message from the Passenger Side Impact Sensor.

POSSIBLE CAUSES
- Signal circuit shorted to battery
- Signal circuit shorted to ground
- Passenger side sensor circuits shorted together
- Ground circuit open
- Signal circuit open
- ACM, passenger side impact sensor
- Repair is complete
- Stored code or intermittent condition
- Active code present
