Passenger Seat Belt Switch Shorted to Ground

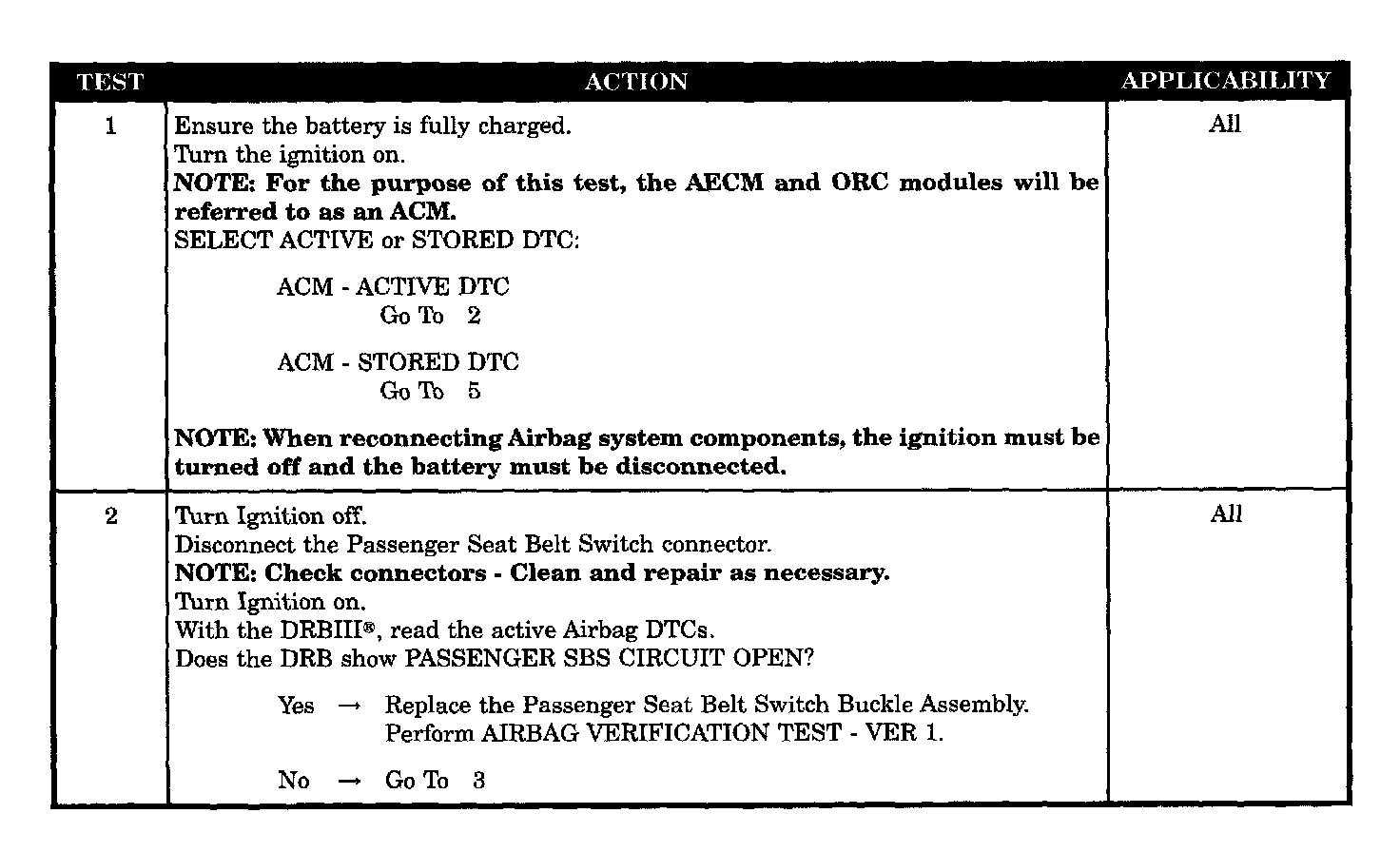

Tests 1 - 2:

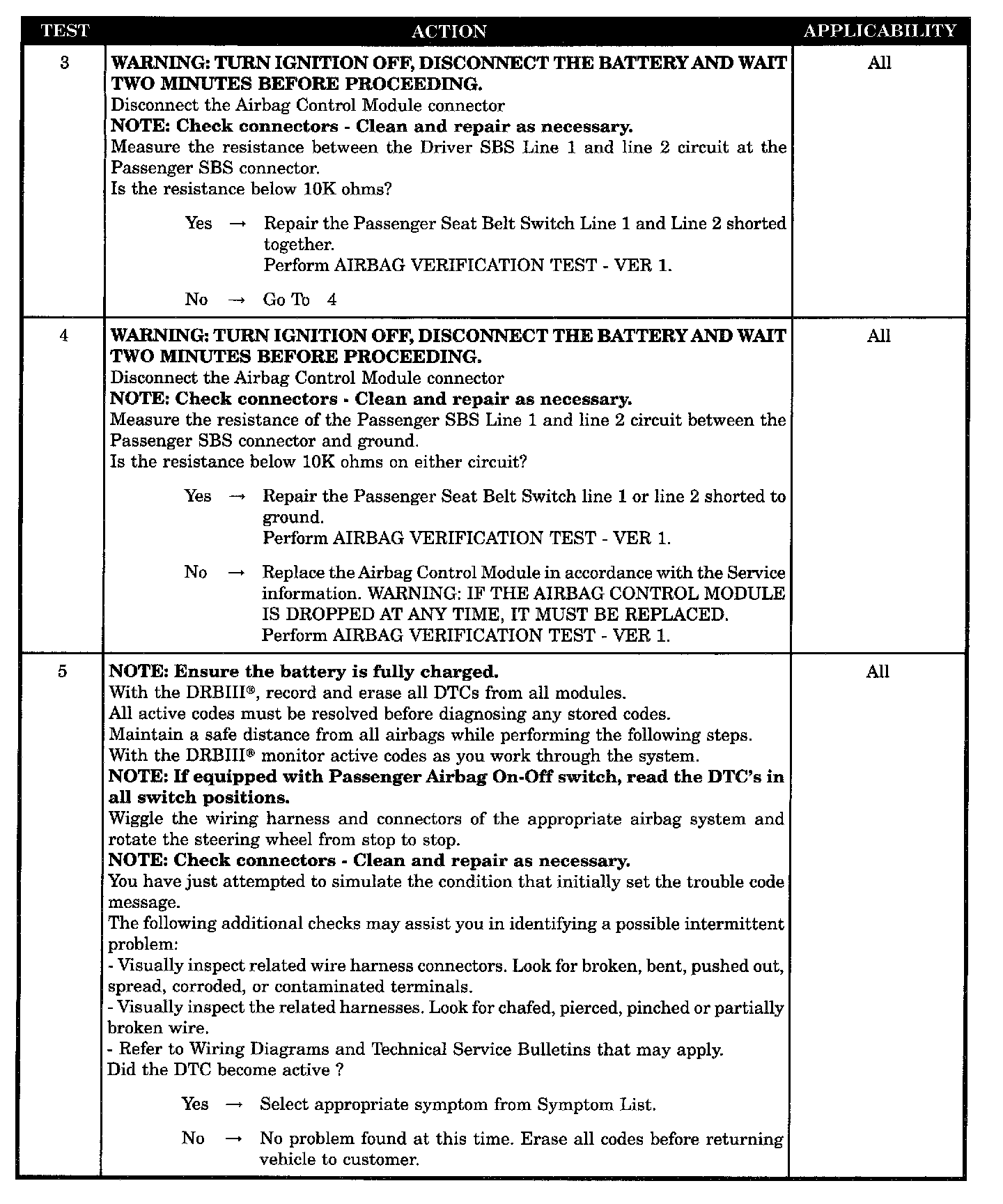

Tests 3 - 5:

SYMPTOM
PASSENGER SEAT BELT SWITCH SHORTED TO GROUND

WHEN MONITORED
The ACM monitors the Seat Belt Buckle Switch circuit for a shorted together or shorted to ground condition.

SET CONDITION
The code will set if the ACM detects low circuit voltage.

POSSIBLE CAUSES
- Passenger seat belt switch short together or to ground
- Passenger seat belt switch circuits shorted together
- Passenger seat belt switch circuits shorted to ground
- ACM, passenger seat belt switch shorted to ground
- Stored code or intermittent condition
- Active code present
