Passenger Seat Belt Switch Shorted to Battery

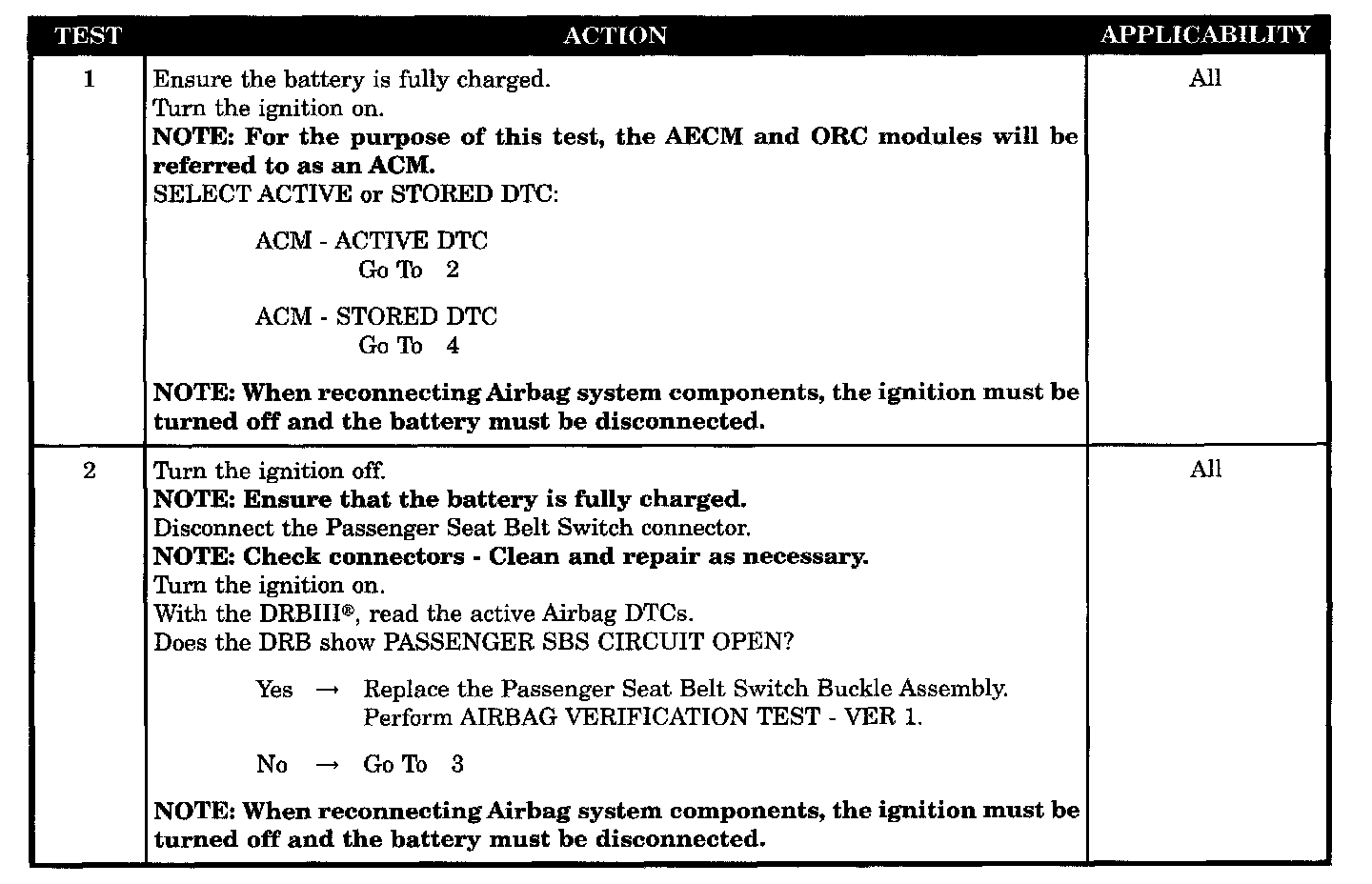

Tests 1 - 2:

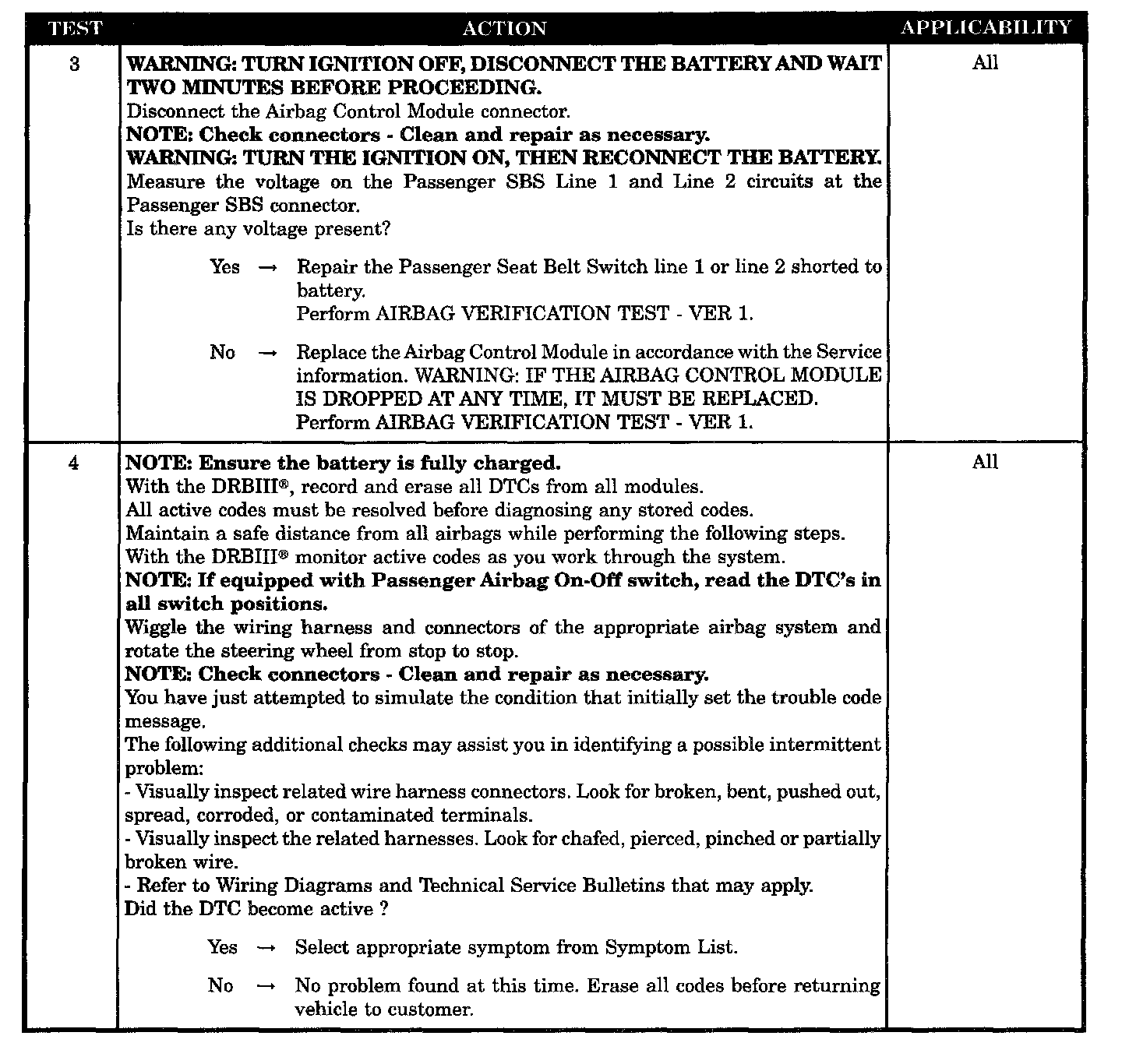

Tests 3 - 4:

SYMPTOM
PASSENGER SEAT BELT SWITCH SHORTED TO BATTERY

WHEN MONITORED
The ACM monitors the Seat Belt Buckle Switch circuit for an shorted to battery.

SET CONDITION
The code will set if the ACM detects high circuit voltage.

POSSIBLE CAUSES
- Passenger seat belt switch circuits shorted to battery
- Passenger seat belt switch shorted to battery
- ACM, passenger seat belt switch shorted to battery
- Stored code or intermittent condition
- Active code present
