Passenger Seat Belt Switch Circuit Open

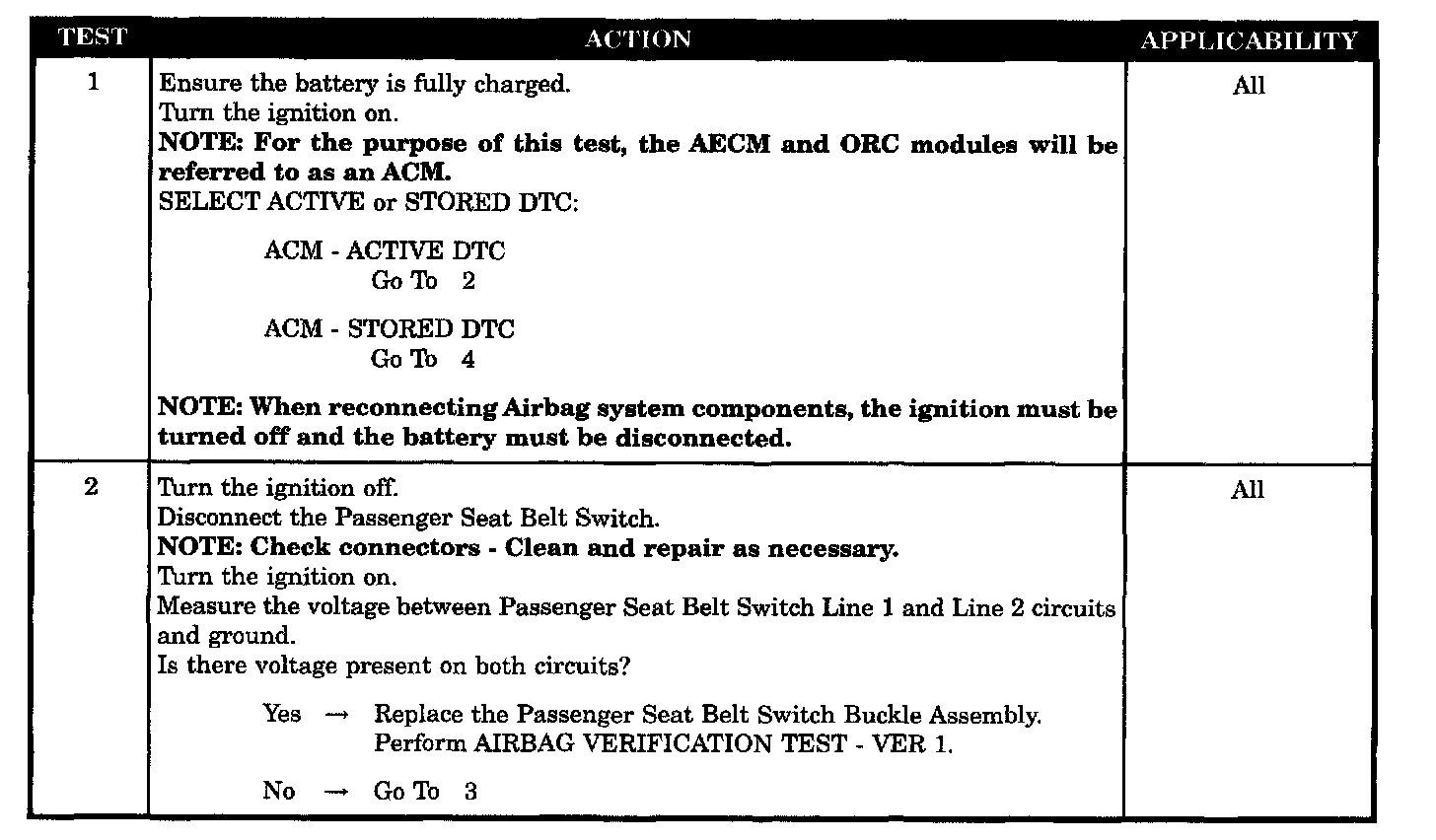

Tests 1 - 2:

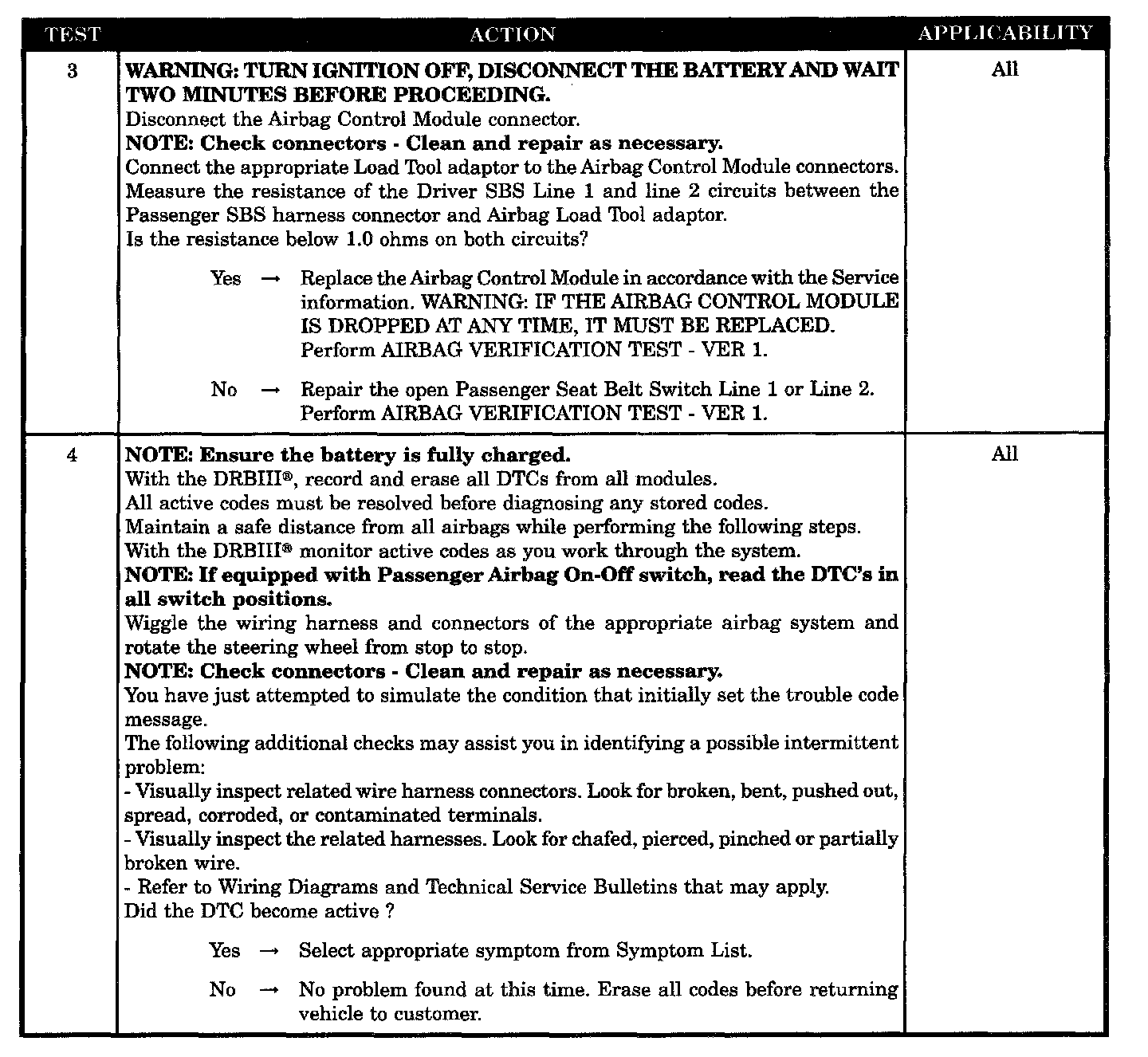

Tests 3 - 4:

SYMPTOM
PASSENGER SEAT BELT SWITCH CIRCUIT OPEN

WHEN MONITORED
The ACM monitors the Seat Belt Buckle Switch circuit for an open condition.

SET CONDITION
The code will set if the ACM does not detect the correct circuit voltage.

POSSIBLE CAUSES
- Passenger SBS open
- Passenger seat belt switch circuits open
- ACM, passenger seat belt switch circuit open
- Stored code or intermittent condition
- Active code present
