Driver Squib 2 Shorted to Ground

Test 1:

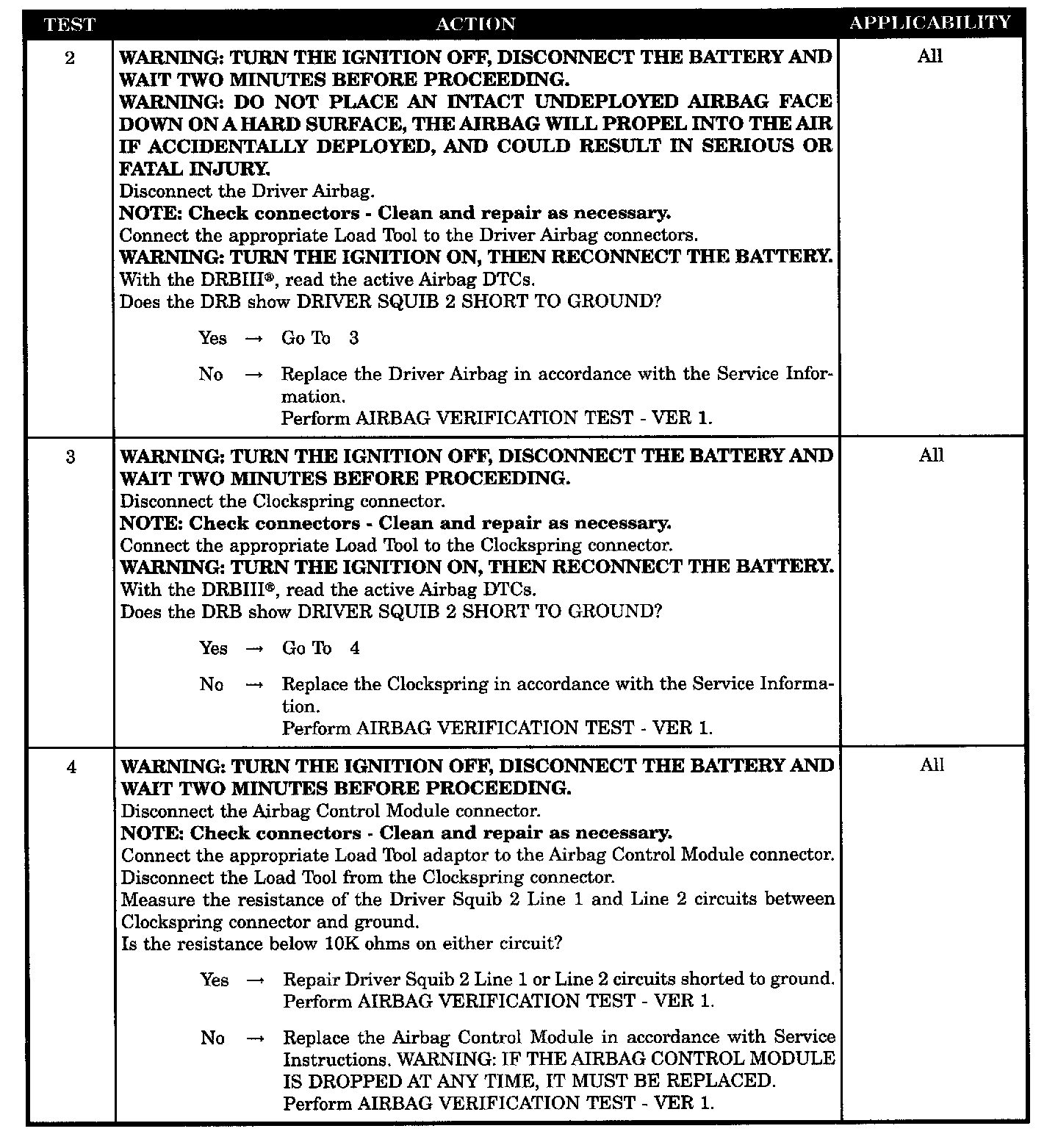

Tests 2 - 4:

Test 5:

SYMPTOM
DRIVER SQUIB 2 SHORTED TO GROUND

WHEN MONITORED
With the ignition ON the ACM monitors the resistance of the Driver Squib 2 circuits.

SET CONDITION
The ACM has detected a shorted to ground in the Driver Squib 2 circuits.

POSSIBLE CAUSES
- Driver airbag, circuit shorted to ground
- Clockspring, driver squib 2 circuit shorted to ground
- Driver squib 2 line 1 or line 2 shorted to ground
- ACM, driver squib 2 circuit shorted to ground
- Stored code or intermittent condition
- Active code present
