Driver Seat Belt Switch Shorted to Battery

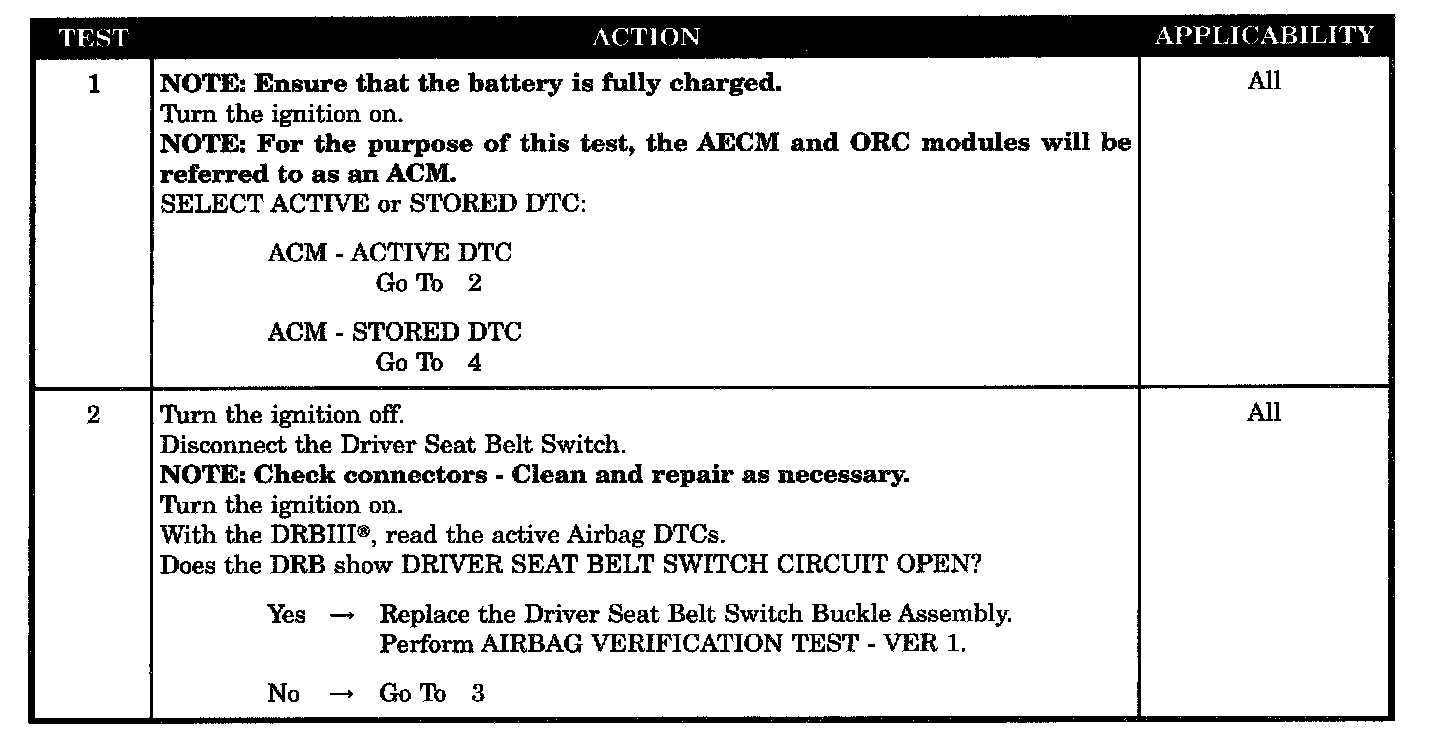

Tests 1 - 2:

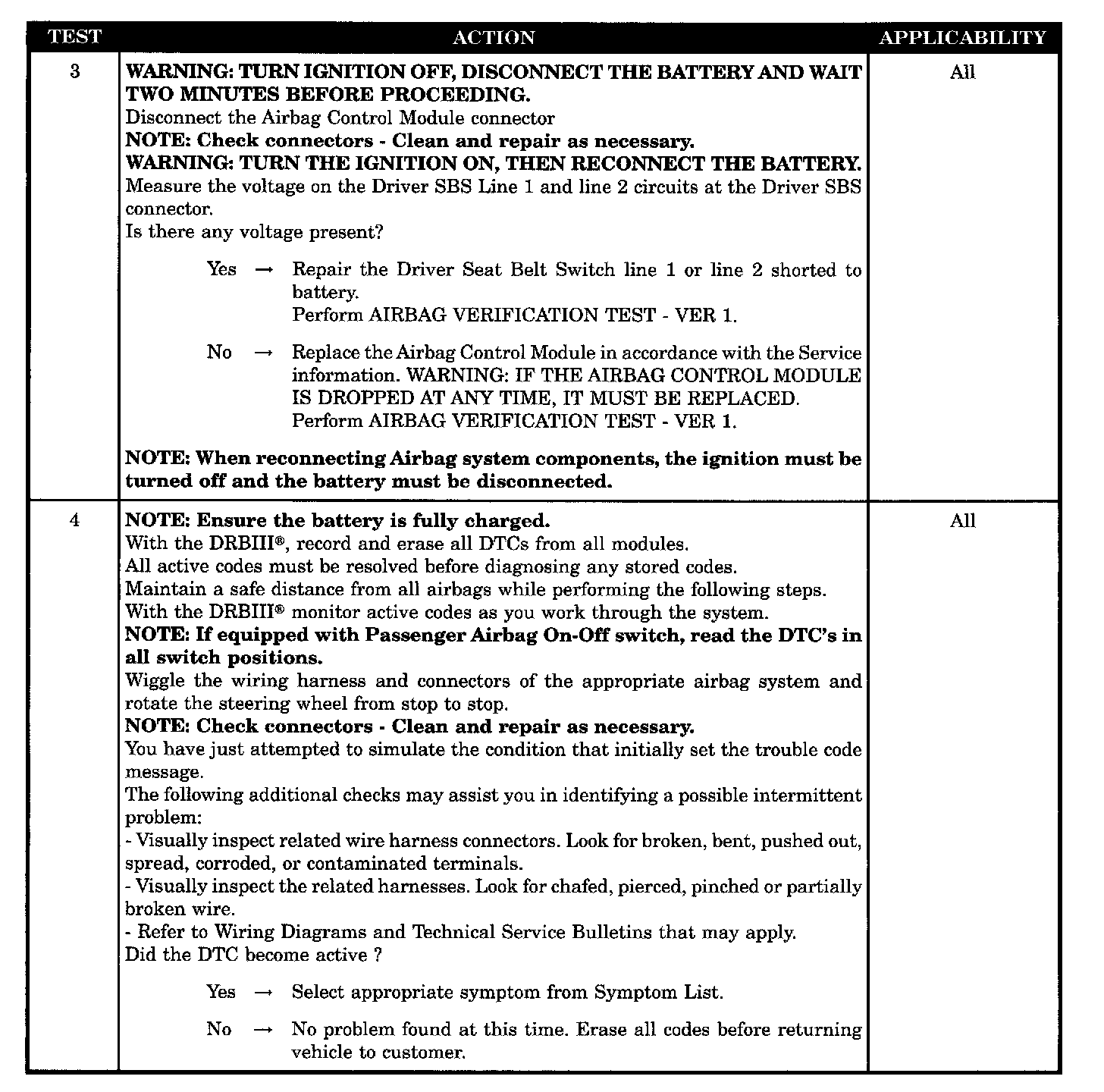

Tests 3 - 4:

SYMPTOM
DRIVER SEAT BELT SWITCH SHORTED TO BATTERY

WHEN MONITORED
With the ignition ON the ACM monitors the Seat Belt Buckle Switch circuit for an shorted to battery.

SET CONDITION
The code will set if the ACM detects high circuit voltage.

POSSIBLE CAUSES
- Driver seat belt switch shorted to battery
- Driver seat belt switch circuits shorted to battery
- ACM, Driver seat belt switch shorted to battery
- Stored code or intermittent condition
- Active code present
