Driver Curtain Squib Shorted to Ground

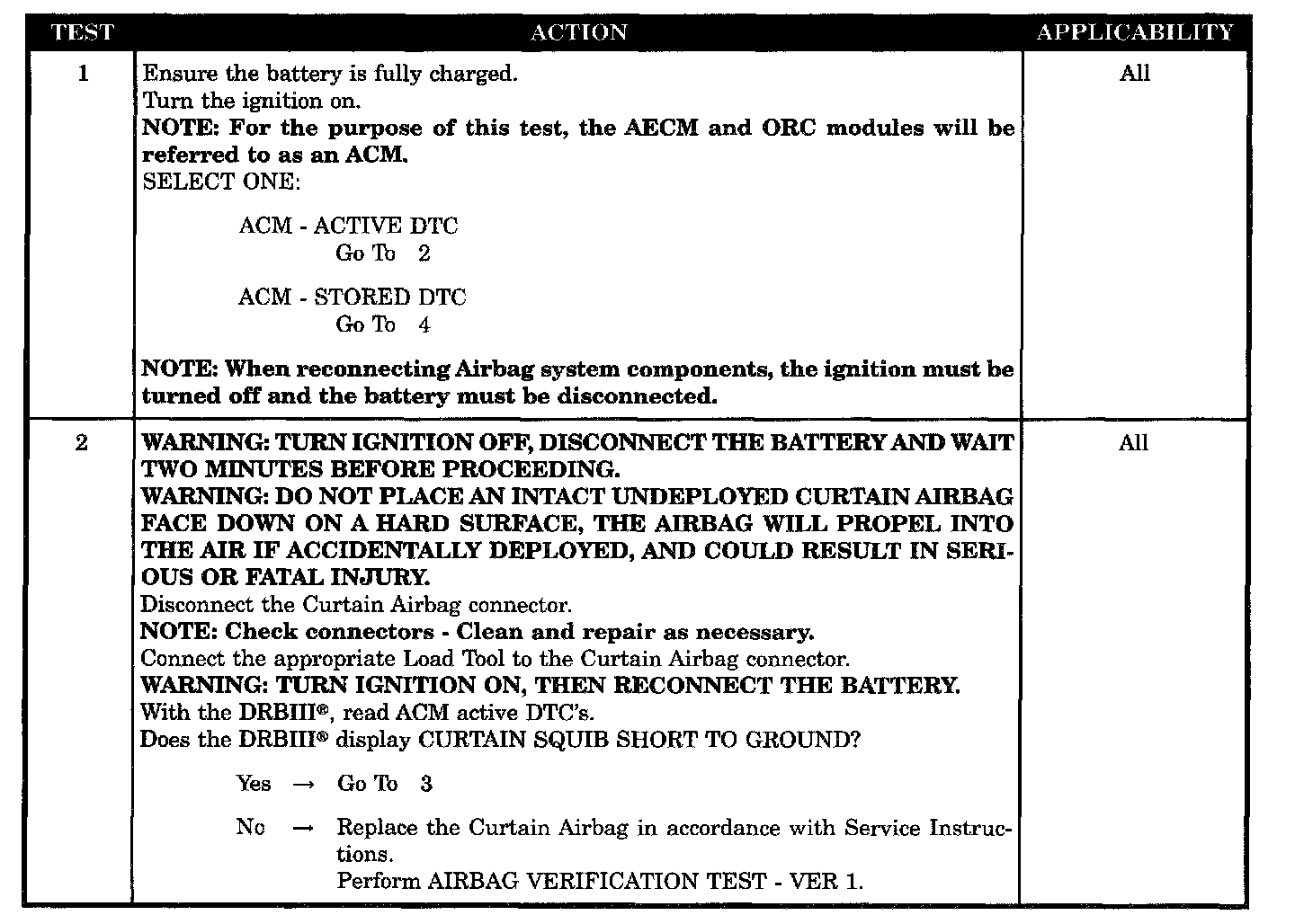

Tests 1 - 2:

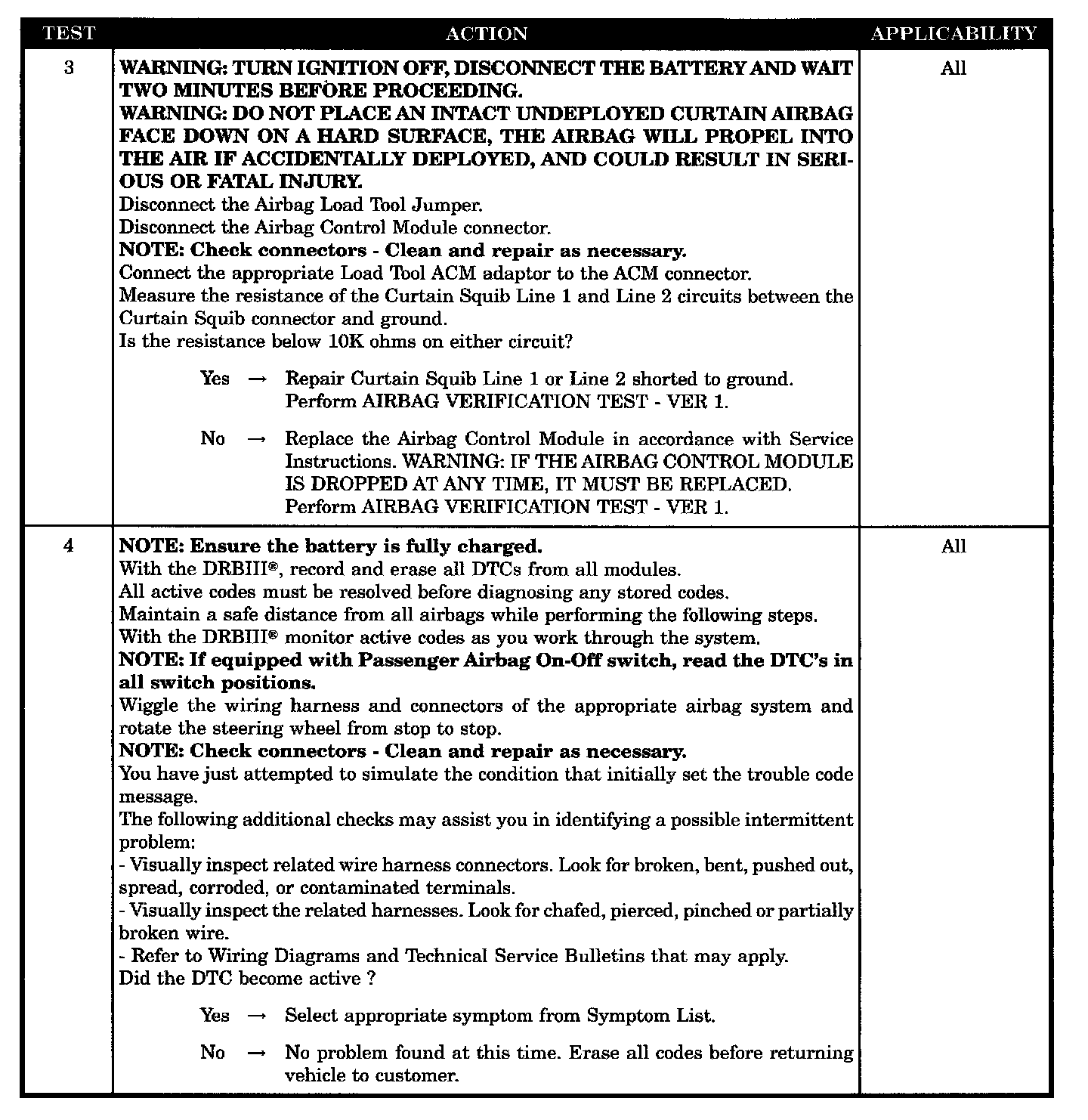

Tests 3 - 4:

SYMPTOM
DRIVER CURTAIN SQUIB SHORTED TO GROUND

WHEN MONITORED
When the ignition is ON, the ACM monitors the resistance of the Curtain Squib circuits.

SET CONDITION
When the ACM detects a shorted to ground on the Curtain Squib circuits.

POSSIBLE CAUSES
- Curtain airbag shorted to ground
- Curtain squib line 1 or line 2 shorted to ground
- ACM, curtain squib shorted to ground
- Stored code or intermittent condition
- Active code present
