Driver Curtain Squib Shorted to Battery

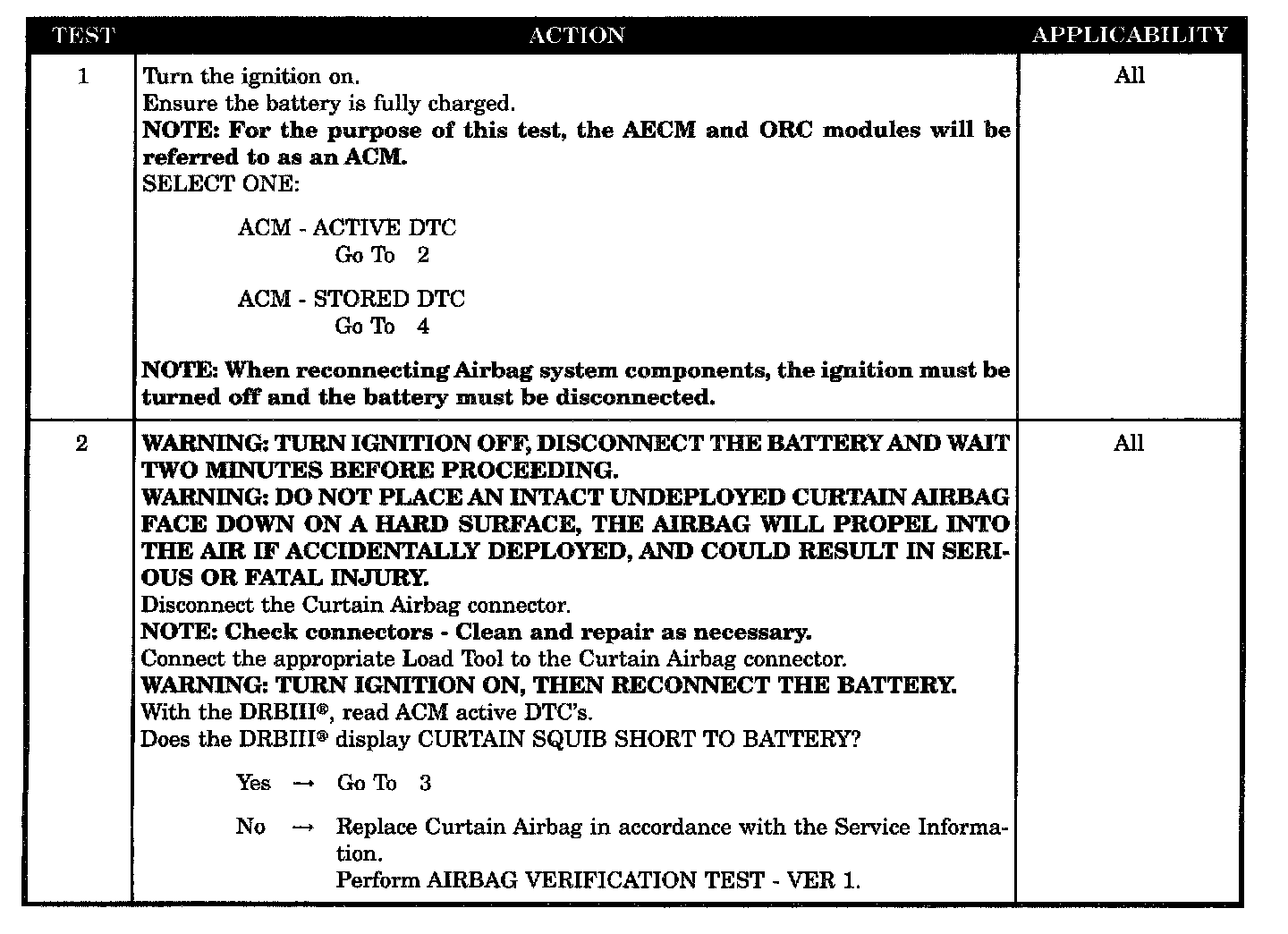

Tests 1 - 2:

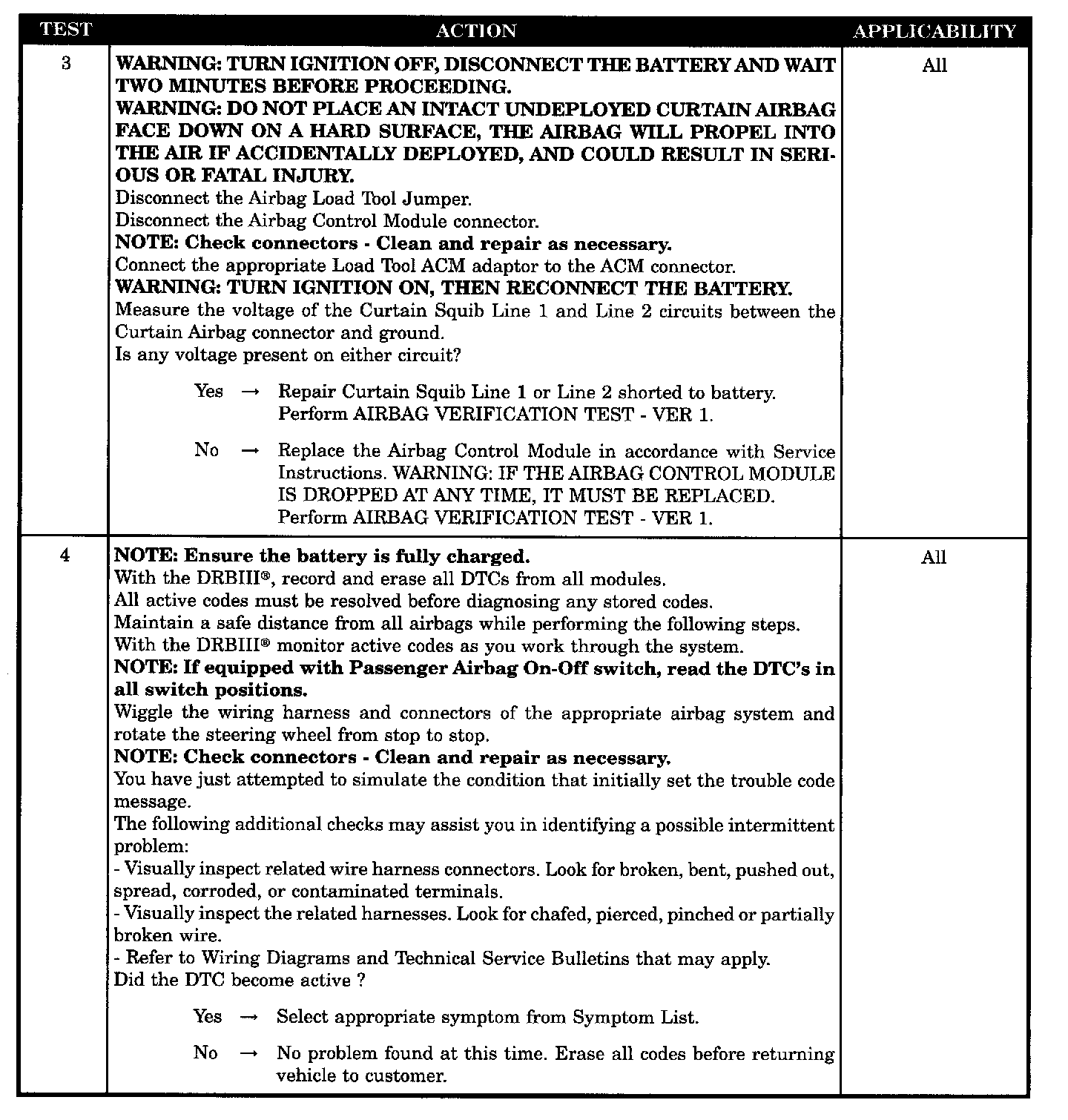

Tests 3 - 4:

SYMPTOM
DRIVER CURTAIN SQUIB SHORTED TO BATTERY

WHEN MONITORED
When the ignition is ON, the ACM monitors the voltage of the Curtain Squib circuits.

SET CONDITION
When the ACM detects high voltage on the Curtain Squib circuits.

POSSIBLE CAUSES
- Curtain airbag shorted to battery
- Curtain squib line 1 or line 2 shorted to battery
- ACM, curtain squib shorted to battery
- Stored code or intermittent condition
- Active code present
