Driver Window Inoperative

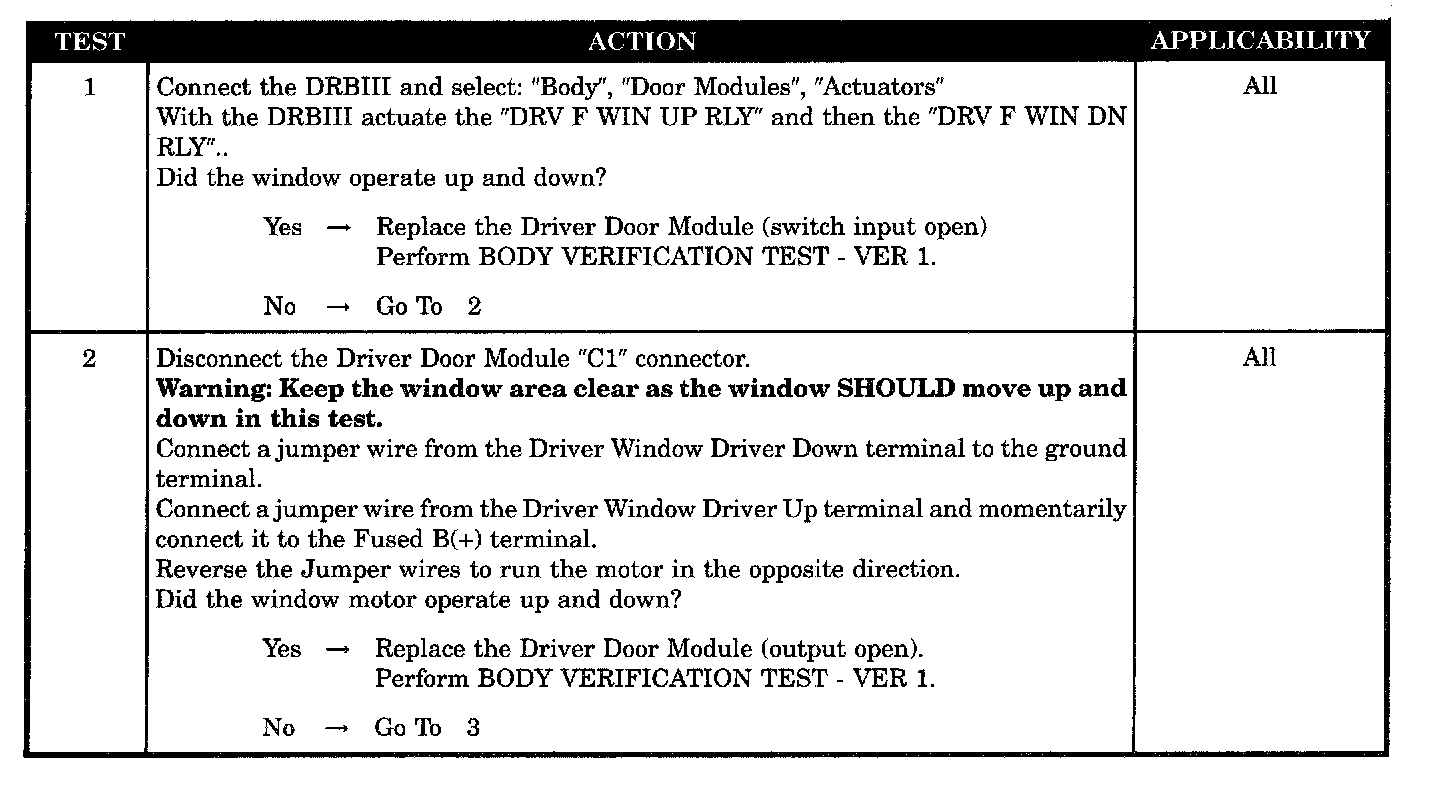

Tests 1 - 2:

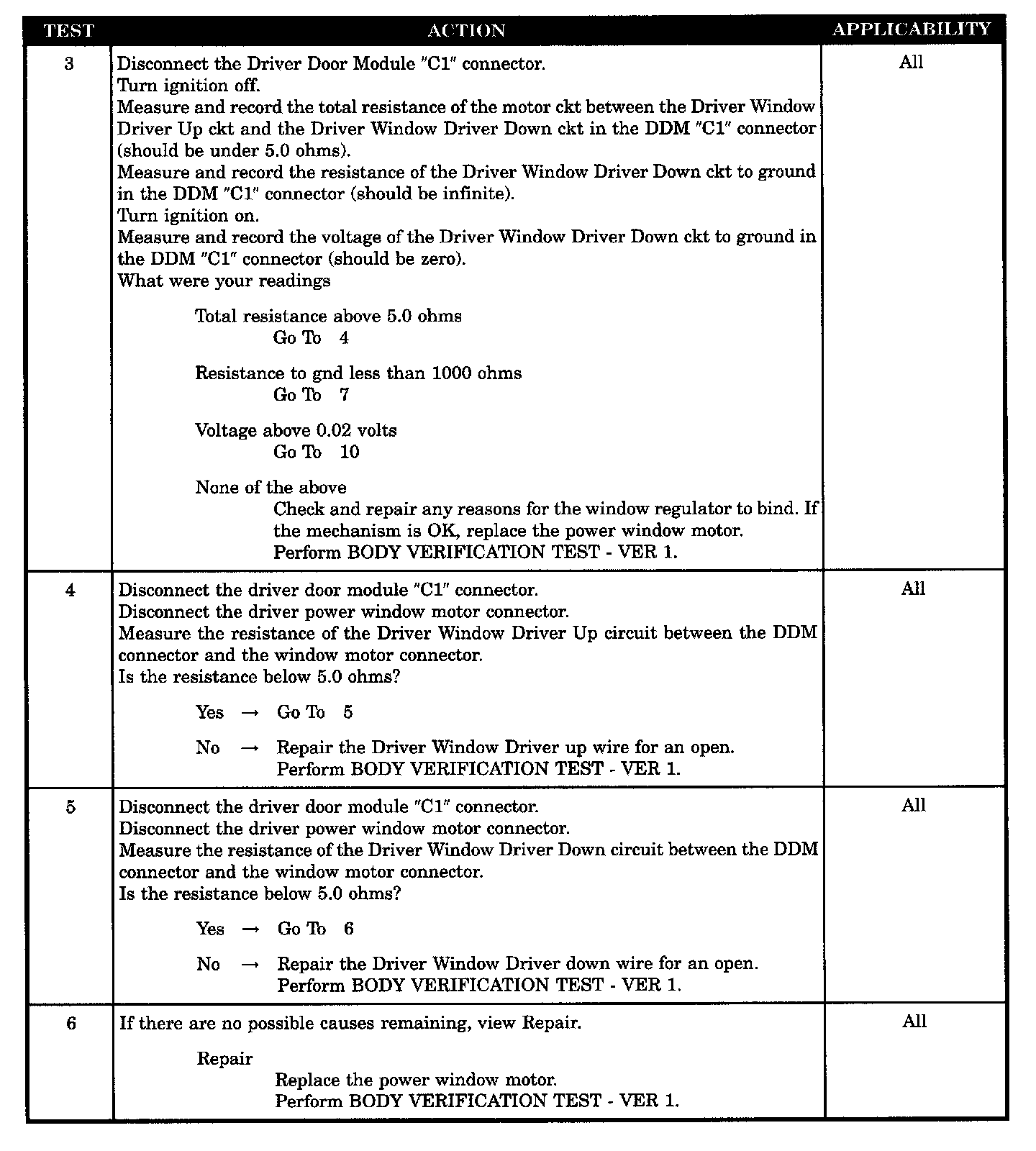

Tests 3 - 6:

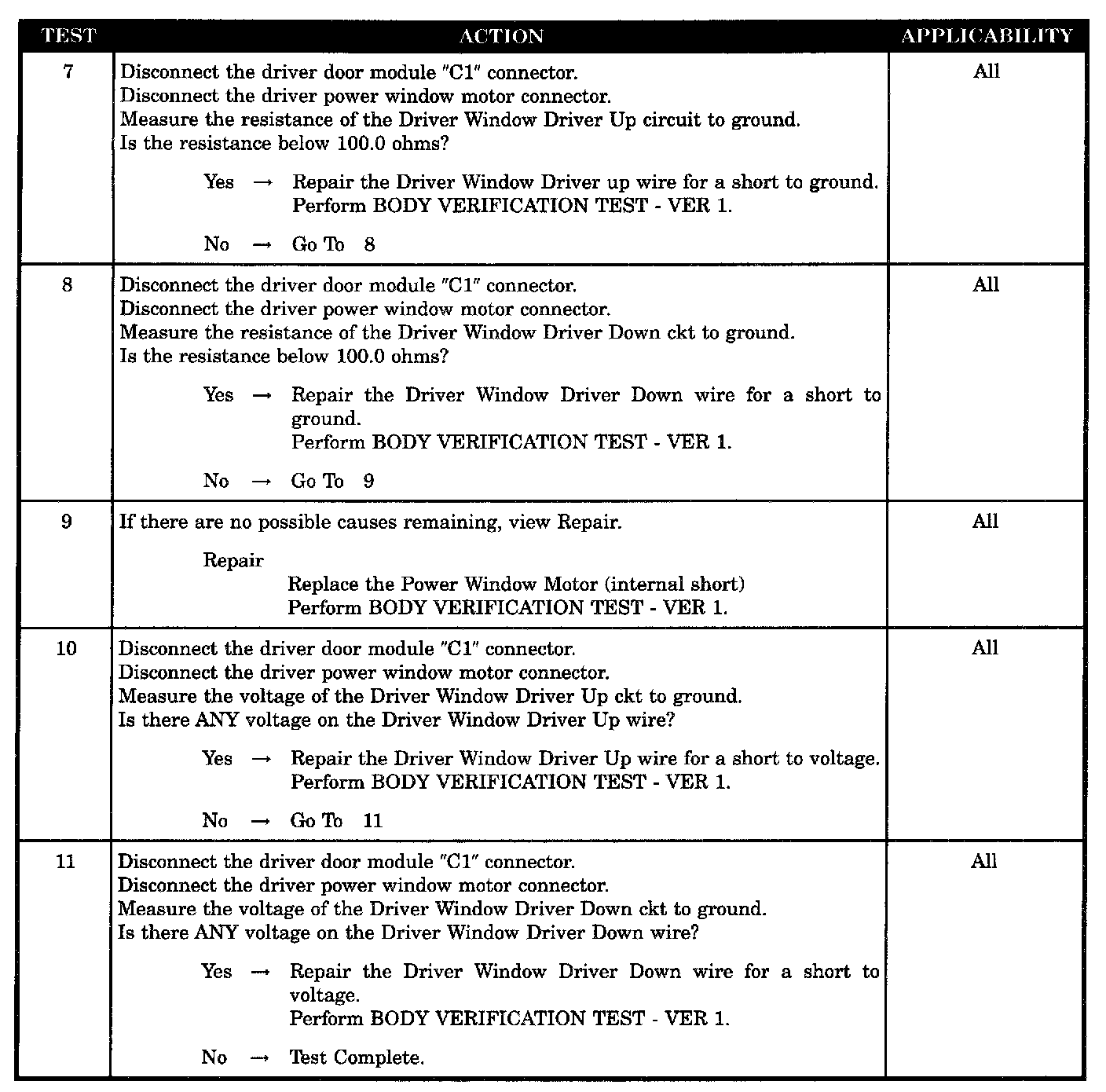

Tests 7 - 11:

SYMPTOM
DRIVER WINDOW INOPERATIVE

POSSIBLE CAUSES
- Driver door module - open switch
- Driver door module - output open
- Motor circuit check
- Driver window driver up wire open
- Driver window driver up shorted to ground
- Driver window driver down wire open
- Driver window driver up shorted to voltage
- Driver window driver down shorted to ground
- Driver window driver down shorted to voltage
- Motor defective open
- Motor defective shorted to ground
