Passenger Memory Mirror Inoperative

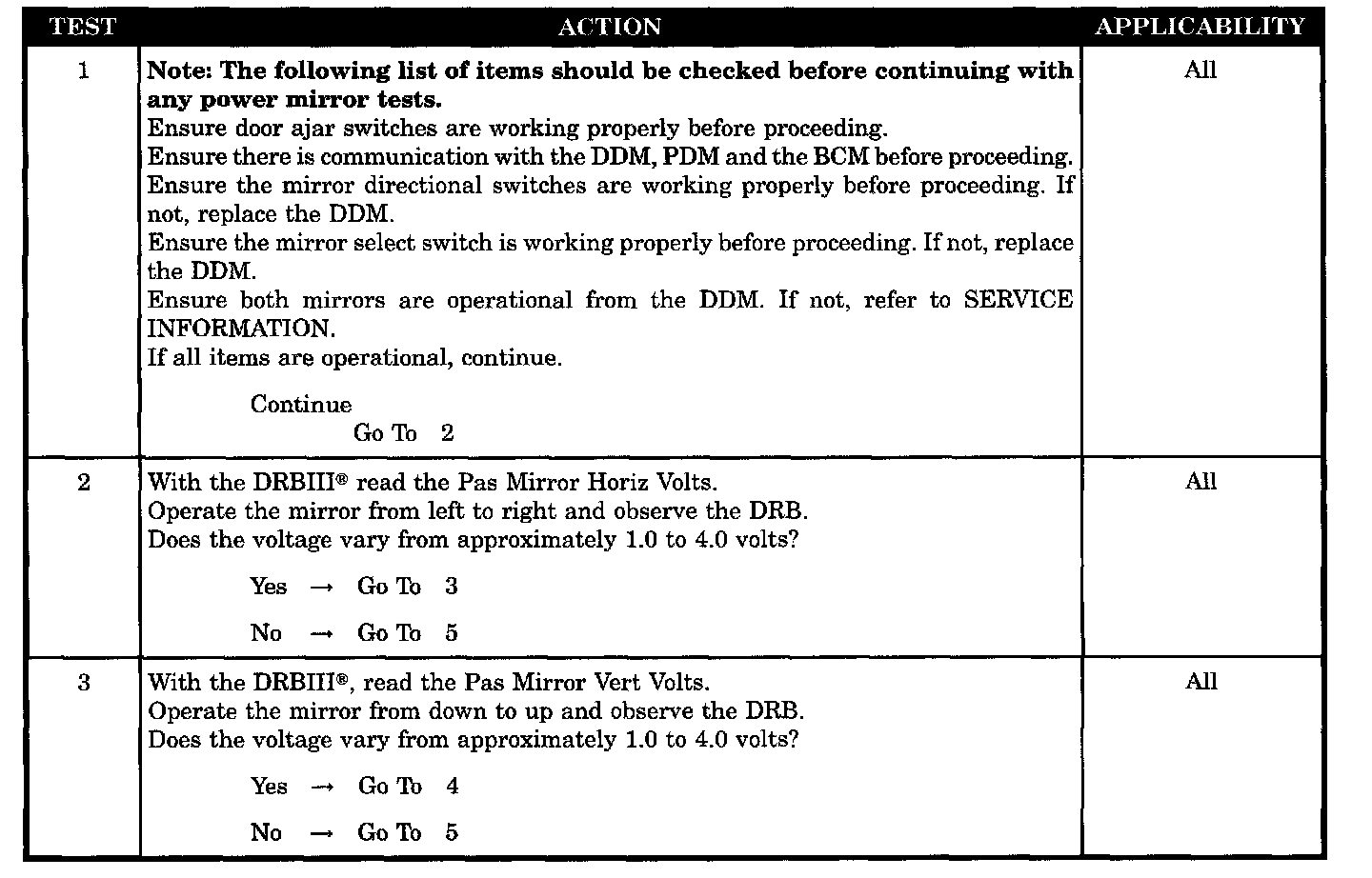

Tests 1 - 3:

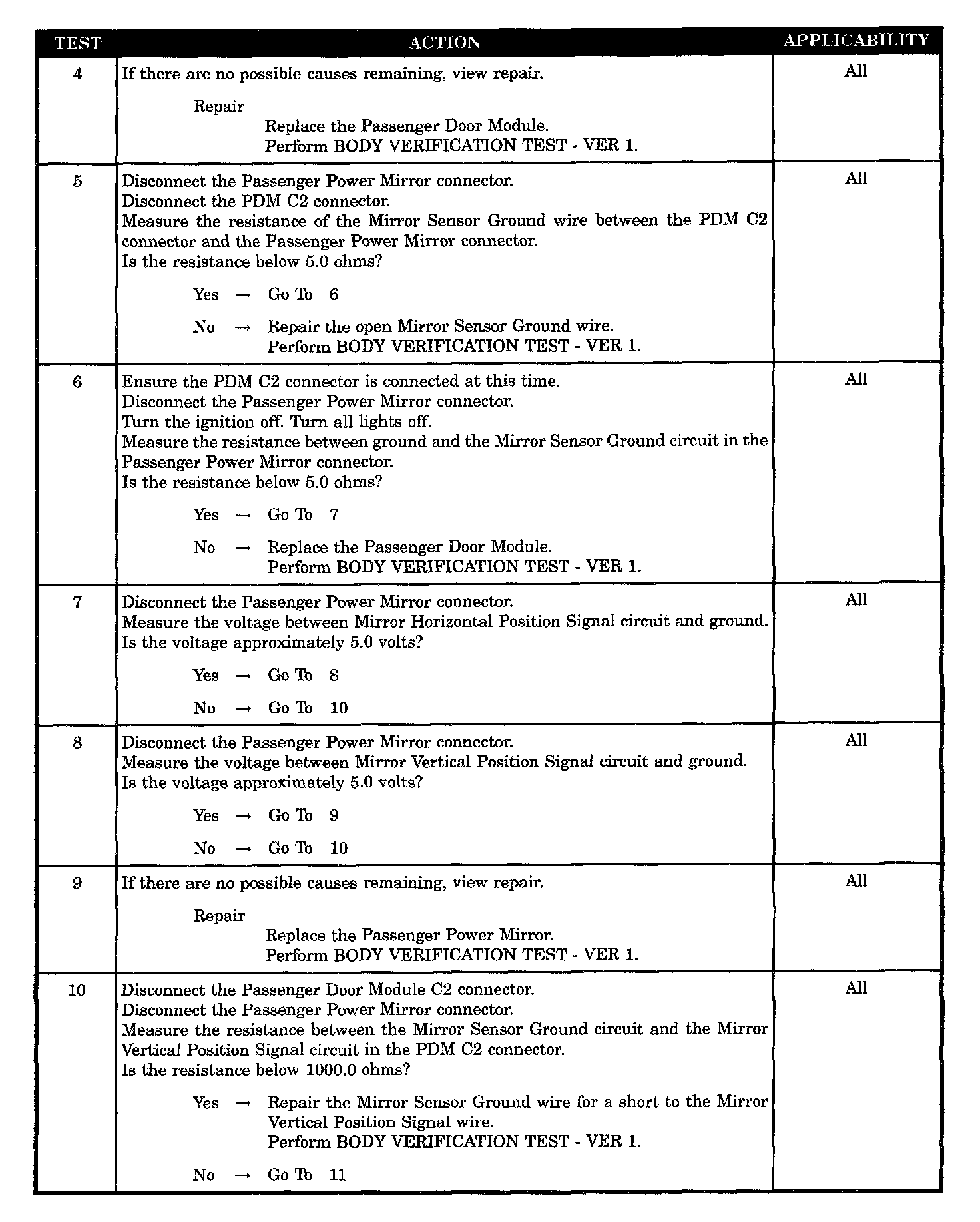

Tests 4 - 10:

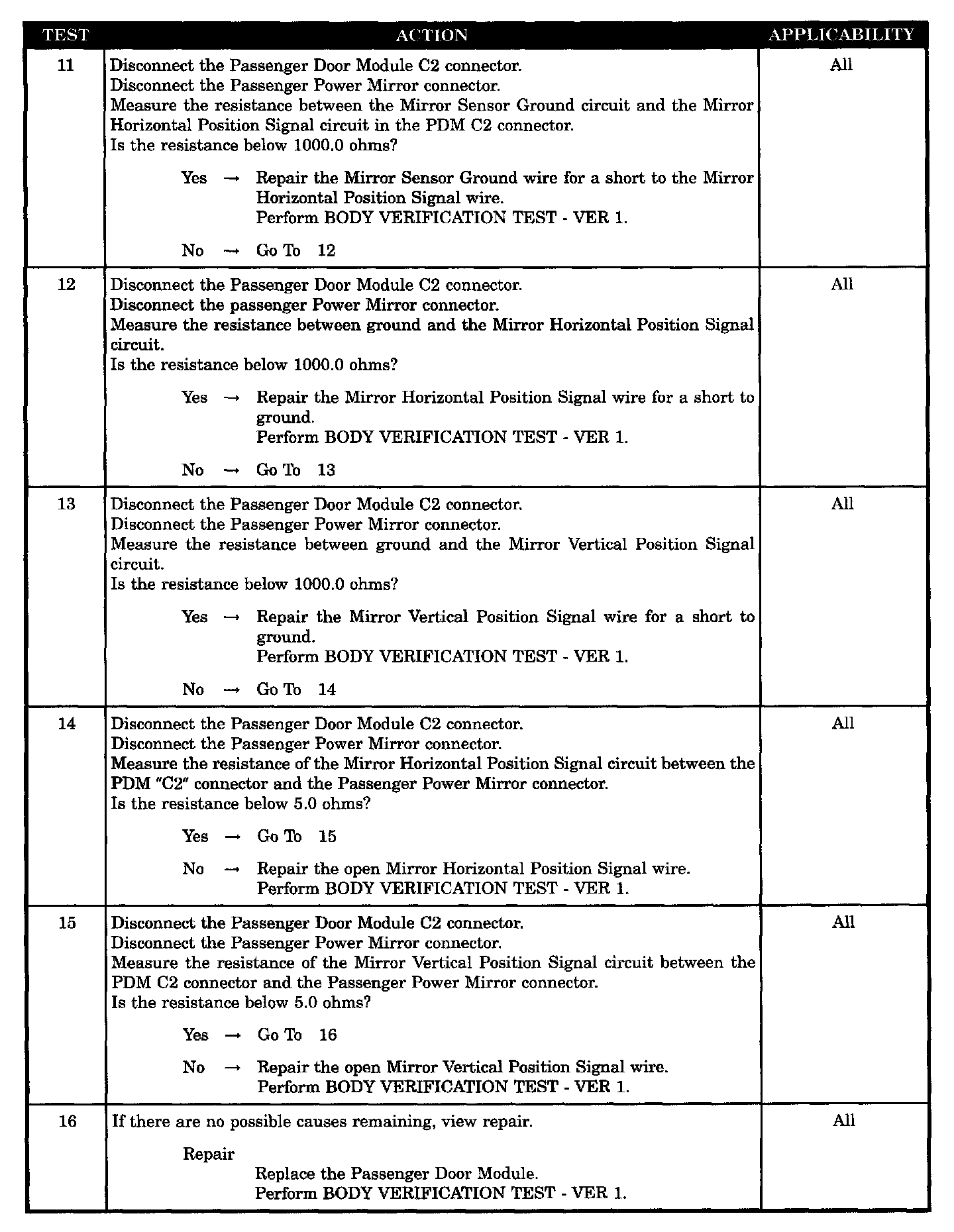

Tests 11 - 16:

SYMPTOM
PASSENGER MEMORY MIRROR INOPERATIVE

POSSIBLE CAUSES
- Passenger mirror sensor ground wire open
- Passenger door module - sensor ground open
- Passenger mirror sensor ground shorted to mirror vertical position signal
- Passenger mirror sensor ground shorted to mirror horizontal position signal
- Passenger door module - memory mirror open
- Passenger mirror horizontal position signal shorted to ground
- Passenger mirror vertical position signal shorted to ground
- Passenger mirror horizontal position signal wire open
- Passenger mirror vertical position signal wire open
- Passenger power mirror - memory open
- Passenger door module - memory circuit open
