Left Rear Door Fails to Lock and Unlock

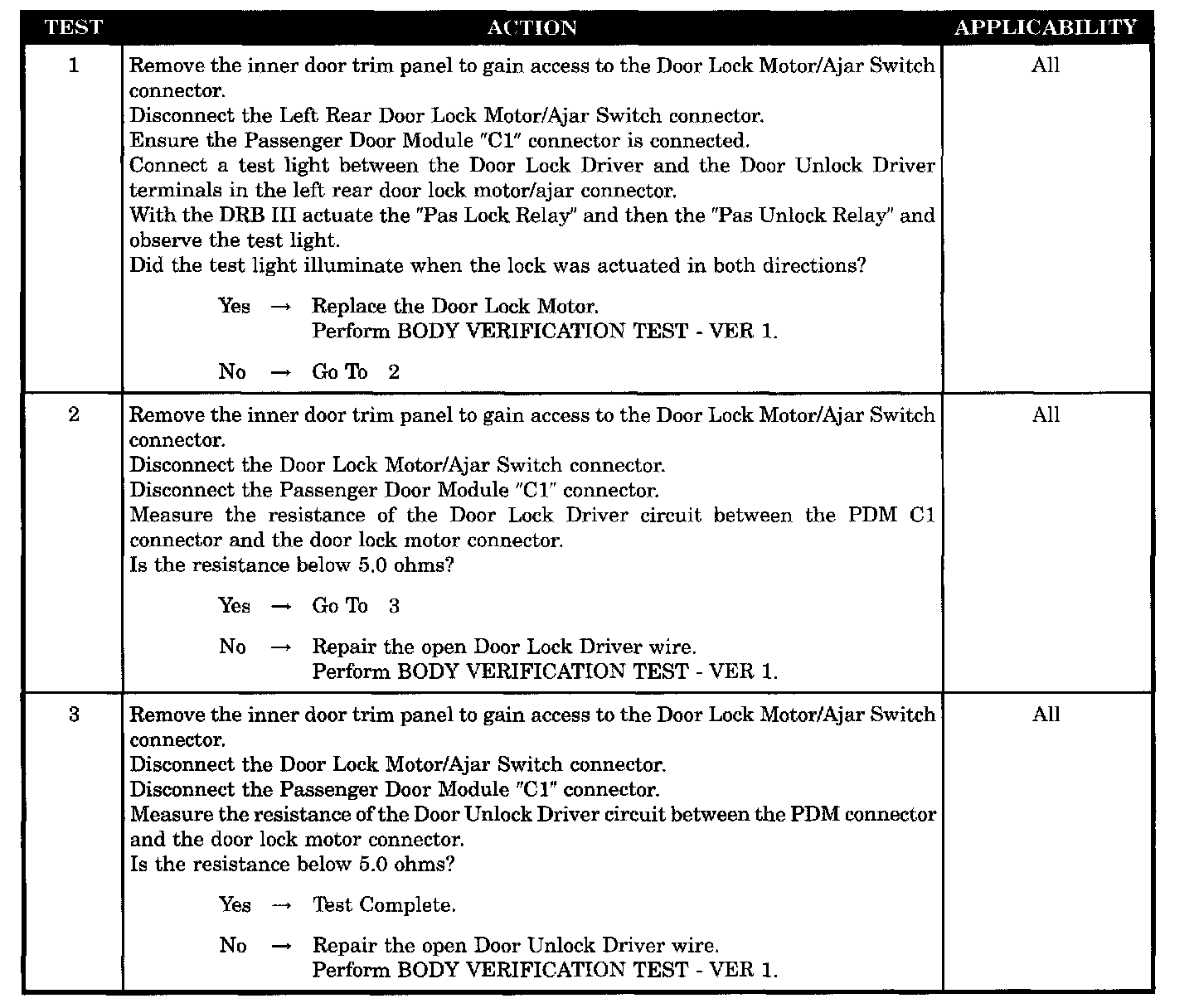

Tests 1 - 3:





SYMPTOM
LEFT REAR DOOR FAILS TO LOCK & UNLOCK

POSSIBLE CAUSES
- Open door lock motor
- Open door lock driver wire
- Open door unlock driver wire
