Driver Door Fails to Lock

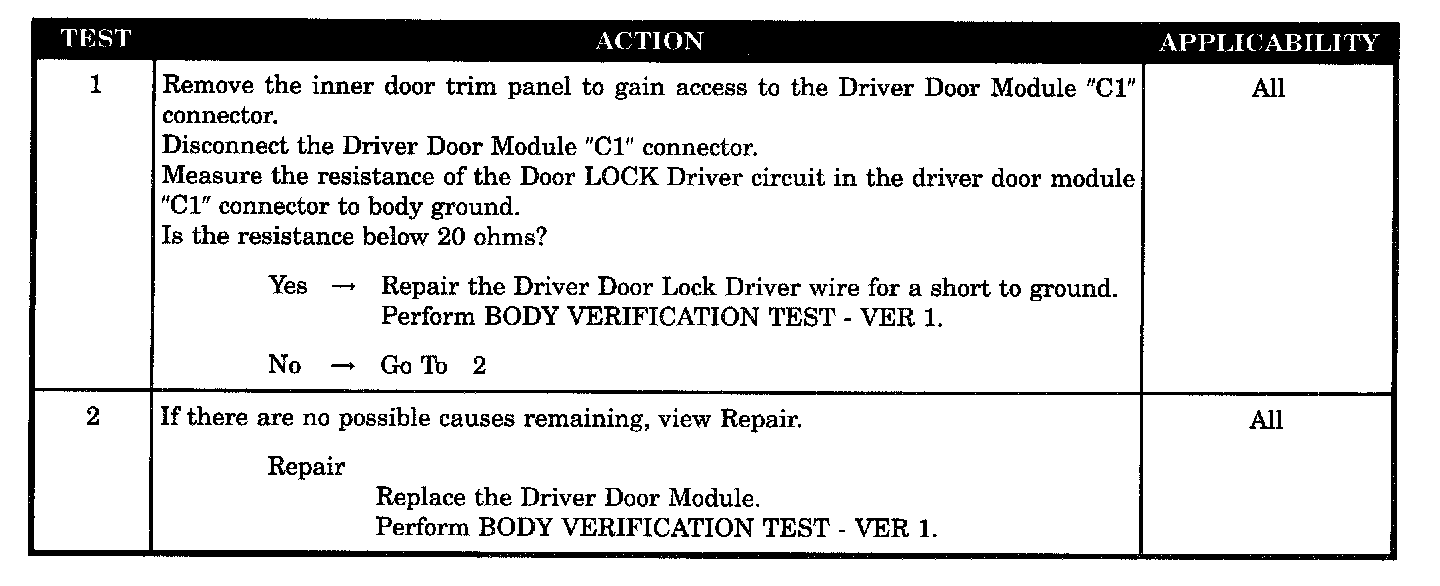

Tests 1 - 2:





SYMPTOM
DRIVER DOOR FAILS TO LOCK

POSSIBLE CAUSES
- Driver door lock driver shorted to ground
- DDM - driver door lock open
