Washer Fluid Switch Failure

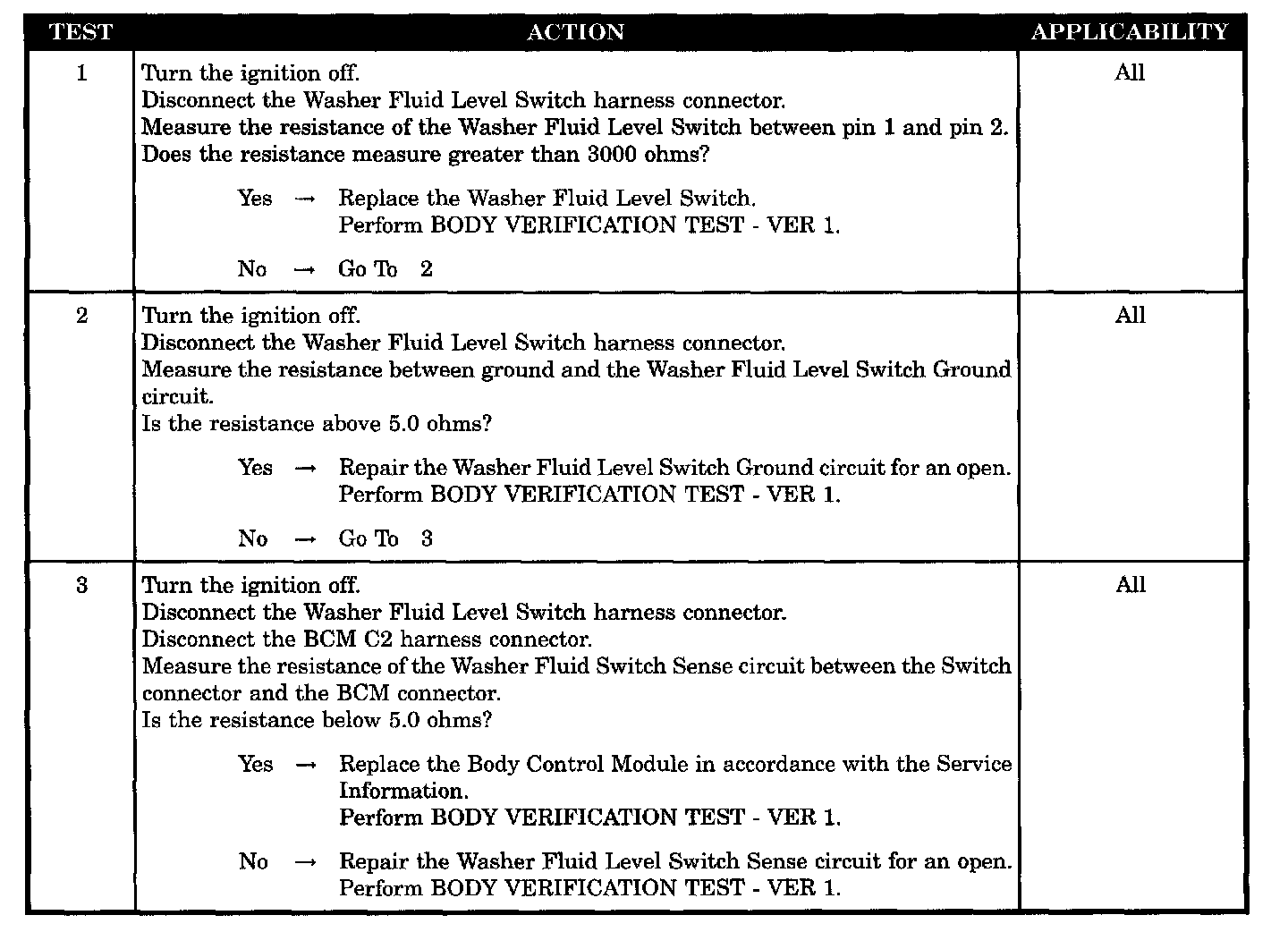

Tests 1 - 3:





SYMPTOM
WASHER FLUID SWITCH FAILURE

POSSIBLE CAUSES
- Washer fluid level switch
- Washer fluid level switch ground circuit open
- Washer fluid level switch sense circuit open
- Body control module
