Overhead Console
>>
No BCM Messages Received
No BCM Messages Received

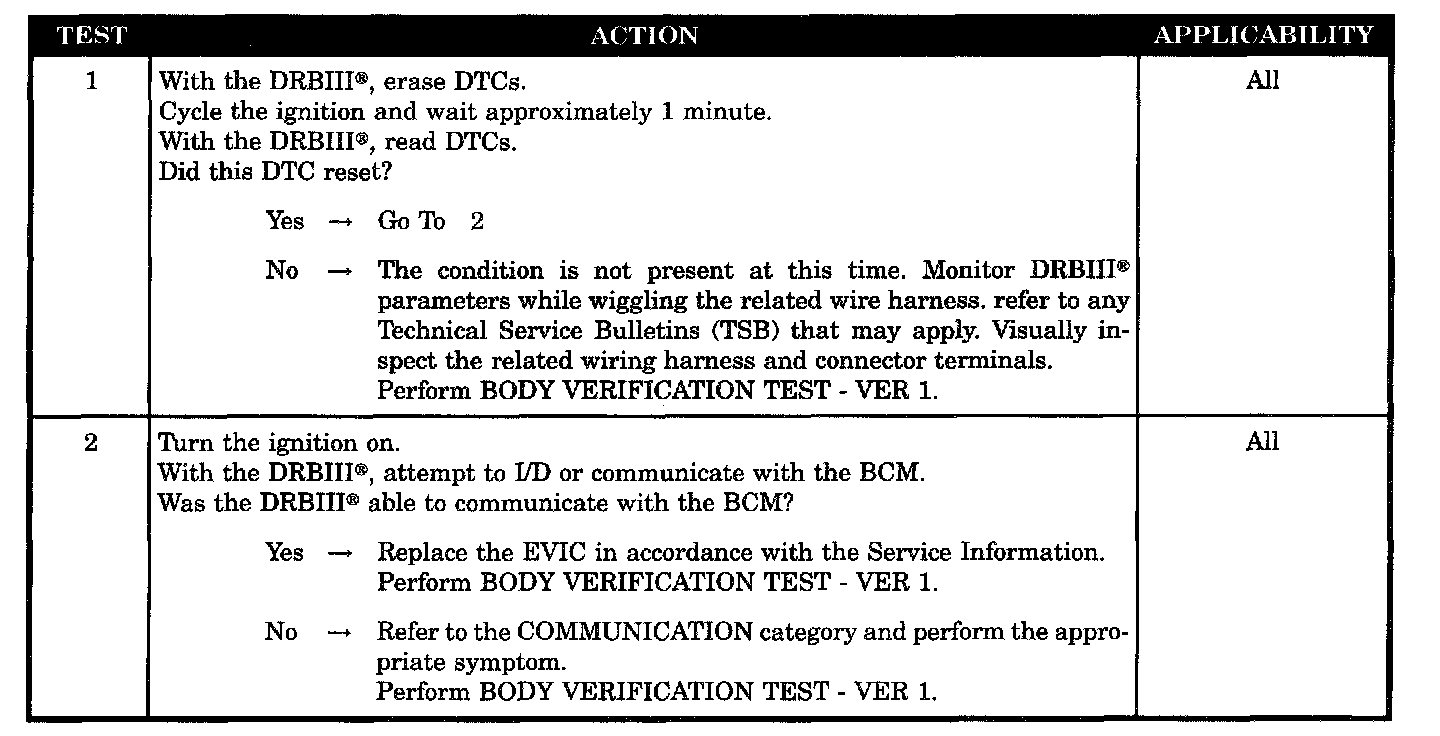

Tests 1 - 2:
SYMPTOM
NO BCM MESSAGES RECEIVED
POSSIBLE CAUSES
-
DTC present
-
No response - PCI bus - BCM
-
Electronic vehicle information center
