Low Coolant Warning Always On

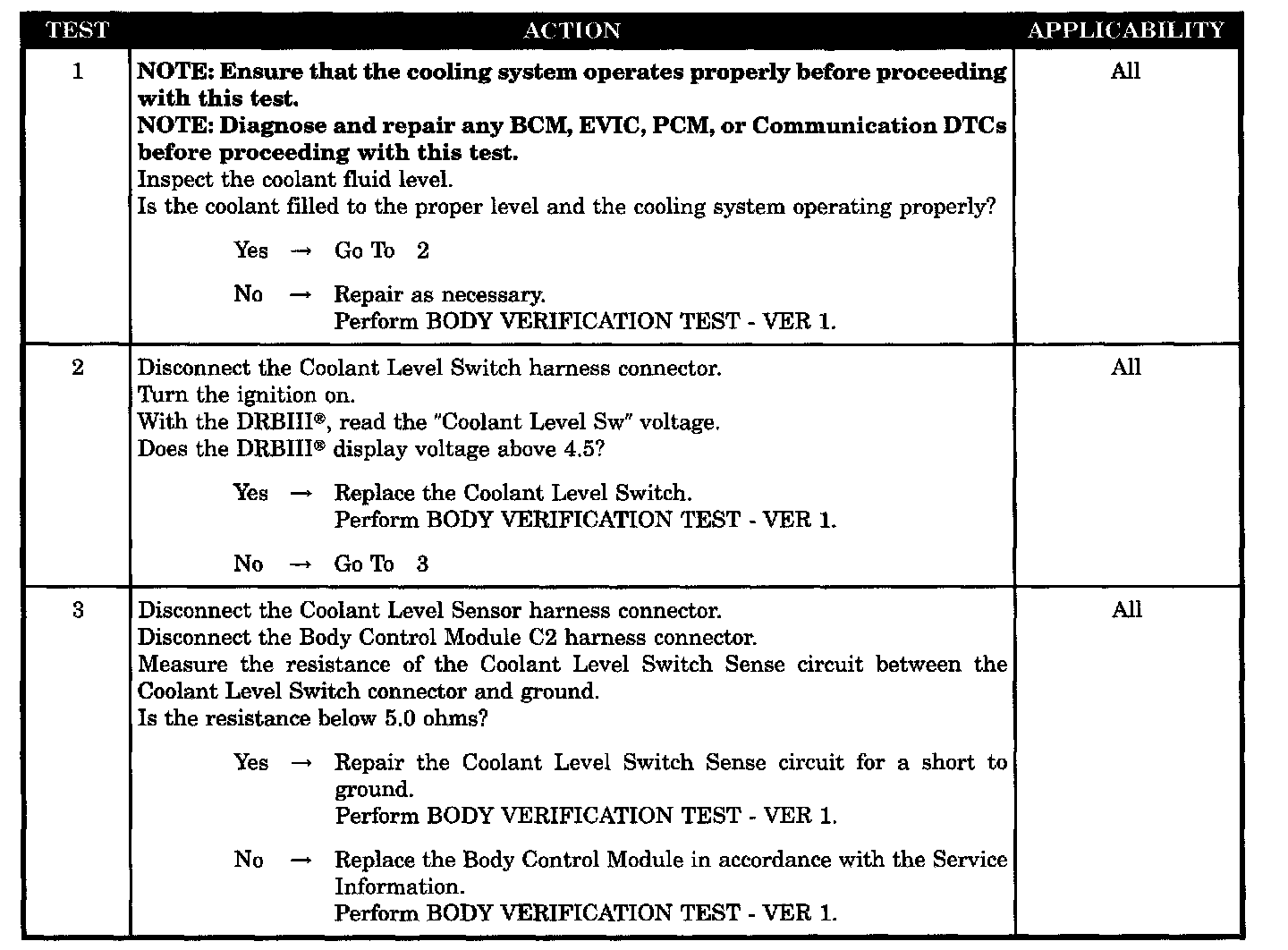

Tests 1 - 3:





SYMPTOM
LOW COOLANT WARNING ALWAYS ON - GAS ONLY

POSSIBLE CAUSES
- Coolant level
- Coolant level switch shorted
- Coolant level switch sense circuit shorted to ground
- Body control module
