EVIC Inoperative

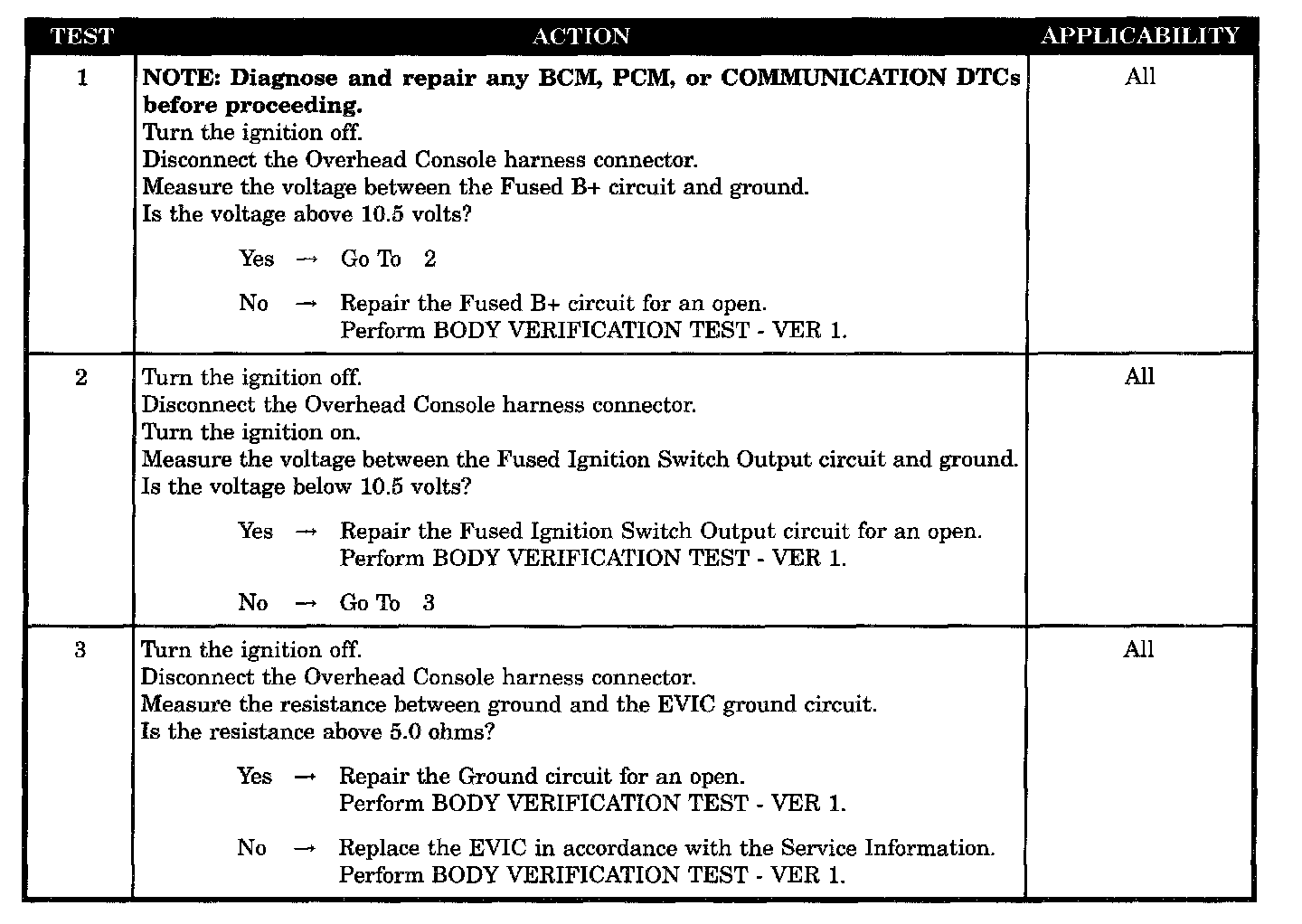

Tests 1 - 3:





SYMPTOM
EVIC INOPERATIVE

POSSIBLE CAUSES
- Fused B(+) circuit open
- Fused ignition switch output circuit open
- Ground circuit open
- Electronic vehicle information center
