Front Riser Sensor Out of Range High

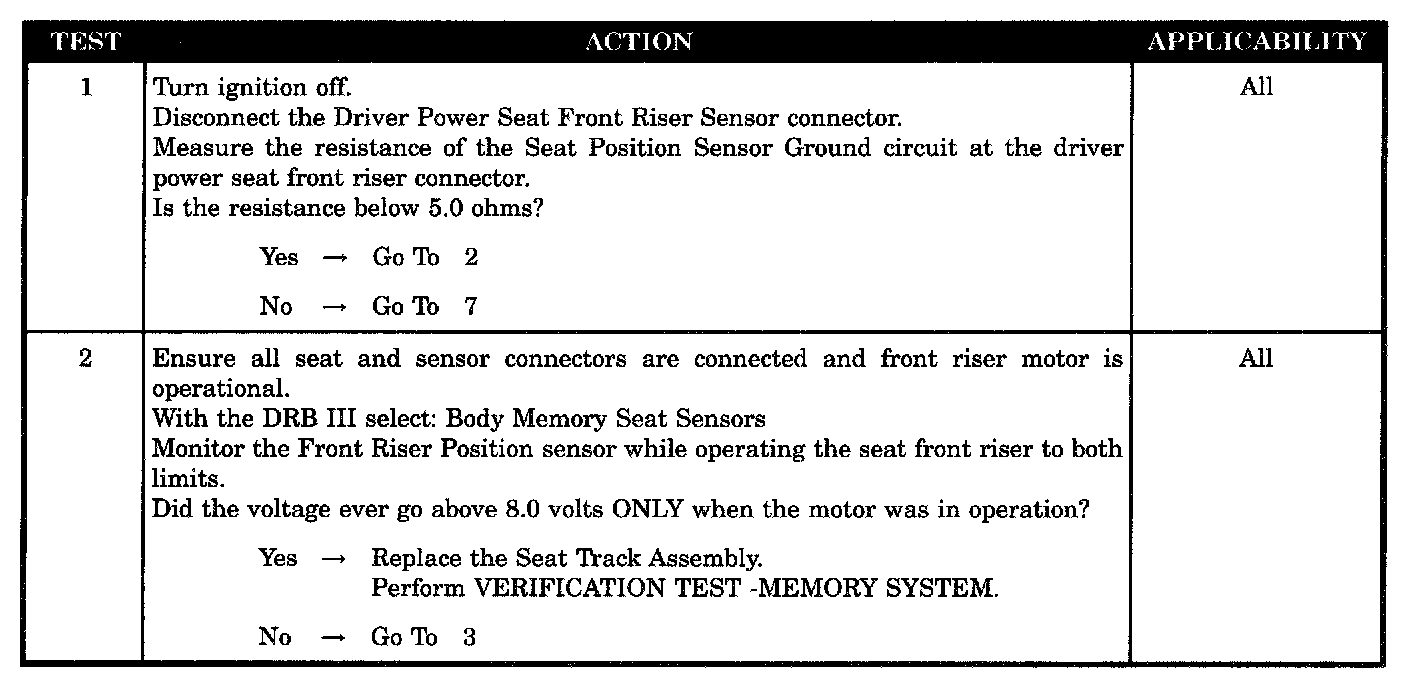

Tests 1 - 2:

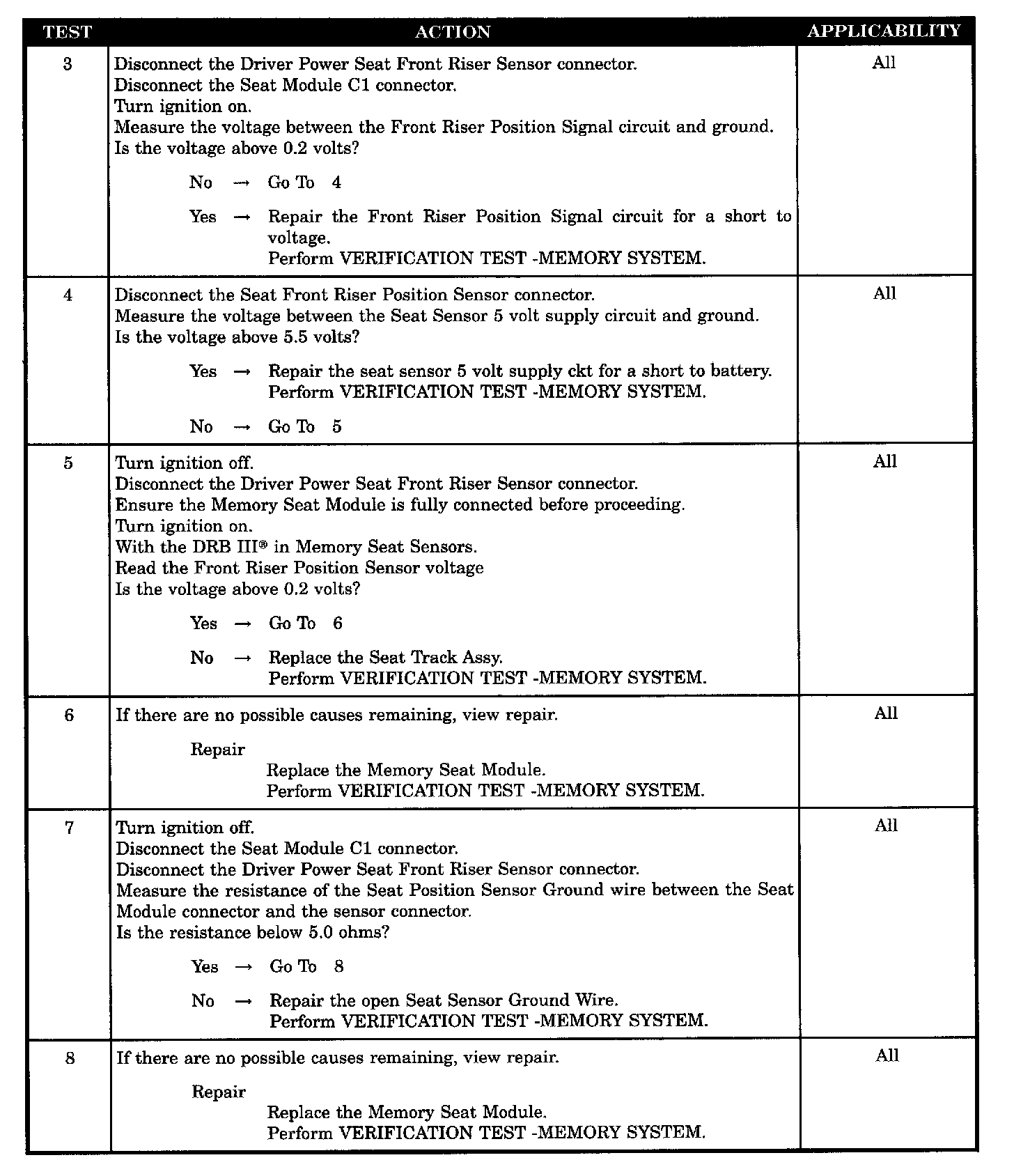

Tests 3 - 8:

SYMPTOM
FRONT RISER SENSOR OUT OF RANGE HIGH

WHEN MONITORED
Ignition ON.

SET CONDITION
This condition is immediately set when the seat motor potentiometer feeds a value higher than the Memory Seat Module has stored in EEPROM.

POSSIBLE CAUSES
- Seat sensor ground wire open
- Front riser sensor signal shorted to motor
- Seat sensor 5 Volt supply shorted to battery
- Front riser position signal circuit shorted to voltage
- Front riser sensor high
- Memory seat module internal ground open
- Memory seat module front riser high
