Driver Seat Recliner Movement Inoperative

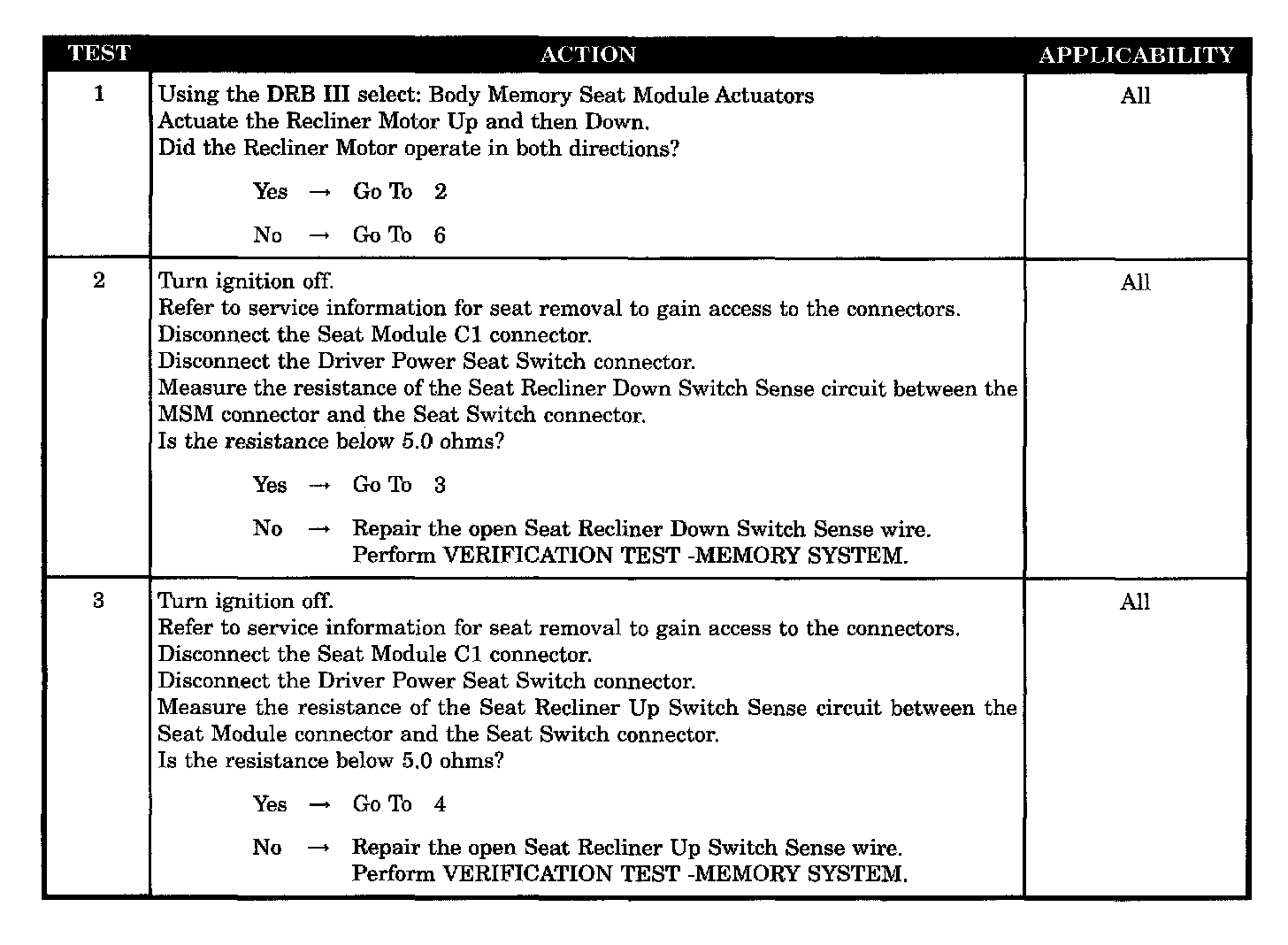

Tests 1 - 3:

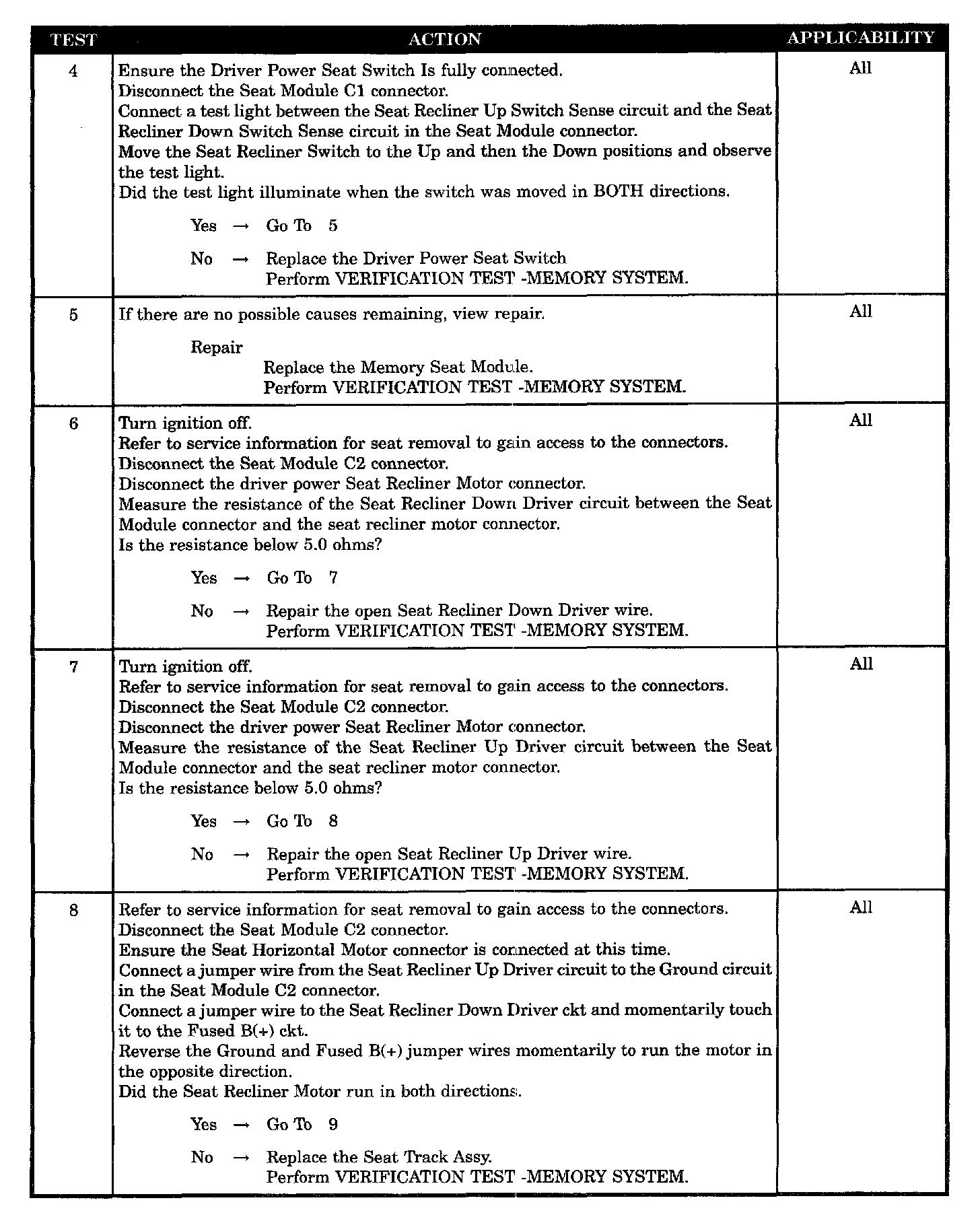

Tests 4 - 8:

Test 9:

SYMPTOM
DRIVER SEAT RECLINER MOVEMENT INOPERATIVE

POSSIBLE CAUSES
- Seat recliner down driver wire open
- Seat recliner down switch sense wire open
- Seat recliner up driver wire open
- Seat recliner up switch sense wire open
- Driver power seat switch
- Driver recliner motor inoperative
- MSM recliner motor output open
- MSM recliner switch input open
