Interior Lighting
>>
Reading & Vanity Lamps Inoperative
Reading & Vanity Lamps Inoperative

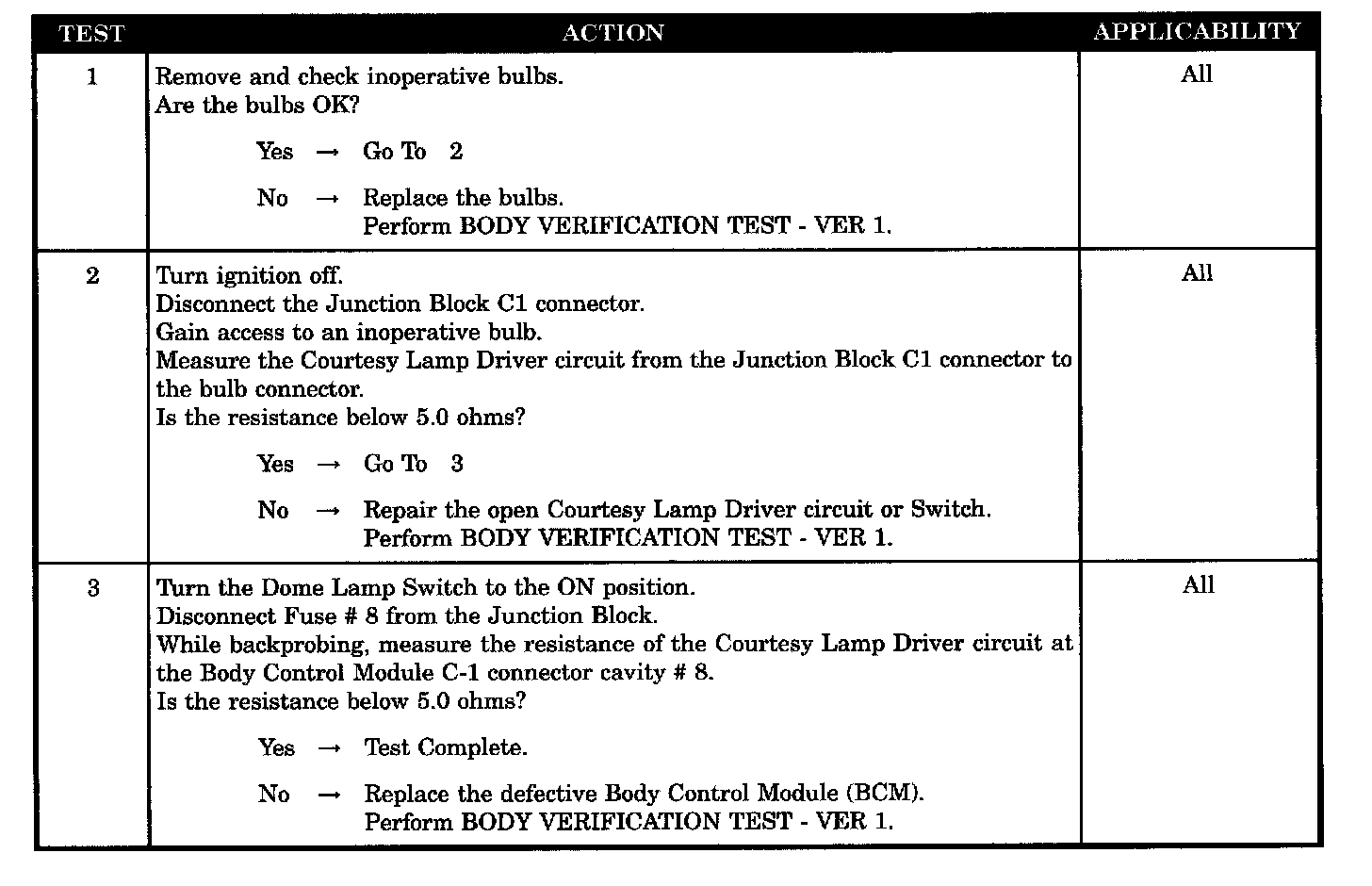

Tests 1 - 3:
SYMPTOM
READING & VANITY LAMPS INOPERATIVE
POSSIBLE CAUSES
-
Bulbs
-
Courtesy lamp driver circuit open
-
BCM, courtesy lamp driver
