Radio Illumination Lamps Inoperative

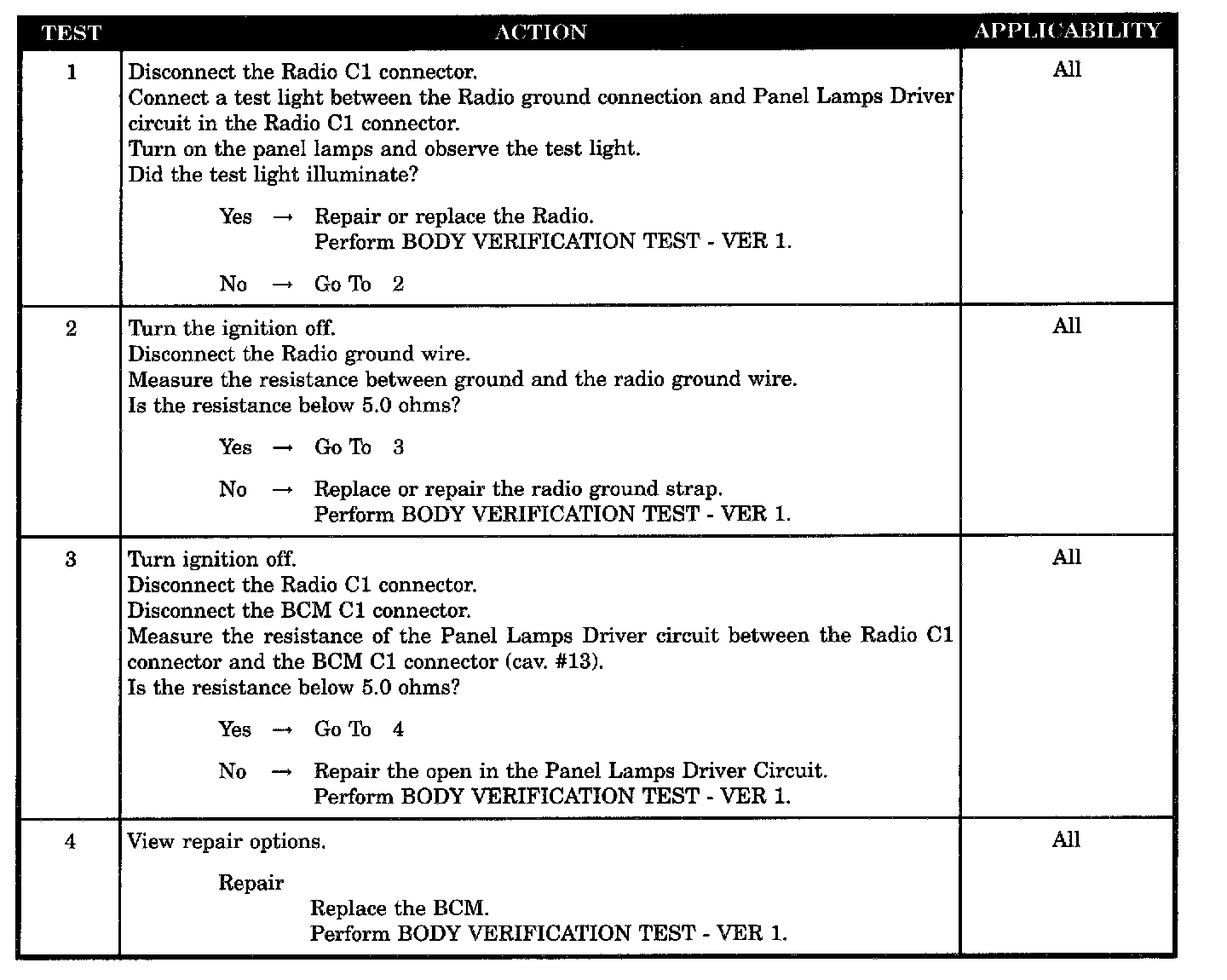

Tests 1 - 4:





SYMPTOM
RADIO ILLUMINATION LAMPS INOPERATIVE

POSSIBLE CAUSES
- Radio ground circuit open
- BCM (radio illumination)
- Panel lamps driver circuit open
- Radio illumination
