PRNDL/T-Case Illumination Lamps Inoperative

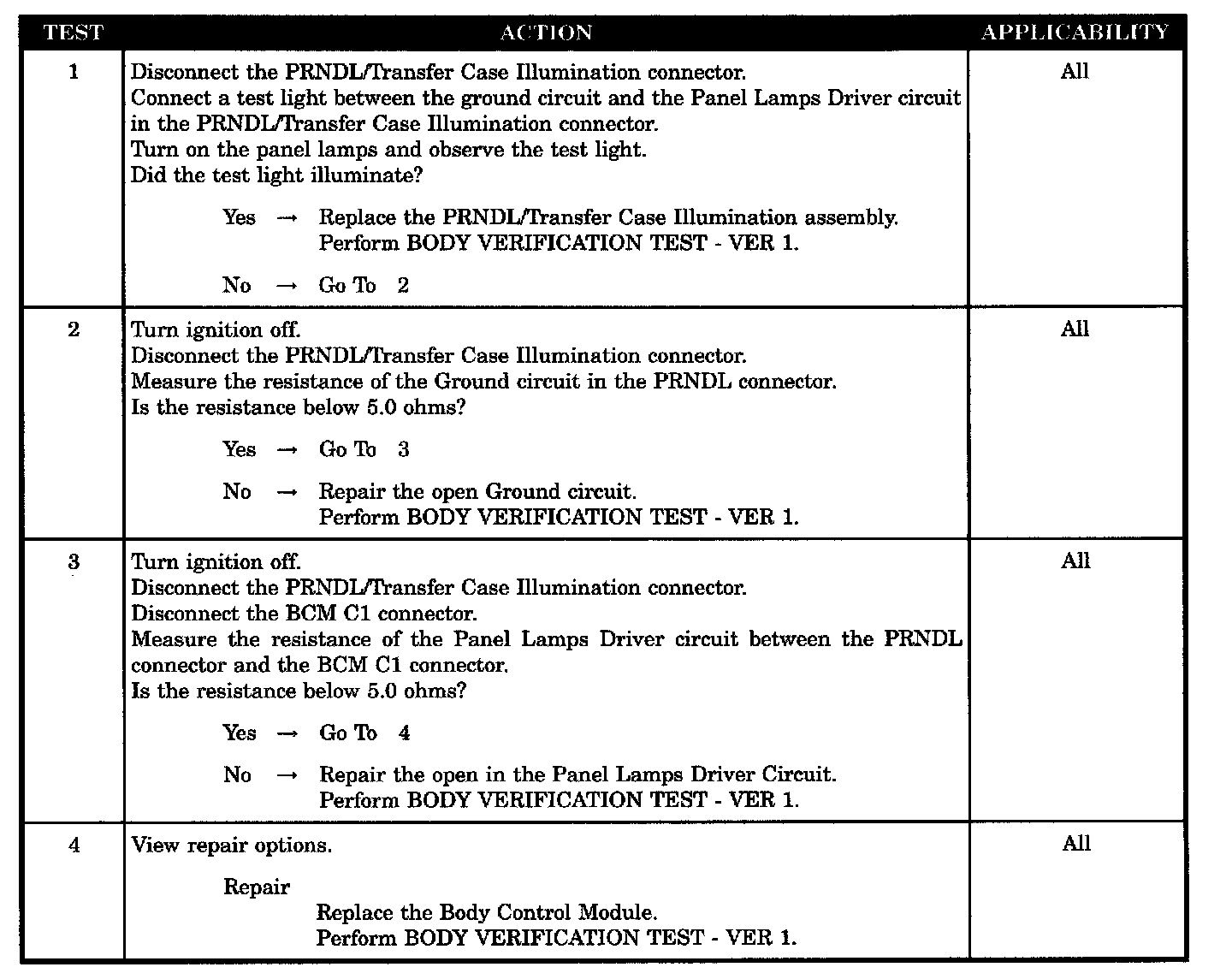

Tests 1 - 4:





SYMPTOM
PRNDL/T-CASE ILLUMINATION LAMPS INOPERATIVE

POSSIBLE CAUSES
- PRNDL open ground connection
- Panel lamps driver circuit open
- PRNDL illumination
- Body control module
