Load Shed Failure Shorted to Battery

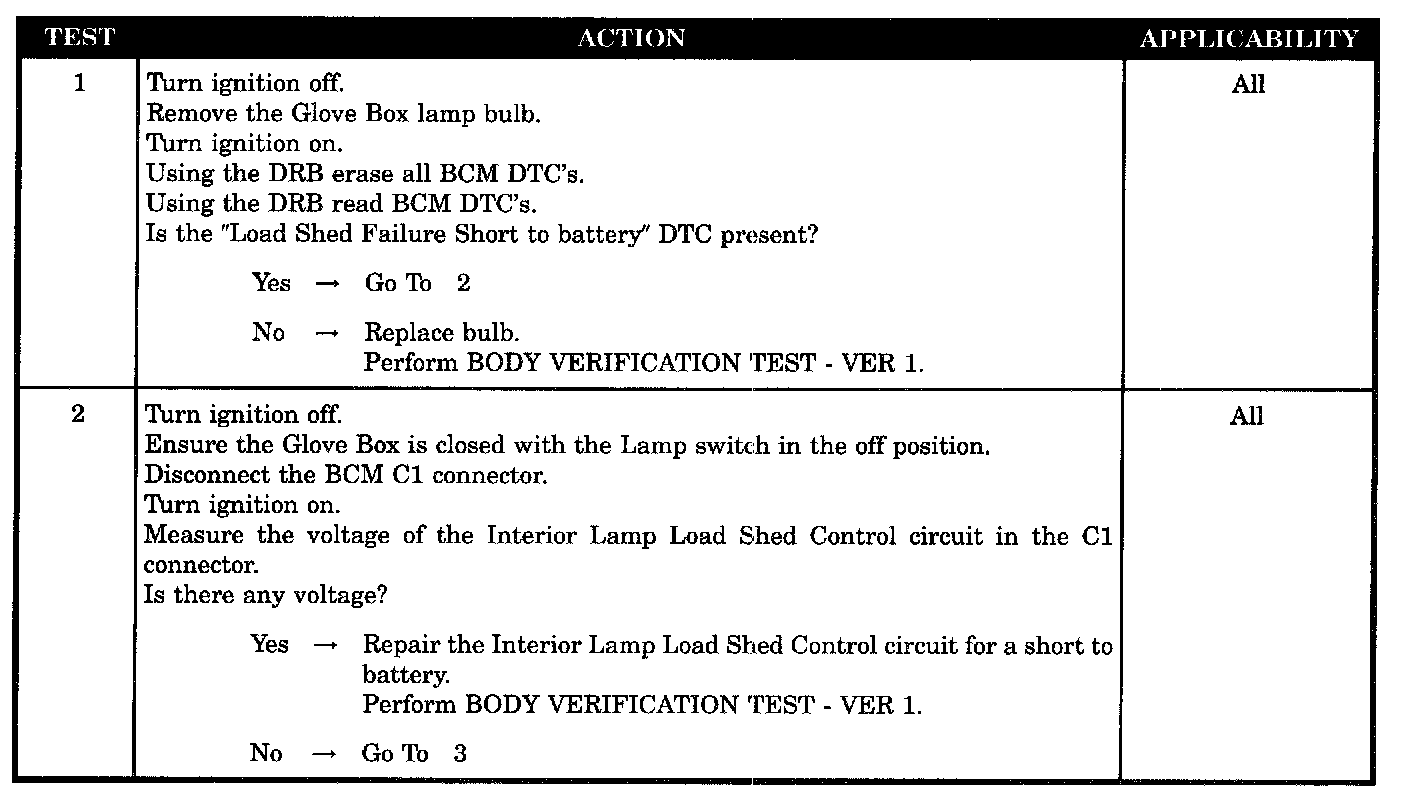

Tests 1 - 2:

Test 3:

SYMPTOM
LOAD SHED FAILURE SHORTED TO BATTERY

WHEN MONITORED
Ignition in RUN and IOD fuse/connector installed

SET CONDITION
The BCM has detected a shorted to battery on the Interior Load Shed circuit for 5 seconds

POSSIBLE CAUSES
- Shorted glove box lamp bulb
- Interior lamp load shed control shorted to battery (courtesy)
- Interior lamp load shed control shorted to battery (glove box)
- BCM, interior lamp load shed control
