I/P Courtesy Lamps Inoperative

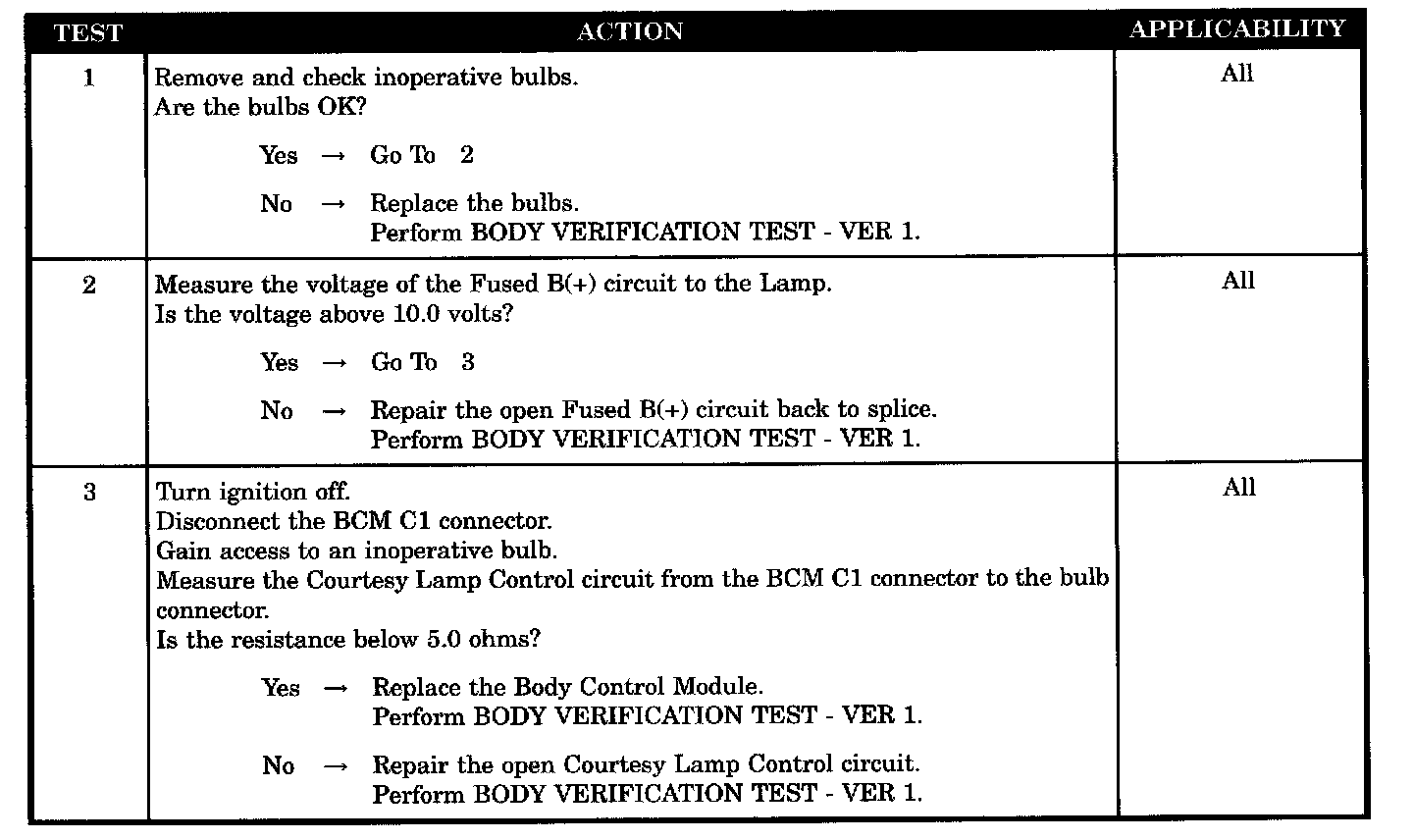

Tests 1 - 3:





SYMPTOM
I/P COURTESY LAMPS INOP

POSSIBLE CAUSES
- BCM I/P courtesy lamps INOP
- Bulbs open
- Open fused B(+)
- Courtesy lamp control circuit open
