Heated Seat Switch Illumination Lamp Inoperative

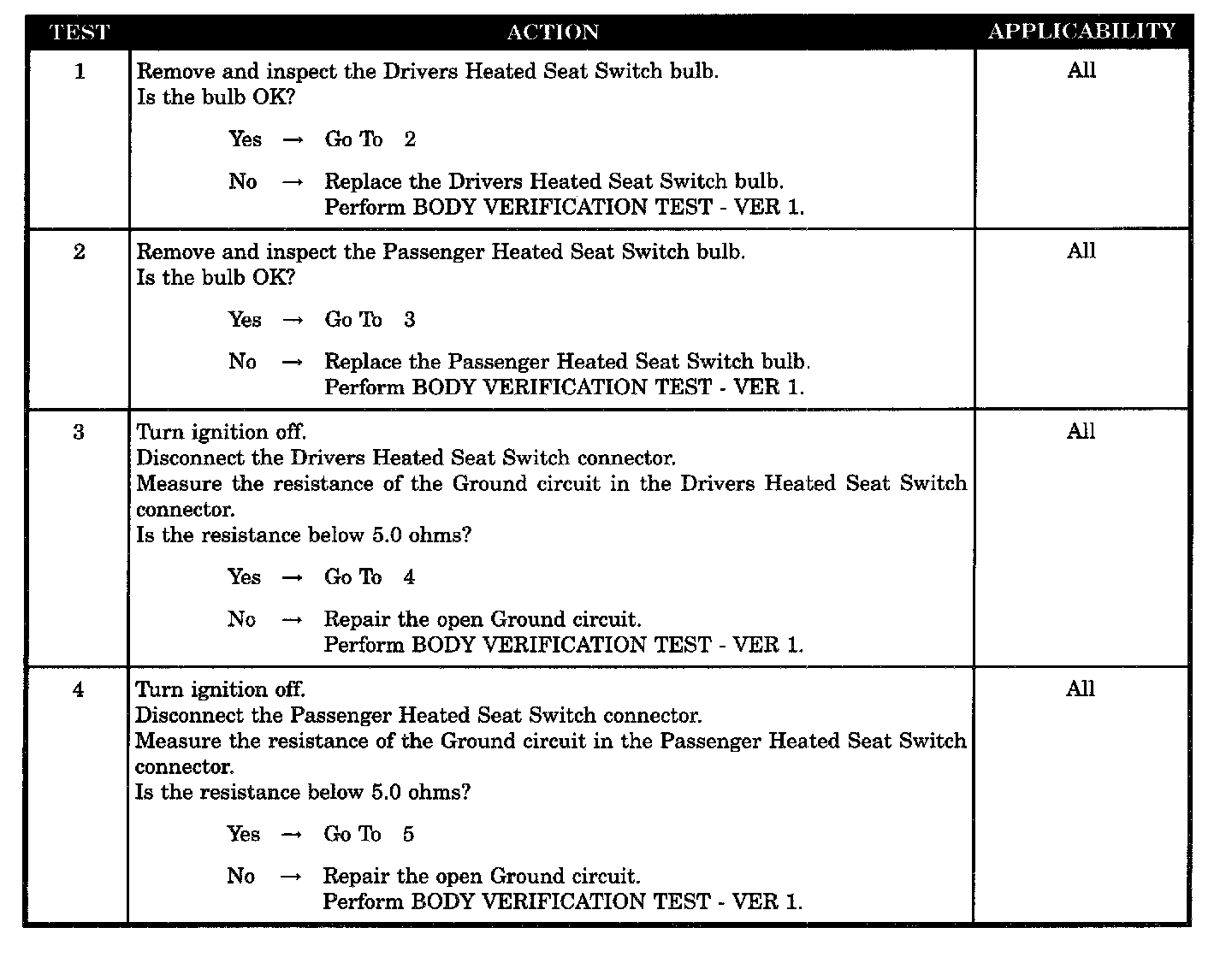

Tests 1 - 4:

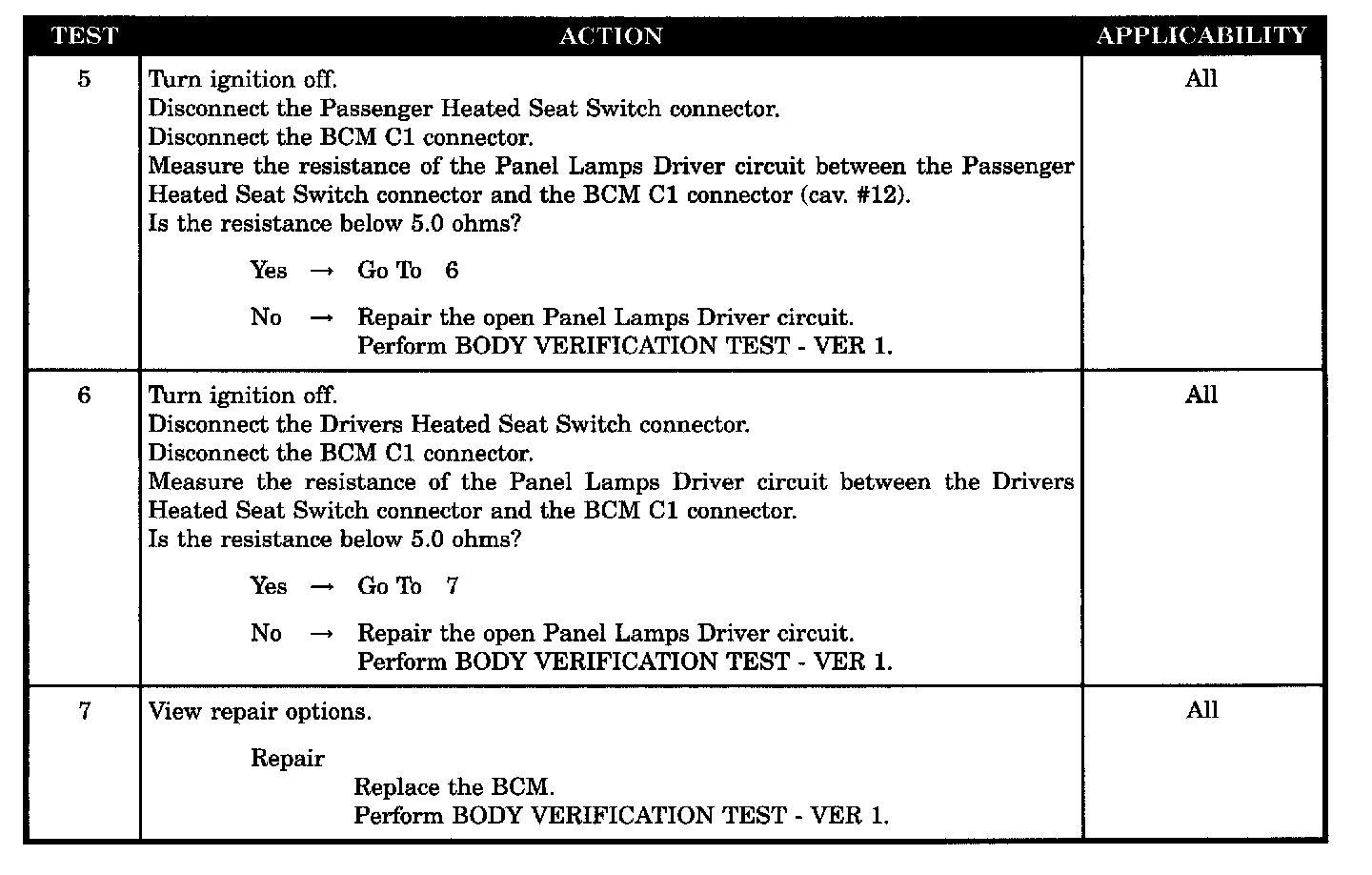

Tests 5 - 7:

SYMPTOM
HEATED SEAT SWITCH ILLUMINATION LAMP INOPERATIVE

POSSIBLE CAUSES
- Drivers heated seat switch bulb open
- Passenger heated seat switch bulb open
- Open ground circuit (drivers side)
- Open ground circuit (passenger side)
- Panel lamps driver circuit open (passenger side)
- Panel lamps driver circuit open (drivers side)
- BCM
