Courtesy Lamps On at All Times (Exc. Front Door Courtesy Lamps)

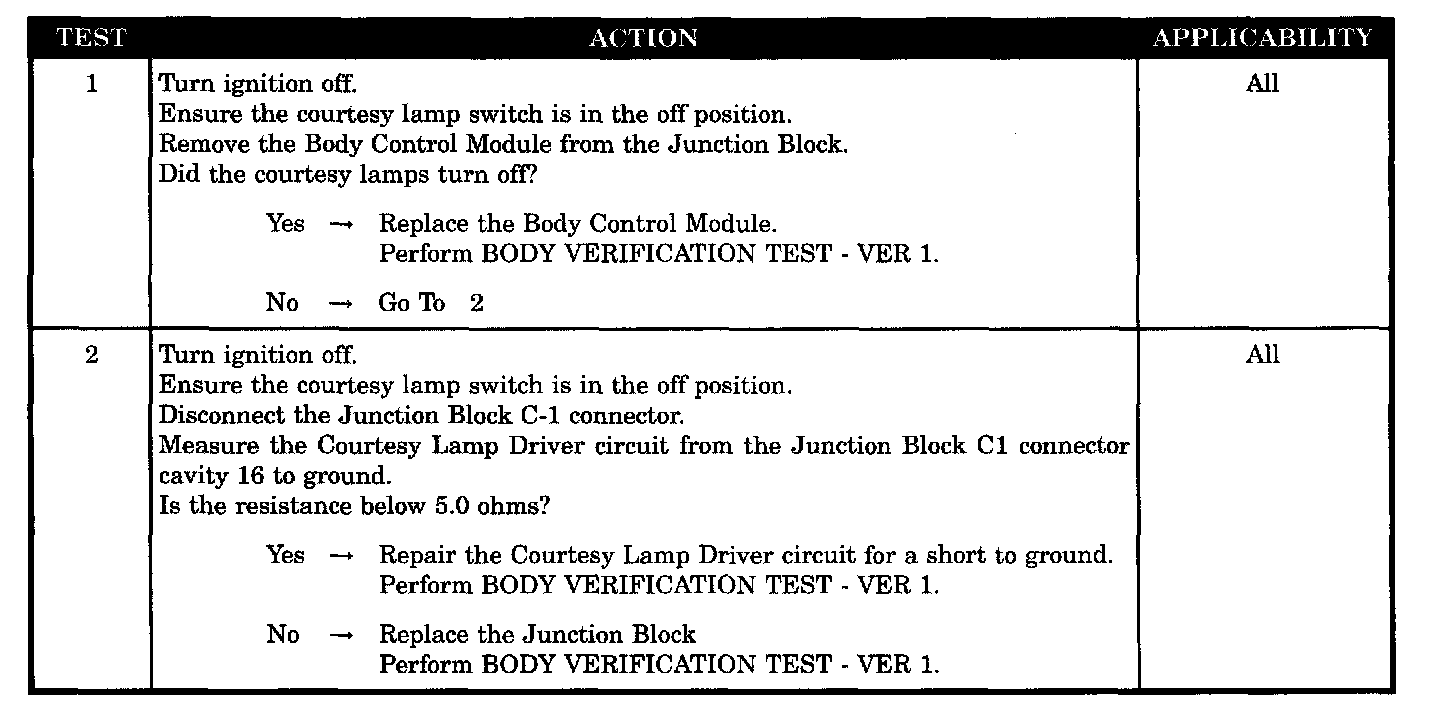

Tests 1 - 2:
SYMPTOM
COURTESY LAMPS ON AT ALL TIMES (EXCEPT BOTH FRONT DOOR COURTESY LAMPS IF EQUIP)
POSSIBLE CAUSES
- Junction block
- BCM, courtesy lamps stay ON
- Courtesy lamp driver circuit shorted to ground
