Ash Tray Lamp Inoperative

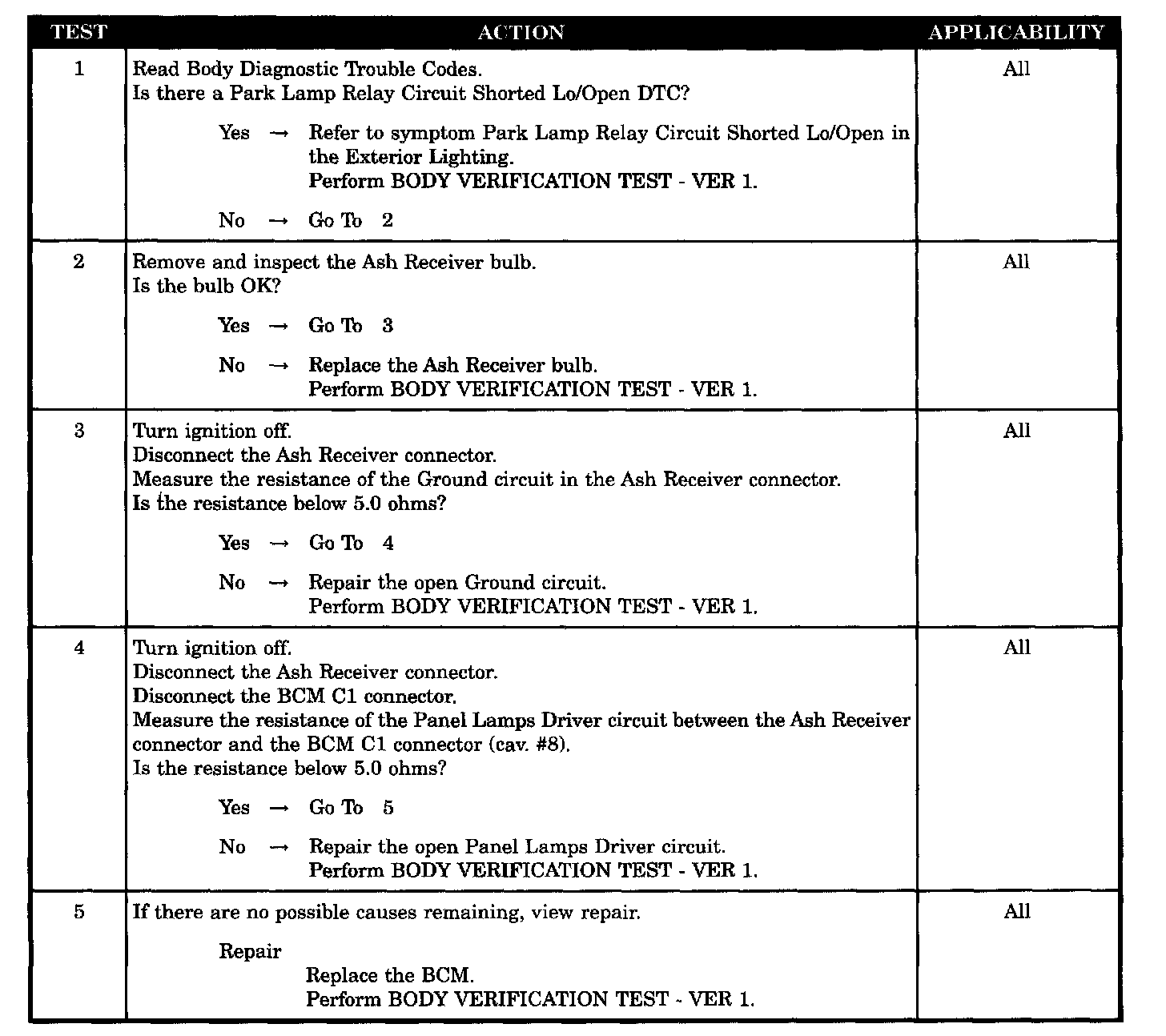

Tests 1 - 5:





SYMPTOM
ASH TRAY LAMP INOPERATIVE

POSSIBLE CAUSES
- BCM DTC
- Ash receiver bulb open
- Open ground circuit
- Panel lamps driver circuit open
- BCM
