All Courtesy Lamps Inoperative

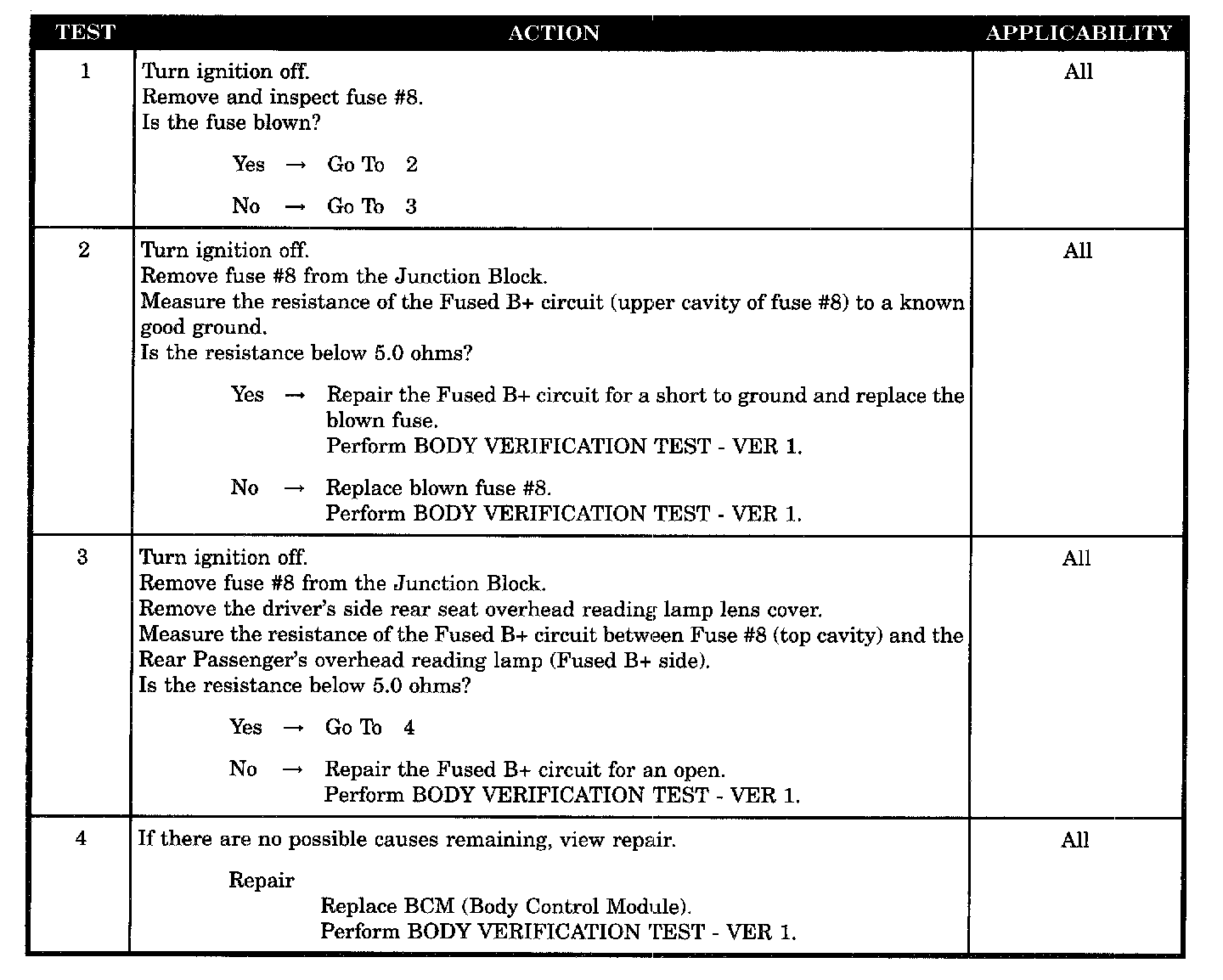

Tests 1 - 4:





SYMPTOM
ALL COURTESY LAMPS INOPERATIVE

POSSIBLE CAUSES
- Fuse # 8 blown circuit not shorted
- Fused B+ circuit open
- Fused B+ circuit shorted to ground
- BCM
