PCM Messages Not Received By Mic

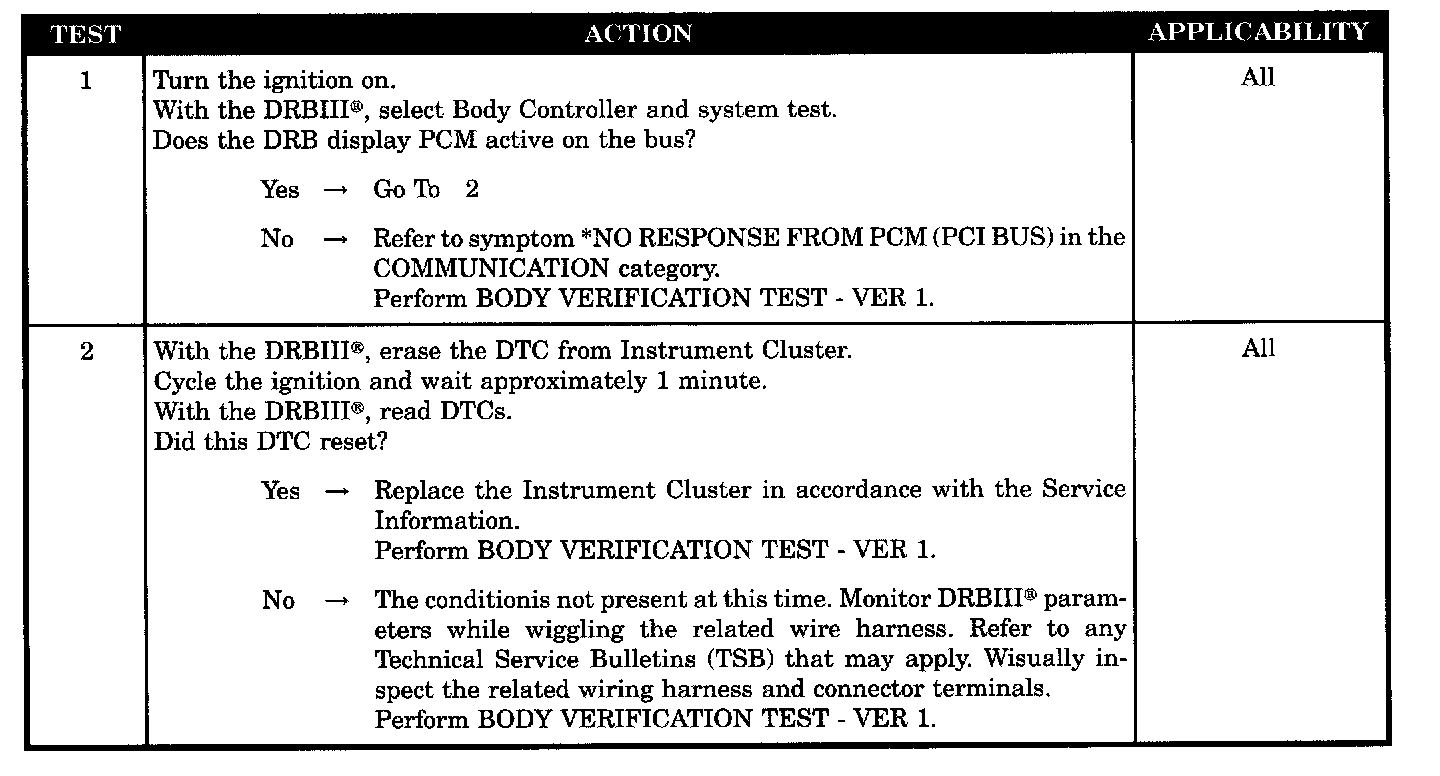

Tests 1 - 2:

SYMPTOM
PCM MESSAGE NOT RECEIVED BY MIC

WHEN MONITORED
With the ignition ON.

SET CONDITION
The Instrument Cluster detects no PCM bus messages received for 6 seconds.

POSSIBLE CAUSES
- No response - PCI BUS - PCM
- Intermittent condition
- Instrument cluster
