No PCI BUS Communication

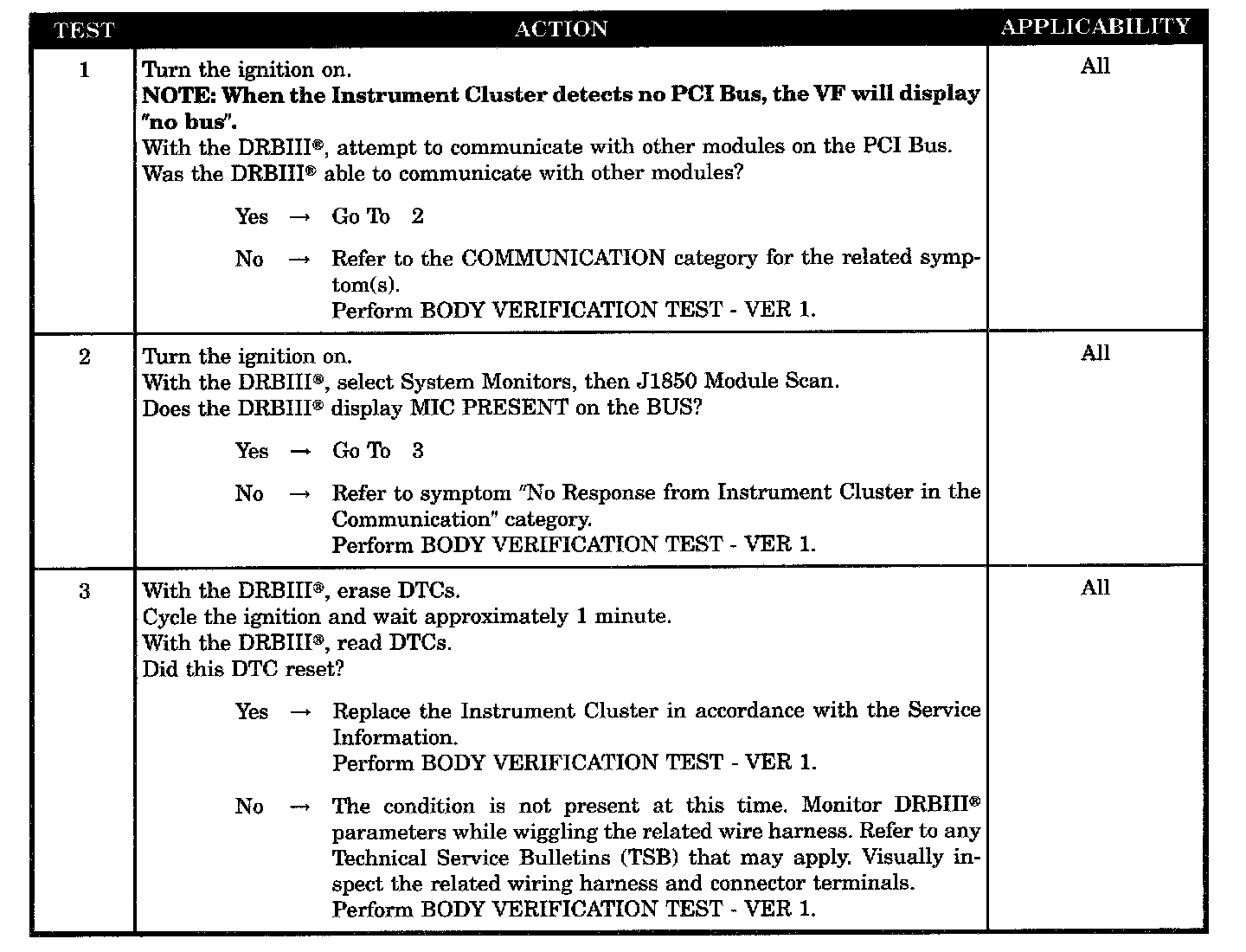

Tests 1 - 3:





SYMPTOM
NO PCI BUS COMMUNICATION

POSSIBLE CAUSES
- No response - PCI BUS
- Intermittent condition
- No response - PCI BUS - instrument cluster
- Instrument cluster
